BMW Heater Core Replacement and Multiple Fault Code Repair

The owner had two problems. The cabin was barely warming up even with the heater set to maximum. In Singapore, a cold cabin is not uncomfortable the way it would be in Europe, but wet-weather driving and overnight rain make a working heater circuit important.

At the same time, several warning lights had come on: the ABS warning, TPMS indicator, and traction control light were all lit up. Each of those systems is interconnected, so a fault in one can trigger warnings in others. The owner wanted everything looked at in one visit rather than chasing symptoms one by one.

We connected BMW ISTA dealer-level diagnostics and ran a full vehicle scan. The fault log showed:

• Heater core flow fault: coolant temperature at the heater outlet was significantly lower than the engine coolant temperature, indicating a blockage or degraded core.
• ABS wheel speed sensor fault: one sensor was sending an out-of-range signal.
• RDCI fault codes 48069E, 48077D, 48077E, 48077F: TPMS module communication issues, secondary to the ABS sensor fault and a TPMS module that needed resetting.
• TCM communication fault: the transmission control module was losing contact with the ABS network due to the underlying sensor fault.

Solving the root faults clears the cascade. The RDCI and TCM warnings were consequences, not separate failures.

We addressed all faults in the one visit.

Heater core:

• Drained the cooling system.
• Removed the dashboard and HVAC unit to access the heater core.
• Replaced the blocked heater core heat exchanger with a new unit.
• Refilled with fresh BMW-spec coolant and bled the cooling system.
• Confirmed cabin heating output at maximum before refitting the dashboard.

Electrical faults:

• Replaced the faulty ABS wheel speed sensor.
• Reset the TPMS (RDCI) module.
• Cleared the TCM communication fault (which resolved once the ABS sensor was feeding correct data).
• Confirmed all fault codes cleared on ISTA re-scan.
• Road tested to confirm ABS, TPMS, and traction control were all functioning normally.

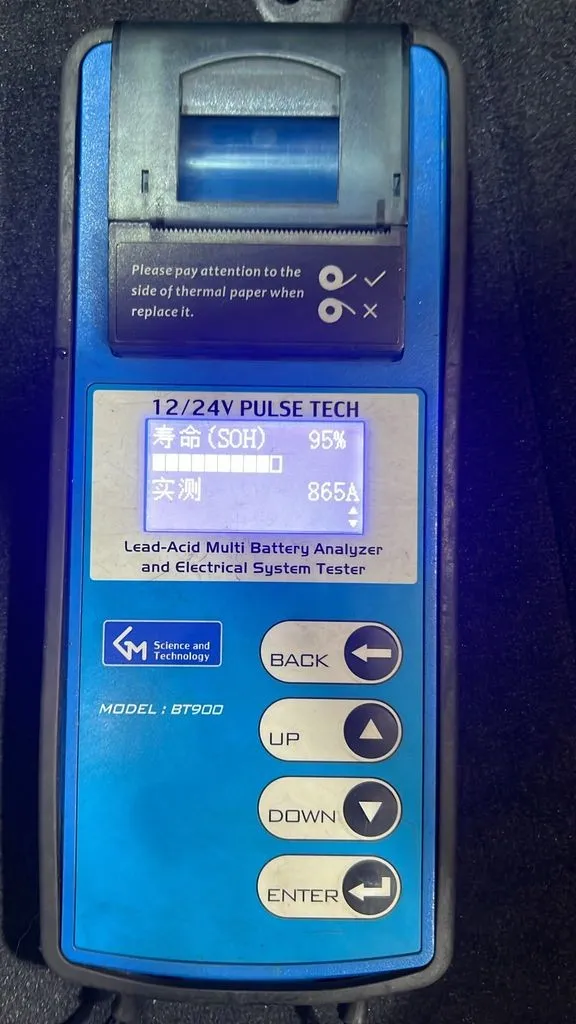

Battery check: we also ran a battery health test as part of the visit. The battery was in acceptable condition and was flagged for monitoring.

The car was returned with all warning lights off and the cabin heating confirmed. Electrical repairs carry at least 6 months warranty.

A BMW heater core replacement is a labour-intensive job because accessing the core requires removing the dashboard and HVAC unit. Parts cost is moderate but labour hours are significant, and the total depends on the model and how many associated systems need repair, so we quote after diagnosis.

The key saving on this job was diagnosing all faults in one visit: the RDCI and TCM warning lights were consequences of the ABS sensor fault, not separate failures. Treating each warning light as an independent problem would have meant multiple visits and multiple diagnostic charges.

We quote before starting any work.

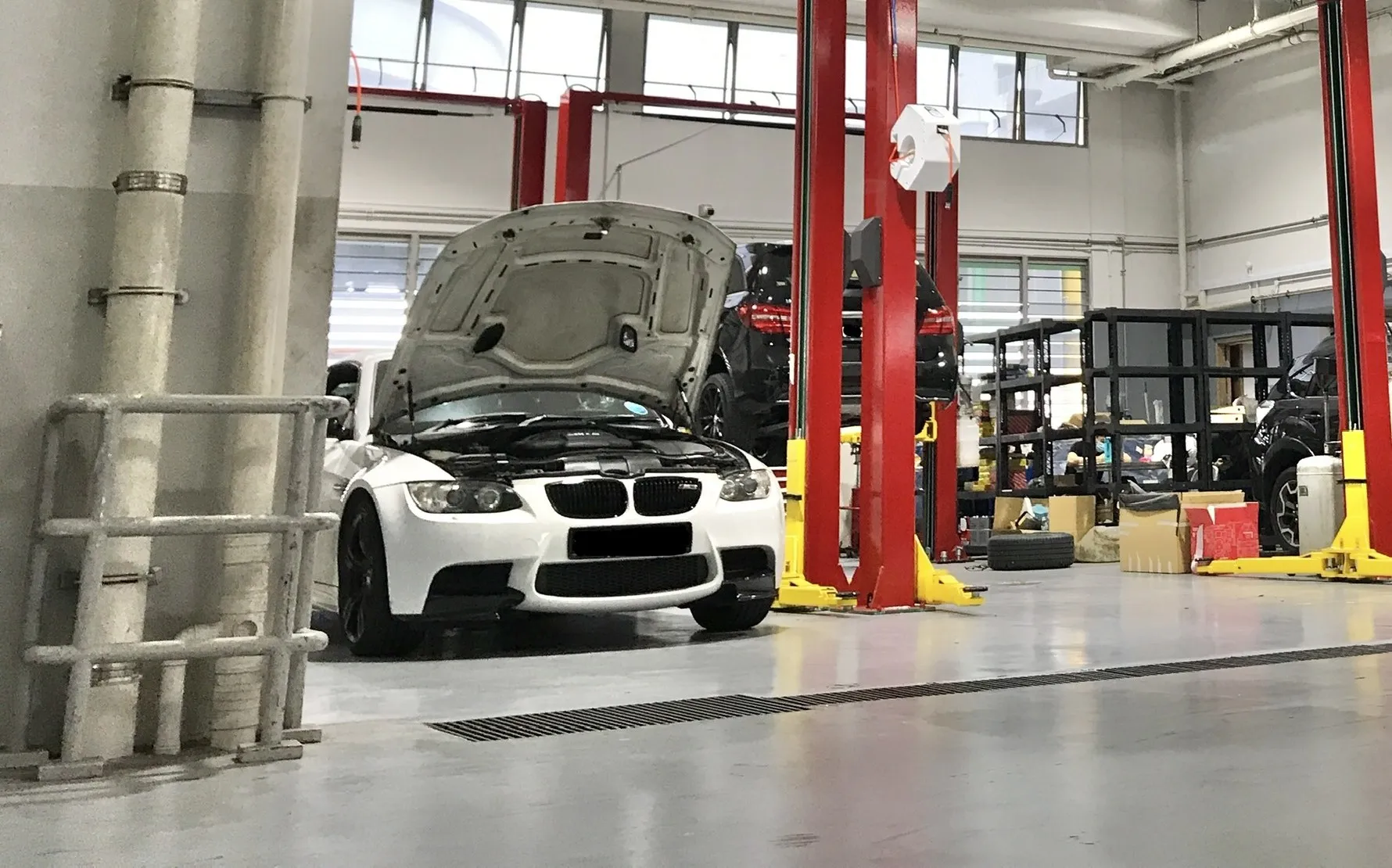

This BMW 3 or 5 Series (Heater core replacement and multiple electrical fault repair) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For BMW, we use dealer-level ISTA diagnostics. The work is backed by a warranty of at least 6 months. We hold a 4.9★ rating from 1,775+ Google reviews.
