A BMW X5 came in at 122,402km with cracked control arm bushes on both sides and a leaking turbo air hose. The inspection report documented the faults: both control arm bushes cracked, both lower arm bushes cracked, and the turbo air hose leaking oil.
Job completed: September 2026
| Car | BMW X5 |
|---|---|
| Symptom | Suspension and turbo air hose faults found on inspection |
| Fault found | Cracked control arm bushes on both sides; cracked lower arm bushes on both sides; turbo air hose to housing leaking oil |
| Repair done | Control arm replaced both sides, lower arm with bush replaced both sides, turbo air hose to housing replaced, wheel alignment |
| Parts | Quality control arms, lower arms and turbo air hose |
| Time taken | Timeline confirmed at booking |
| Cost | $3,475 before GST (itemised quote approved before work began) |
| Warranty | Inspection report issued before work; road tested before handover |
The owner of a BMW X5 at 122,402km came to us for inspection. At this mileage on an X5, suspension components and under-bonnet hoses are both worth inspecting.

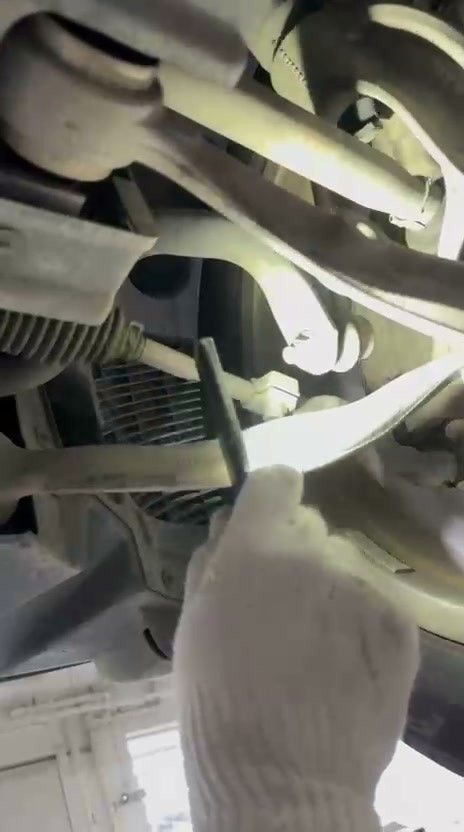

We carried out a full inspection with the car on a lift. A formal inspection report was produced listing every fault found, with the recommended work itemised before any repair started.
The BMW X5 is a large SUV with a weight and performance combination that puts meaningful demand on its suspension and drivetrain. The front suspension uses separate control arms and lower arms, each with rubber bushings that absorb road impact.
At high mileage, the rubber bushings degrade. A cracked bushing does not always cause an obvious symptom early on; it can simply make the car feel slightly less settled over bumps. The effect on tyre wear and steering precision builds gradually.
Turbocharged BMW engines use air hoses that connect the turbo compressor to the intake system. These hoses run hot and under pressure. Oil or boost leaks from a degraded hose affect performance.
We carried out a full mechanical inspection with the car on a lift. A formal inspection report was produced covering the suspension and under-bonnet area.
The inspection report documented three faults:
The inspection report was shared with the owner and all items were explained before an itemised quote was prepared.

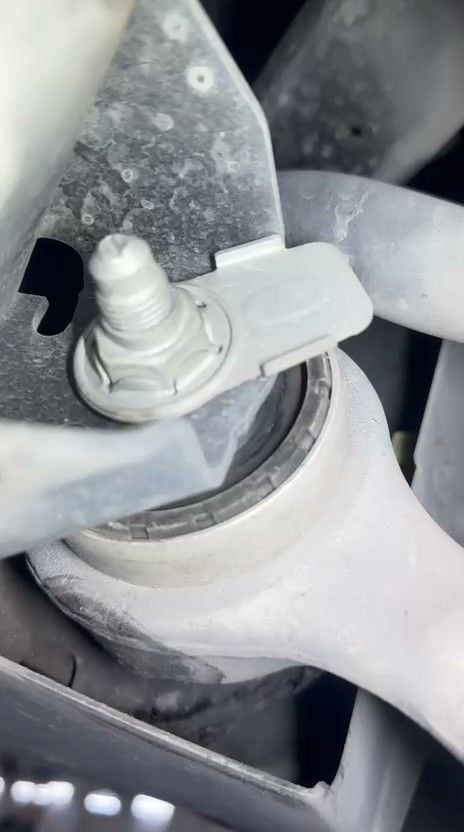

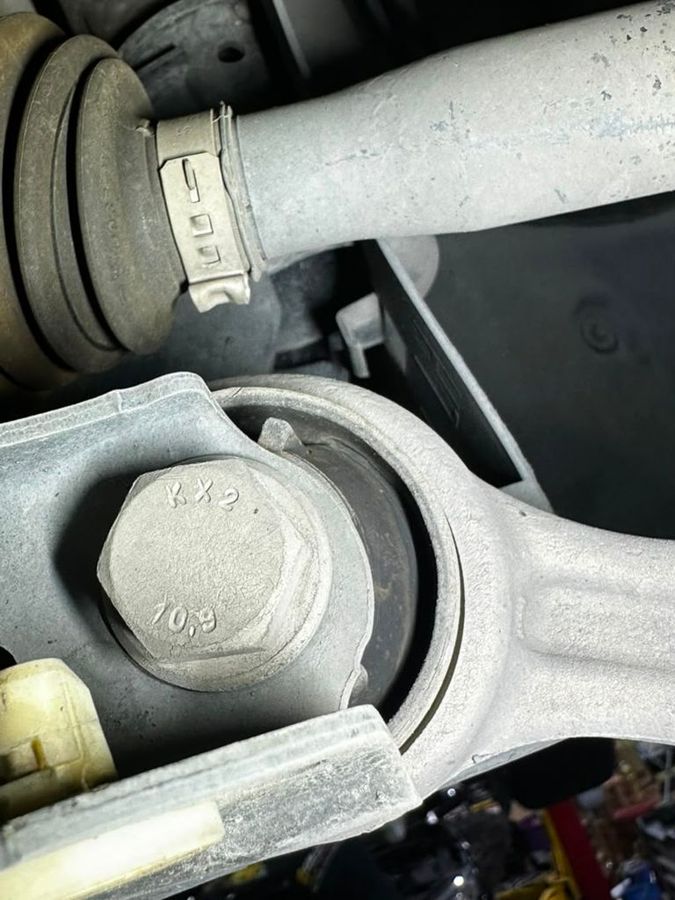

Rubber bushings in the suspension are designed to absorb vibration and small impacts while keeping the geometry of the wheel within tolerance. Under repeated load in Singapore conditions, speed bumps, kerbs and sustained heat cause the rubber to harden and eventually crack. On this X5, the front suspension bushings had cracked on both sides and were replaced.

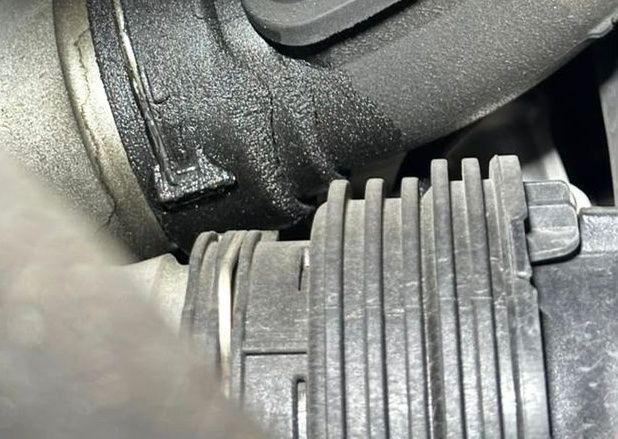

For the turbo air hose, the combination of heat cycles from the engine and the boost pressure the hose carries will eventually cause the material to degrade. A small leak can appear as rough running or a fault code before it becomes obvious to the driver. Left unattended, a larger leak can cause more significant running issues.
We completed all four items from the inspection report.
The car was road tested to confirm normal operation before handover.
Costs for suspension and hose work on a BMW X5 depend on the exact items needing replacement. On this X5, the itemised quote was:
Total: $3,475 before GST.
All items were agreed before work began. We only start once every item is approved.
As the car gets older, include a suspension bushing inspection at every major service. Cracked bushings do not always make an obvious noise early, but a visual inspection on a lift reveals cracks in the rubber that a road test alone will miss.
For turbo hoses, a smoke or boost-leak check is worth adding to a higher-mileage inspection. A small oil stain around a hose joint is an early sign worth catching before a full hose failure.
When suspension components are replaced, always follow up with a wheel alignment. Replacing arms and bushes shifts the geometry, and driving on an unchecked alignment will wear the tyres unevenly.
This BMW X5 (front suspension repair: control arm and lower arm replacement, turbo air hose repair, wheel alignment) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For BMW, we use dealer-level ISTA diagnostics. We hold a 4.9★ rating from 1,790+ Google reviews.
WhatsApp us your concern and mileage. We use ISTA to read your BMW's fault memory and inspect mechanically before quoting anything.
On this X5, replacing both front control arms and both lower arms with bush, plus the turbo air hose and alignment, came to $3,475 before GST. The exact cost depends on the model and the number of items that need replacing. WhatsApp us your mileage and symptoms and we will quote after inspection.
Yes. We have ISTA, BMW's own diagnostic system, available for BMW work. For suspension and hose repairs, we carry out a mechanical inspection and road test after the work. ISTA is used to read and clear any stored fault codes when present.
Yes, provided the workshop uses the correct diagnostic tools and quality parts. We use ISTA for BMW diagnostics and source quality components for each job. The inspection report is produced before quoting so you know exactly what is wrong and why before any money changes hands.
Common signs are a subtle change in how the front of the car handles over bumps, or uneven front tyre wear. The most reliable check is a visual inspection of the rubber bushing on a lift. Cracks are visible before any noticeable symptom on the road. We include a suspension check in our pre-work inspection.
