This Honda HR-V came in for a routine service. Once we went through the car properly, we found engine oil leaks that needed the valve cover and five oil seals replaced, a cracked fan belt, and worn lower arms and stabilizer links. Everything was fixed in two days.
Job completed: July 2026
| Car | Honda HR-V (Vezel), VTEC petrol |
|---|---|
| Symptom | In for a routine service; our check found engine oil leaks, a cracked fan belt and worn suspension parts |
| Fault found | Engine oil leaking: valve cover assembly with cap, VTEC oil seal with o-ring, flywheel oil seal, torque converter oil seal and both driveshaft oil seals due for replacement. Fan belt cracked. Lower arms with ball joints and two stabilizer links worn. |
| Repair done | New original valve cover assembly with cap, new VTEC oil seal and o-ring, flywheel oil seal, torque converter oil seal, driveshaft seals replaced, new fan belt, lower control arms x2 replaced, stabilizer links x2 replaced, full engine oil and filter service |
| Parts | Original Honda valve cover assembly; quality oil seals; replacement control arms and stabilizer links |
| Time taken | 2 days |
| Cost | $3,400 nett with GST after discount |
| Handover | Quality workmanship |
The Honda HR-V came in for its routine service, with an engine oil and filter change due.
As part of the service, our technician checked through the car. That check is where the oil leaks, the cracked fan belt and the worn suspension parts turned up.
The Honda HR-V with the VTEC engine is a popular and reliable family SUV. VTEC is Honda's variable valve timing system, which uses a dedicated oil pressure circuit to switch between cam profiles at different engine speeds.
Like all engines with a lot of rubber seals and gaskets, the HR-V VTEC becomes more seal-maintenance-intensive as mileage and years accumulate. Singapore's heat accelerates the hardening of rubber, which means seals that might last longer in a cooler climate start to weep earlier here.
We put the car on a hoist and inspected the engine and drivetrain systematically.

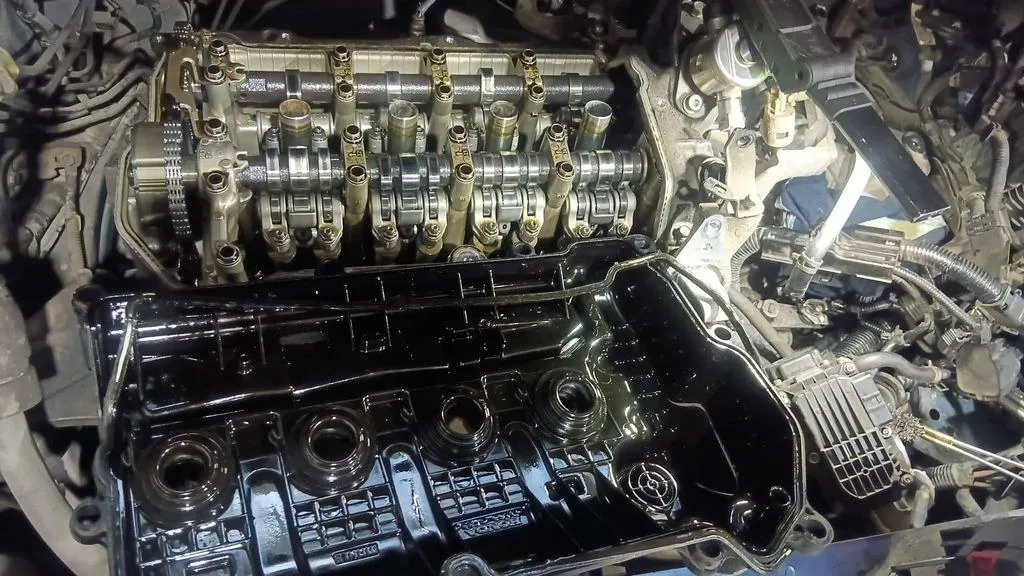

Engine oil was leaking. At the top of the engine, the valve cover assembly and its cap needed replacing. The VTEC oil seal and its o-ring were on the list too.
Lower down, four more seals needed replacing: the flywheel oil seal, the torque converter oil seal, and both driveshaft oil seals.
The fan belt was cracked. A cracked belt can snap without warning, and the alternator stops charging when it does.

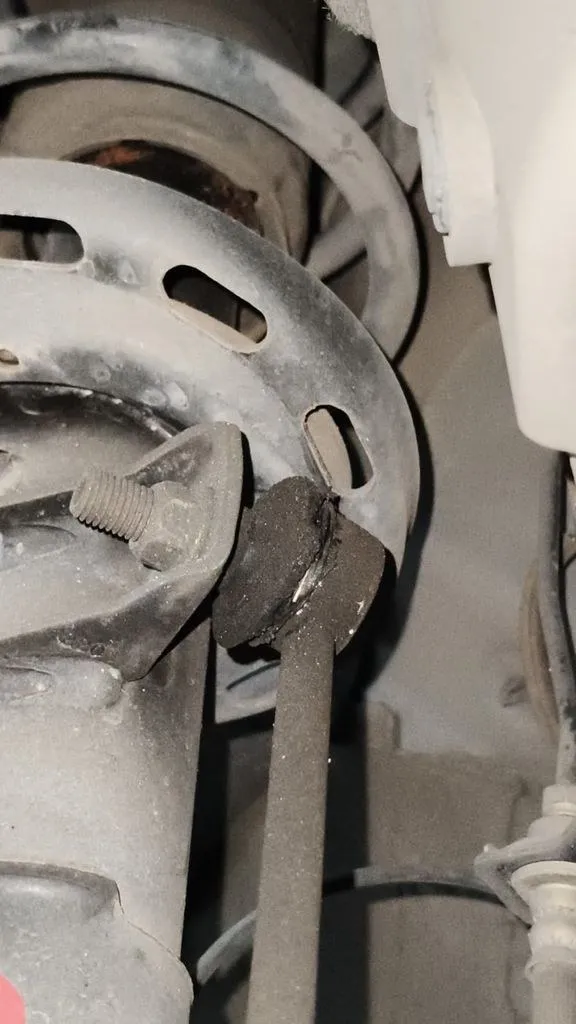

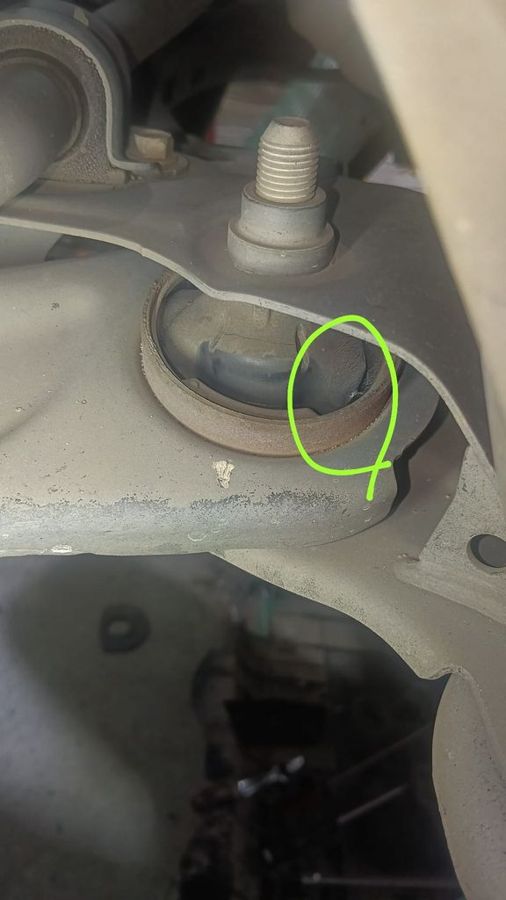

Both lower arms, with their ball joints, and two stabilizer links were worn.
We sent the owner a full breakdown with photos, explained each fault and quoted for approval before any work began.
Rubber seals and gaskets around the engine and transmission age together. They go through the same heat cycles every day, and Singapore's climate adds sustained heat stress from day one.
The valve cover gasket, the VTEC seal, the flywheel seal and the torque converter seal are all rubber parts exposed to engine heat and oil. When one has aged to the point of leaking, a proper inspection often finds others in a similar state, as it did on this car.
Dealing with them all in one visit, rather than one at a time, saves repeat labour and repeat visits.

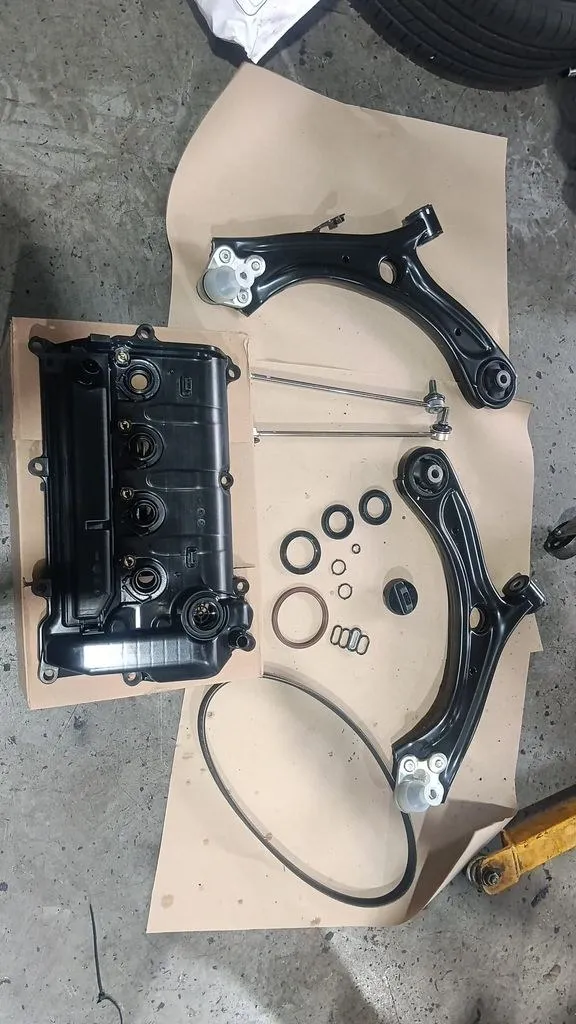

With the owner's go-ahead, our team worked through all the identified faults over two days.
Engine oil circuit:
Drivetrain seals:
Belt and suspension:
Battery, brakes and tyres: checked and in good condition, no change needed.
The items came to $3,368 before GST, $3,671 with GST. With the discounts applied, the final agreed amount was $3,400 nett, GST included. When we checked in a week later, the owner said the car was OK.
From our team's record of this job. Number plates are pixelated.
The cost of a Honda HR-V oil seal repair depends on how many seals need replacement and what else is found during the inspection. This visit covered five separate oil seals, a valve cover assembly, a fan belt, control arms and two stabilizer links alongside the oil service, which is a comprehensive scope of work.
The final agreed amount was $3,400 nett, with original Honda parts used for the valve cover and quality seals throughout. Doing all the seals in one visit saves on labour compared to returning for each one separately.
There is no perfect way to prevent rubber seals from aging. What you can do is catch them early and deal with them on your terms rather than waiting for a roadside breakdown or an oil-low warning.
Servicing your Honda at regular intervals and asking the workshop to inspect the engine and drivetrain from underneath is the most useful habit. Oil on the underside of the car is something the owner rarely sees but a proper workshop inspection will find immediately.
Fan belts are worth checking at every service. A cracked belt costs much less to replace than the secondary damage from a snapped one.
This Honda HR-V (multiple oil seal repair and fan belt replacement) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. We hold a 4.9★ rating from 1,836+ Google reviews.
WhatsApp us your HR-V year, mileage and what you are seeing or smelling. Oil leaks often come from more than one point, and the only way to know for sure is to inspect the car properly. We quote before we start.
The cost depends on how many seals need replacing and what else is found during inspection. This job, covering five oil seals, a valve cover assembly, fan belt, control arms and two stabilizer links plus an oil service, came to $3,400 nett. A single seal replacement is less. We inspect the car and quote before any work begins.
It is one of the seals in the oil circuit of Honda's VTEC valve timing system. When it ages, engine oil can seep past it. On this HR-V it was one of the parts we replaced to stop the oil leaks.
The rubber seals throughout the engine and drivetrain age at similar rates because they go through the same heat cycles every day. When one fails, others of similar age are often close behind. Inspecting the whole car when one seal is found leaking avoids multiple visits for the same underlying issue.
It depends on the engine. The belt usually drives the alternator, so the battery stops charging. On engines where it also drives the water pump or a hydraulic power steering pump, you lose those as well, and the engine can overheat. Either way, it can leave you stranded. Replacing a cracked belt is cheap; the alternative is not.
A small, slow leak may not stop the car immediately, but driving with multiple oil leaks means the oil level drops at an accelerated rate. If it drops too far, the engine runs without full lubrication. Serious internal damage follows quickly. The right move is to get the leaks identified and fixed before the oil level becomes critical.
This job took two days. The exact time depends on how many seals need replacement and whether parts are in stock. Jobs that involve the flywheel and torque converter seals require removing more components, which takes longer. We confirm a timeline when we know what the car needs.
