Honda Odyssey Oil Leak: Valve Cover, Driveshaft and VTEC Seals All Fixed in One Visit

This Honda Odyssey was leaving oil spots wherever it parked. We traced the leaks to the valve cover, the VTEC oil seal, the main pulley oil seal, both driveshaft seals and the torque converter and flywheel seal, and fixed them all in one go.

Job completed: July 2026

Honda Odyssey raised on a workshop lift for oil seal replacement at our Singapore workshop

Job completed: July 2026. Last updated: September 2026. Written from our workshop job records and photos; technical details are generalised where the records do not confirm them.

CarHonda Odyssey, petrol MPV
SymptomOil dripping under the car at multiple points, oily film on the engine underside
Fault foundOil leaking; the quoted fix covered the valve cover assembly, the VTEC oil seal and o-ring, the main pulley oil seal, both driveshaft oil seals, the auto cooler gaskets and the torque converter and flywheel oil seal
Repair doneReplaced valve cover assembly, VTEC oil seal and o-ring, main pulley oil seal, driveshaft oil seal pair, torque converter and flywheel oil seal and auto cooler gaskets; refilled transmission oil and engine oil with filter
PartsOEM-grade replacement seals and gaskets
Time takenTimeline confirmed when you book
CostAbout $3,400 nett with GST
WarrantyReady for collection after the work

What the owner reported

The owner of this Honda Odyssey noticed oil spots building up wherever the car parked. The underside was oily and wet, and the engine oil level was dropping faster than it should between service intervals.

On an MPV that moves the family around every day, an oil leak is not something to ignore. Low oil pressure damages the engine. And on a Honda Odyssey, with its VTEC engine and automatic transmission, the oil system has more sealing points than a simpler car. The owner wanted every leak found and sorted in one visit, not chased one at a time across multiple trips.

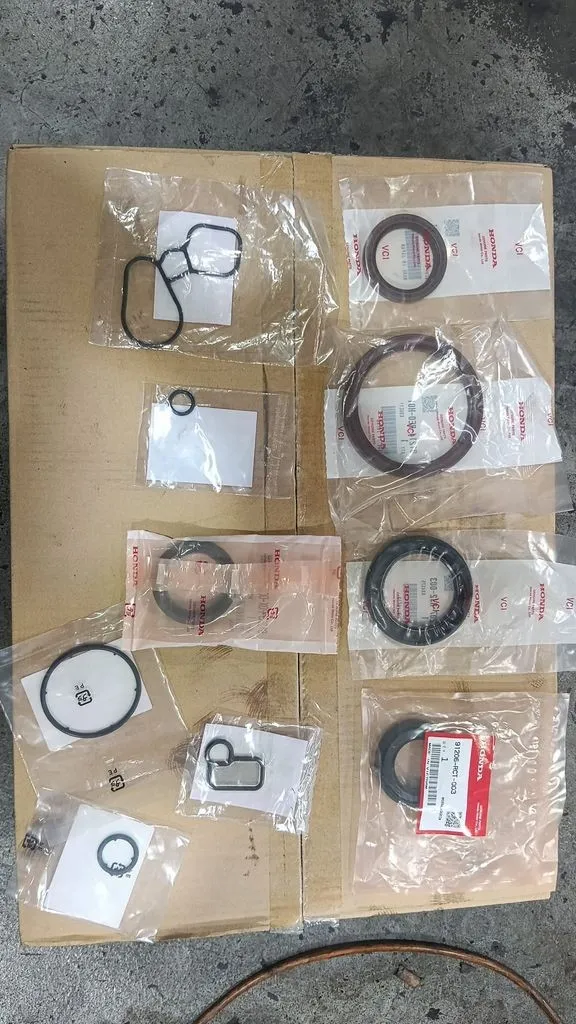

Replacement oil seals and gaskets laid out before fitting on a Honda Odyssey engine at our Singapore workshop

The car

The Honda Odyssey uses a petrol engine with VTEC variable valve timing and a conventional automatic transmission. These are robust units that last well into high mileage, but they carry multiple oil seals across the engine and drivetrain. The valve cover gasket seals the top of the engine. The VTEC oil seal and its o-ring help seal in the oil that works the VTEC system. The main pulley oil seal seals the crankshaft nose. The driveshaft oil seals sit where the driveshafts enter the transmission casing, and the auto cooler gaskets seal the transmission cooler lines.

All of these are rubber or composite seals. In Singapore's heat they harden and shrink over time. Several can start weeping at similar mileage intervals, which is exactly what happened here.

How we diagnosed it

The owner brought the Odyssey in for an oil leak check, and our team inspected it the same afternoon.

The leak fix we quoted covered a new valve cover assembly, the VTEC oil seal and its o-ring, the main pulley oil seal, both driveshaft oil seals where the shafts enter the gearbox casing, the auto cooler gaskets on the transmission cooler lines, and the torque converter and flywheel oil seal between the engine and the gearbox.

We sent the owner an itemised written quote the same afternoon, before any work began. The scope was clear: six sealing points, all serviceable, all fixable in one visit.

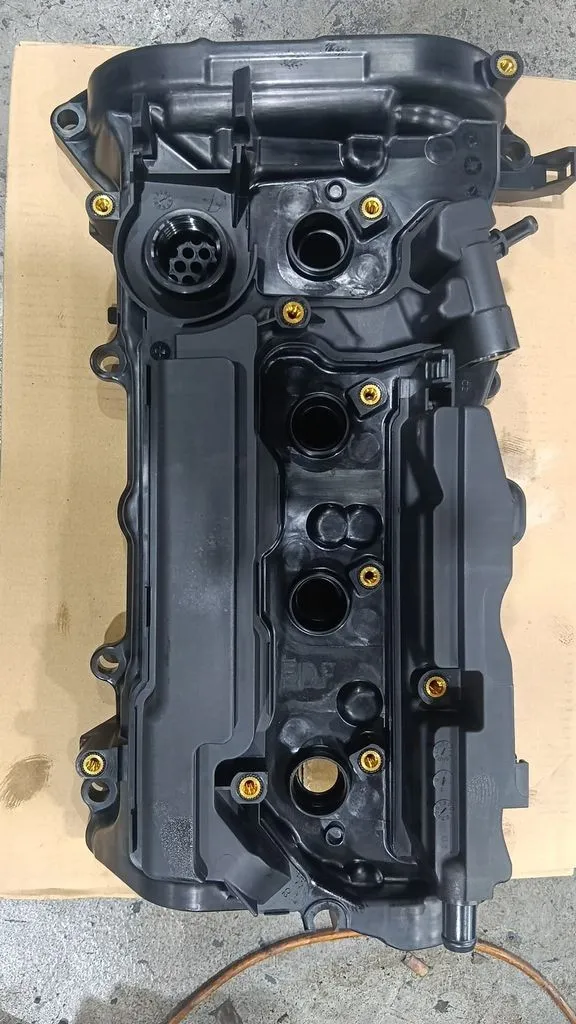

New valve cover assembly ready to be fitted on a Honda Odyssey during oil seal repair in Singapore

Why this happens on a Honda Odyssey

Rubber seals and gaskets age in heat. Singapore traffic keeps a petrol engine running hot, and the Odyssey's engine bay is a compact, warm environment. Over the years the rubber hardens, loses its elasticity and starts to shrink slightly away from the mating surfaces. Oil finds those gaps.

The VTEC system adds one more sealing point that is specific to Honda engines. VTEC runs on engine oil pressure, and once its seal and o-ring harden with age, oil can get past them. The driveshaft seals fail by a similar mechanism: the lip seal wears against the rotating shaft and eventually cannot hold oil pressure at the gearbox side.

When a car has several rubber seals of similar age, they tend to go at similar times. Finding and fixing all of them in one visit is the economical approach.

What we did

With the owner's go-ahead we addressed every leak source at once.

  • Removed and replaced the valve cover assembly with a new gasket and plug seals.
  • Replaced the VTEC oil seal and its o-ring.
  • Removed the crankshaft pulley and replaced the main pulley oil seal.
  • Pulled both driveshafts and replaced the driveshaft oil seals at the transmission casing.
  • Replaced the torque converter and flywheel oil seal.
  • Replaced the auto cooler gaskets on the transmission cooler line connections.
  • Refilled with fresh transmission oil to the correct level.
  • Did a full engine oil and filter change so the car went home with clean oil through the freshly sealed system.

All parts were OEM-grade replacement seals and gaskets. The car was ready for collection after the work. Three days later the owner told us it was so far so good, with the car driven every day.

Before and after

Before

  • Oil spots under the car at multiple points
  • Oily, wet engine underside
  • Engine oil level dropping between services
  • An oil leak that needed several seals and gaskets replaced

After

  • Every seal and gasket replaced in one visit
  • Owner reported so far so good after three days of daily driving
  • Fresh engine oil and transmission oil

What Honda Odyssey oil seal replacement costs in Singapore

What a multi-seal repair costs depends on which seals are leaking and how many need replacing. This job, covering the valve cover assembly, VTEC oil seal and o-ring, main pulley seal, both driveshaft seals, the torque converter and flywheel oil seal and the auto cooler gaskets, plus transmission oil and a fresh engine oil and filter change, came to about $3,400 nett with GST.

What determines the cost is the number of leak sources. A single valve cover gasket is a small job. When several seals have aged together, it makes sense to address them all in one visit rather than bringing the car back multiple times. With the car already on the hoist, fixing all the quoted seals at once saves significant labour cost compared to doing them one at a time.

We quote for exactly what is leaking, item by item, before any work begins.

How to avoid this

Oil seals cannot be made to last forever, but changing your engine oil on schedule is the most effective thing you can do. Dirty, degraded oil is harder on seals than fresh oil. Old oil also tends to be thinner and more prone to finding its way past a seal that is only slightly worn.

Checking your oil level every few weeks and noting if it drops faster than usual is also worth doing on a higher-mileage Odyssey. A slow drop over time usually means a seal is starting to weep somewhere. Catching it early means a smaller job; leaving it means the oil level drops to the point where engine wear begins.

If you notice fresh oil spots under the car, act quickly. Most oil seals on the Odyssey are accessible and the repair is straightforward when caught before the oil level gets dangerously low.

About the workshop

This Honda Odyssey (Engine oil seal and gasket replacement) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. We hold a 4.9★ rating from 1,815+ Google reviews.

When to get your Honda Odyssey checked for oil leaks

Oil leak under your Honda? Get it checked before the damage spreads.

WhatsApp us your car model, year, mileage and a photo of where the oil is pooling. We will tell you what is likely leaking and what it costs before any work begins. Every repair is road tested and verified dry before you collect.

WhatsApp us - oil leak check and quote

Honda Odyssey oil seal repair: common questions

How much does it cost to fix oil leaks on a Honda Odyssey in Singapore?

It depends on which seals are leaking. A single seal is a smaller job. Replacing several at once, as in this case (valve cover, VTEC seal, main pulley seal, driveshaft seals, torque converter and flywheel seal and cooler gaskets), came to about $3,400 nett with GST. We inspect and quote for exactly what is leaking before any work begins.

Why is my Honda Odyssey leaking oil from multiple places?

On a higher-mileage Odyssey, rubber seals and gaskets of similar age tend to harden and fail at around the same time. The valve cover gasket, VTEC oil seal, crankshaft seal and driveshaft seals all sit in a hot engine bay and age together. It is common to find several leaking on one visit.

Is it safe to drive a Honda Odyssey with an oil leak?

Only in the short term, and only if the oil level stays correct. If the leak drains the oil low, the engine loses lubrication and can be damaged. Check your oil level regularly if you notice a leak, and have it inspected soon. Running low on oil is far more damaging than the cost of the seals.

What is the VTEC oil seal on a Honda Odyssey?

VTEC is Honda's variable valve system, and it is worked by engine oil pressure. The VTEC oil seal and its o-ring help keep that oil sealed in. When they age and harden, oil can escape past them. On this Odyssey we replaced the seal and its o-ring together.

How long does oil seal replacement take on a Honda Odyssey?

This job covered six different sealing points. A single seal on an accessible location is far quicker. The time depends on which seals need replacing and how many work together.
