Porsche Macan Oil Leak: Tracing It to the Sump Gasket and Level Sensor

The owner brought in a Porsche Macan that was dropping oil. There were oil spots on the driveway after it sat overnight, and the car had started showing an oil level warning. There was also a faint burning smell on a longer drive, the smell of oil reaching a hot exhaust.

An oil leak on a Macan is not something to leave. The engine sits low and works hard in our heat, and if the oil level drops far enough you risk real engine damage. The owner wanted to know exactly where it was leaking from before spending money, which is the right instinct. Oil can travel along the underside of an engine, so the wet spot you see is rarely where the leak starts.

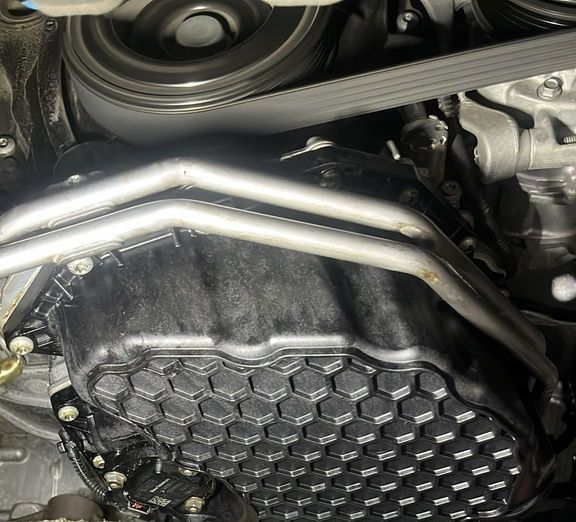

We put the Macan on the hoist and cleaned the underside so any fresh oil would show clearly. After a short run, the source was obvious: oil was weeping from the oil sump gasket, and the oil level sensor seal at the base of the sump was wet too.

We ruled the usual suspects out one by one. The valve cover and the cam covers higher up were dry, so the oil was not running down from above. The leak was coming from the sump itself. That meant the sump had to come off, which on a Macan means dropping the subframe and steering rack to reach it. Diagnosing the exact source first saved the owner from paying to chase the wrong gasket.

We did the job properly rather than trying to seal it from outside.

• Dropped the subframe and steering rack to reach the oil sump.
• Removed the sump, cleaned the mating faces, and fitted a new original Porsche sump gasket.
• Replaced the original oil level sensor and its seal.

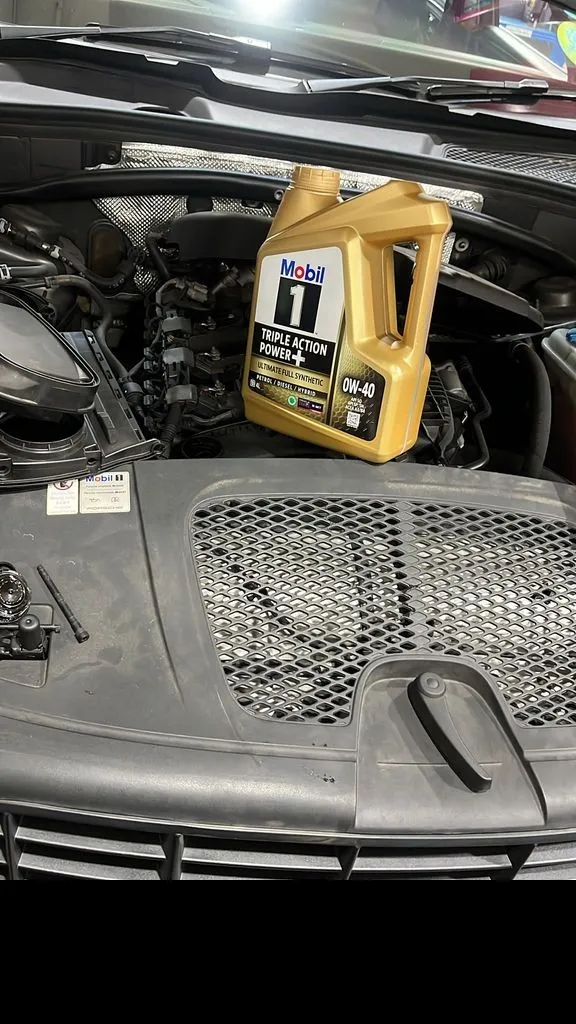

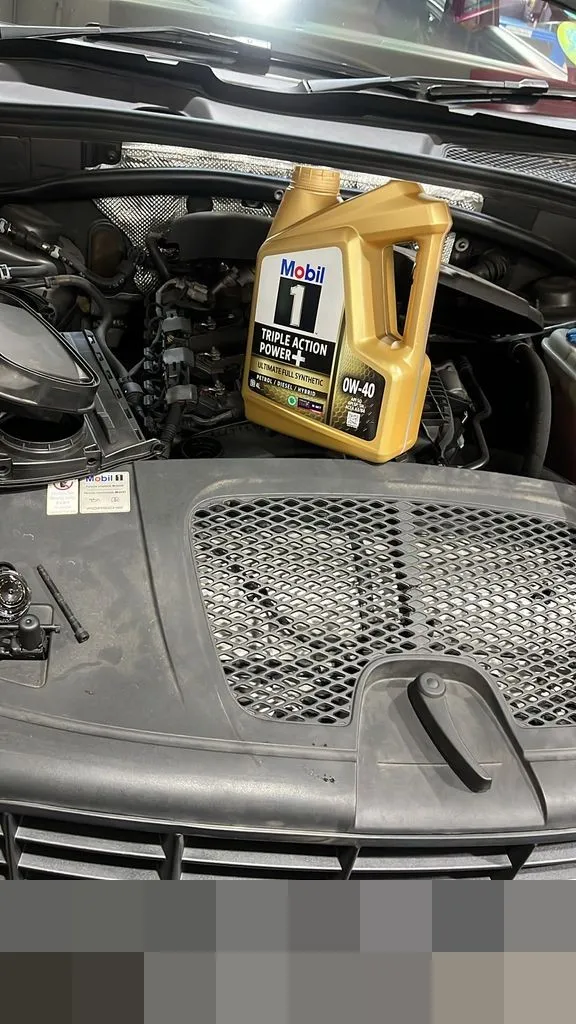

• Refilled with fresh Mobil 1 fully synthetic oil.
• Cleaned up the old oil residue, then ran the car and checked for leaks before road testing.

We sent the owner photos of the wet sump and the new parts along the way. The oil leak repair came to about $840. The car was also in for general servicing at the same visit, which we quoted separately.

On this Macan the sump gasket, oil level sensor and labour came to about $840. What another leak costs depends on where it is coming from, so we trace it first. This job was about $840, covering the original oil sump gasket, a new oil level sensor and the labour to drop the subframe and steering rack to reach the sump.

What moves the price is the source of the leak and how hard it is to reach. A simple valve cover gasket up top is cheaper. A sump gasket sits behind the subframe, so the labour is higher. A rear main seal is higher again because the gearbox has to come off. This is why we always pinpoint the exact source first, then quote, so you are not paying to chase the wrong part.
