Porsche Macan AWD Fault in Singapore: PTU Replacement and What We Found Underneath

This Porsche Macan came in with the dashboard showing no all-wheel system. We traced the fault to the PTU, replaced it along with worn engine mounts, the crankcase breather valve and a cracked exhaust hanger. Here is the honest account of what happened.

Job completed: July 2026

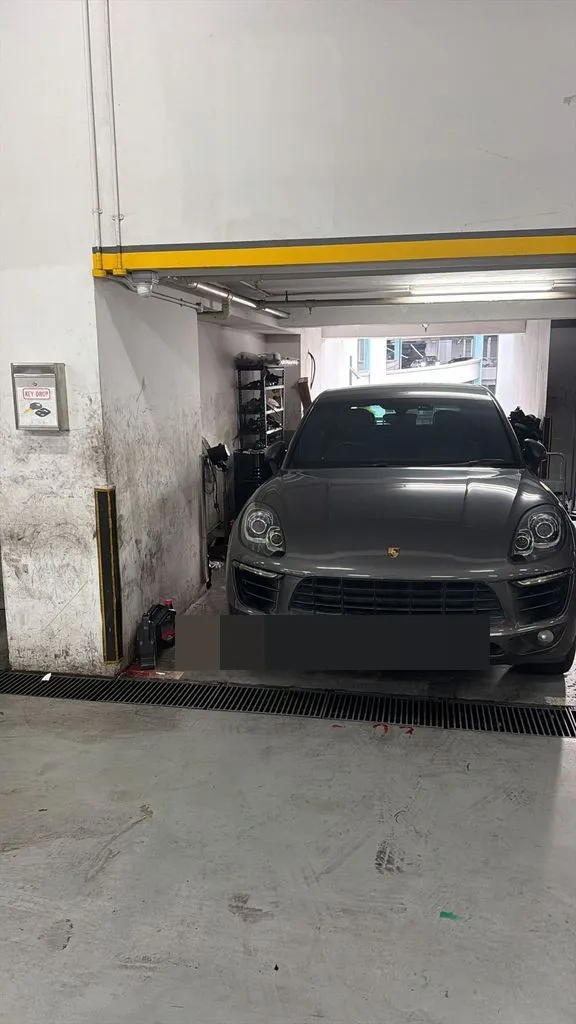

Porsche Macan arriving at our Singapore workshop for an AWD fault diagnosis and PTU replacement

Job completed: July 2026. Last updated: October 2026. Written from our workshop job records and photos; technical details are generalised where the records do not confirm them.

CarPorsche Macan
SymptomDashboard warning: No all-wheel sys. Only rear-wh drive. Adapted driving permitted
Fault foundPTU output shaft seal failed, fluid draining from the transfer case. Additional faults found on inspection: sunken engine mounts, crankcase breather valve due for replacement, cracked exhaust hanger rubber
Repair doneReplaced the PTU with a new unit, replaced both engine mounts with Porsche genuine parts, replaced the crankcase breather valve, replaced the cracked exhaust hanger
PartsPorsche genuine engine mounts, new PTU unit
Time takenMulti-day job, completed July 2026
CostQuoted after inspection
WarrantyContact us for details on the specific parts replaced

What the owner reported

The owner dropped the Macan off via our key-drop box early on a Sunday morning. The car had come up with a dashboard warning: 'No all-wheel sys. Only rear-wh drive. Adapted driving permitted.'

This warning means the Porsche's AWD system has detected a fault and has fallen back to rear-wheel drive only. The message tells the driver the car is still drivable, but the all-wheel system is disabled until the fault is cleared. The owner wanted to know exactly what was causing it before authorising any repair.

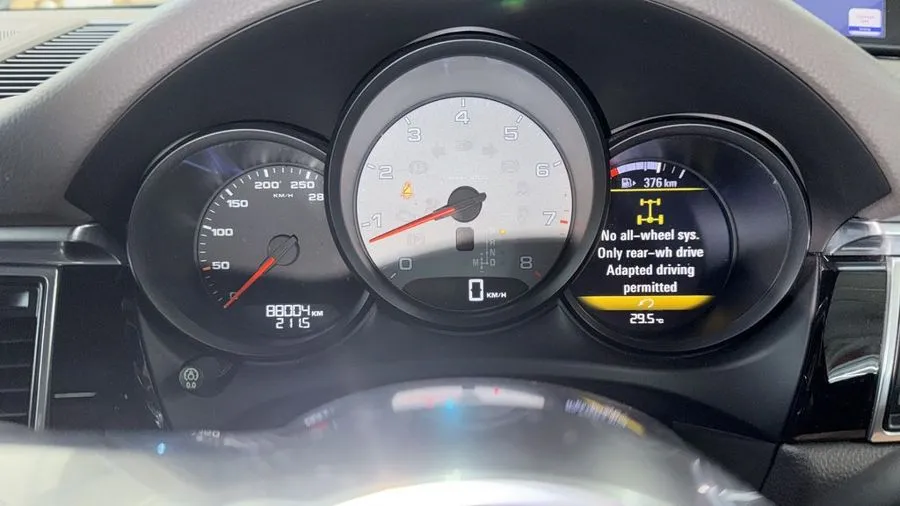

Porsche Macan dashboard showing the No all-wheel sys warning during the October 2026 follow-up

The PTU on the Porsche Macan

The Porsche Macan uses a PTU, or power transfer unit, to distribute drive between the front and rear axles. The PTU sits part of the drivetrain that supplies drive to the front axle and contains its own oil supply sealed by output shaft seals.

When a PTU shaft seal fails, the transfer-case fluid inside the unit drains away. Once the oil level drops low enough, the PTU overheats and the AWD system shuts down to protect itself, triggering the dashboard warning. Left unfixed, a dry PTU will destroy itself internally.

The PTU on the Macan is a sealed unit. When the shaft seal fails to the point where oil has already been lost, replacing the seal alone is not sufficient. The unit needs to be replaced.

What we found

We lifted the car and inspected the PTU. The output shaft seal had failed and transfer-case fluid was draining from the unit. The oil loss was the cause of the AWD system fault.

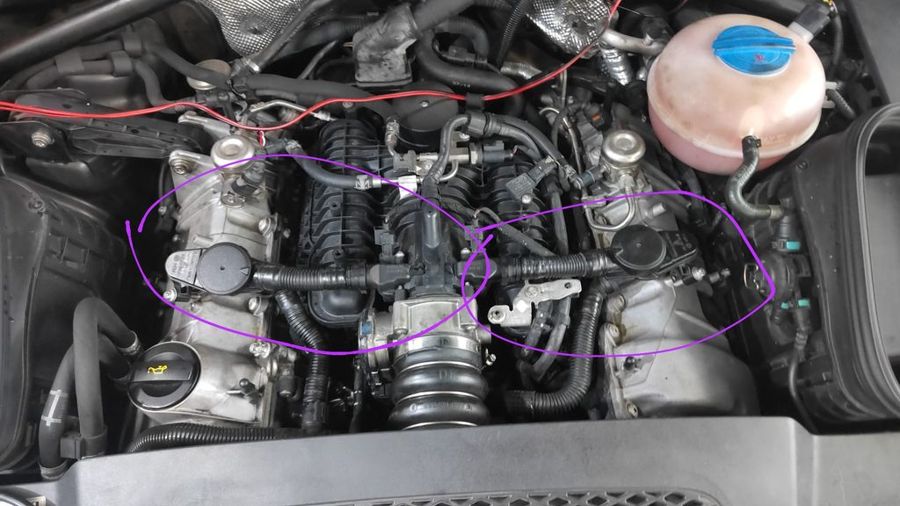

While the car was on the lift, we inspected the engine mounts and found them sunken. Worn engine mounts let the engine move more than it should, which increases drivetrain stress and can cause vibration through the cabin.

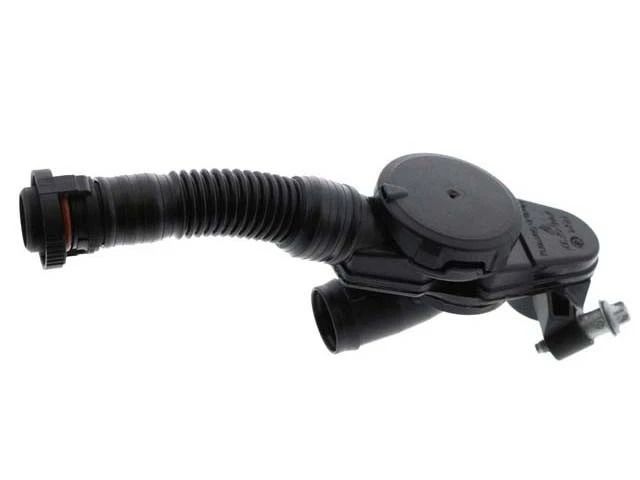

We also found the crankcase breather valve was due for replacement. A failing breather valve can cause oil vapour to build up in the intake, which leads to carbon deposits over time.

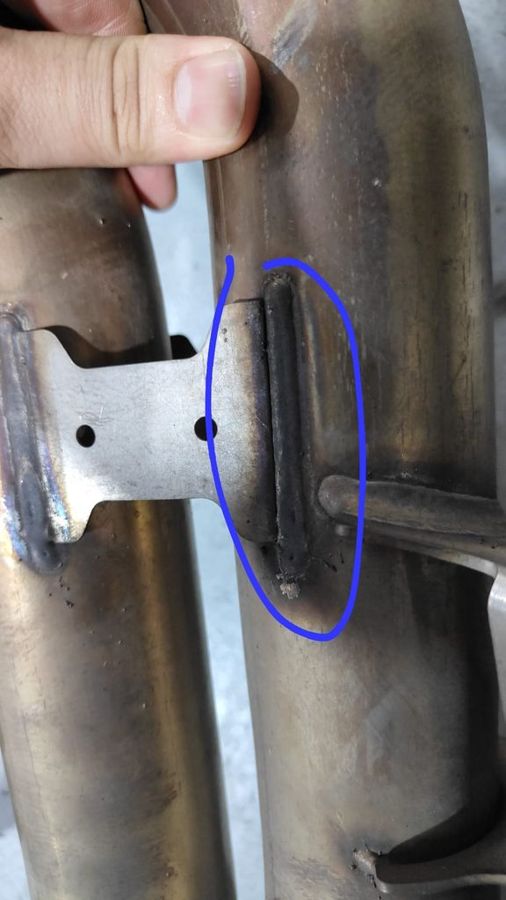

The exhaust hanger rubber was cracked through. A broken hanger lets the exhaust move freely, which causes a rattle and, if left long enough, can crack the exhaust pipe or damage surrounding components.

We showed the owner each fault and quoted each item separately before any work was authorised.

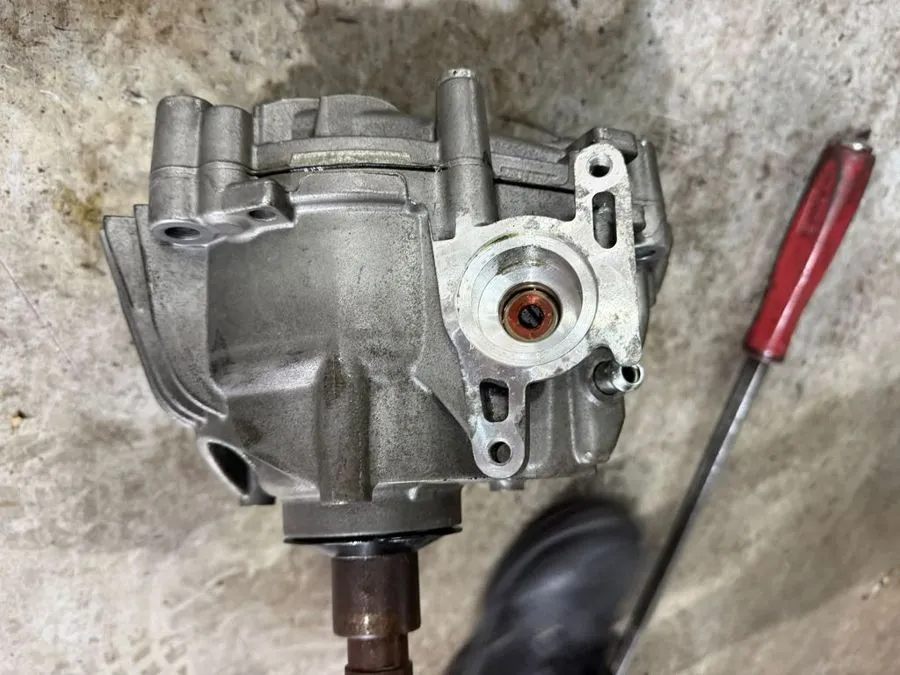

Old Porsche Macan PTU removed from the car, showing the failed output shaft seal where transfer-case fluid was leaking

Why the PTU seal fails on the Macan

The PTU shaft seal is a rubber component subject to heat cycling and the pressure of the rotating output shaft. On a Macan with higher mileage, the seal can harden and eventually lose its ability to contain the transfer-case fluid inside the unit.

Singapore's climate can accelerate the ageing of rubber seals. The combination of high ambient temperature and the heat generated by the PTU under load means seals can fail earlier here.

By the time the dashboard warning appears, the seal has already been leaking long enough for the transfer-case fluid level to drop critically. This is why PTU oil level checks are worth doing at regular services.

What we did

We completed all four items in the same workshop visit.

  • Removed the old PTU and fitted a new unit.

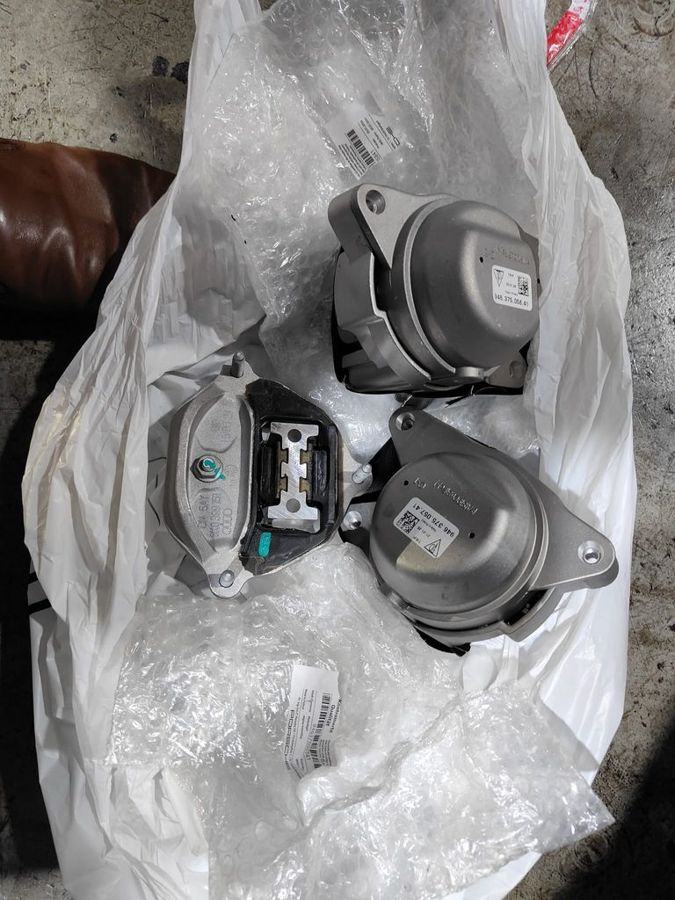

  • Replaced both engine mounts with Porsche genuine parts.
  • Replaced the crankcase breather valve.
  • Replaced the cracked exhaust hanger.

The car was returned to the owner in July 2026 with the AWD fault cleared.

In October 2026, the owner sent photos showing the same AWD dashboard warning had returned. The investigation into the cause of the recurrence is ongoing. We are transparent with the owner about the diagnostic process and what each step involves.

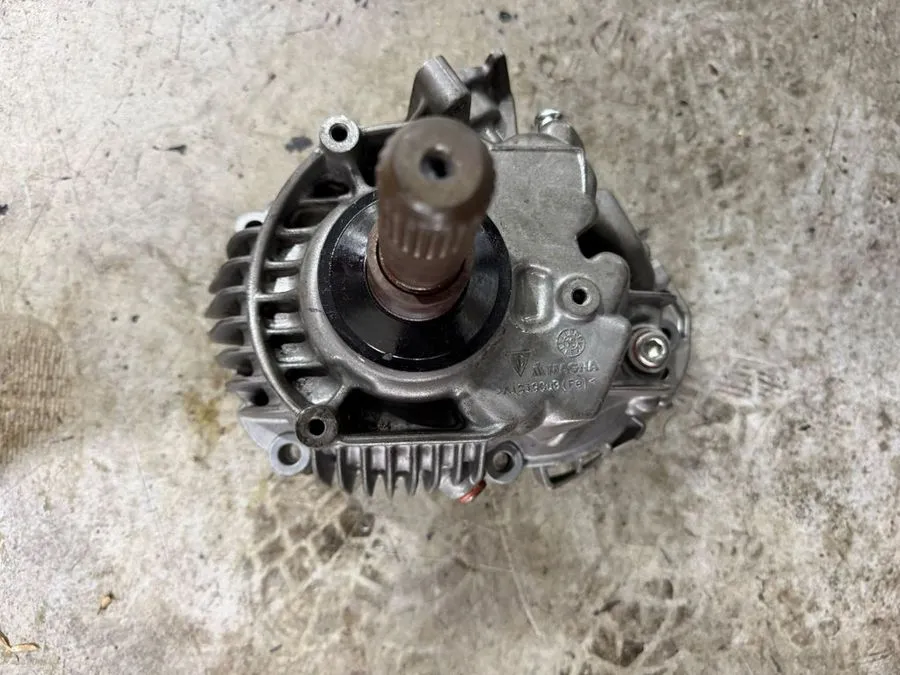

New PTU unit for the Porsche Macan ready to be fitted, showing the output shaft and housing

Before and after the July 2026 repair

Before

  • Dashboard warning: No all-wheel sys. Only rear-wh drive
  • PTU output shaft seal failed, fluid draining from the transfer case
  • Engine mounts sunken, engine moving more than it should
  • Crankcase breather valve due for replacement
  • Exhaust hanger rubber cracked through

After

  • AWD fault cleared after PTU replacement
  • New PTU unit fitted, transfer-case fluid leak resolved
  • Engine mounts replaced with Porsche genuine parts
  • New crankcase breather valve fitted
  • Exhaust hanger rubber replaced, exhaust secured

What a Porsche Macan PTU replacement costs in Singapore

The cost of a PTU replacement depends on the unit and whether additional work is needed alongside it. On this Macan we also replaced engine mounts, the crankcase breather valve and an exhaust hanger in the same visit, which affects the total.

We quote each item separately after the inspection so the owner can decide what to authorise. WhatsApp us with your Macan's model year and the dashboard warning message for an honest indication of what to expect.

How to catch a PTU fault early

The PTU on a Porsche Macan has its own oil supply that is separate from the gearbox. It is worth asking for a PTU oil check at your next service, especially on a higher-mileage Macan. A small leak caught early can often be addressed before the oil level drops to the point where the AWD system shuts down.

Any oil stain under the rear of the car, or an unexpected AWD warning light, is worth investigating without delay. The longer a PTU runs low on oil, the more internal damage accumulates.

About the workshop

This Porsche Macan (PTU replacement, engine mount replacement, crankcase breather valve replacement, exhaust hanger replacement) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For Porsche, we use dealer-level PIWIS diagnostics. We hold a 4.9★ rating from 1,831+ Google reviews.

When to have your Porsche Macan AWD system checked

Porsche AWD warning on the dashboard? Get it read properly.

An AWD system fault on a Porsche Macan needs to be read with the correct diagnostic tools before any parts are touched. WhatsApp us your model, year and the exact warning message. We will tell you what the fault codes point to and what the honest diagnostic process looks like from there.

WhatsApp us about your Porsche AWD warning

Porsche Macan AWD fault and PTU repair: common questions

What does No all-wheel sys. Only rear-wh drive mean on a Porsche Macan?

This warning means the Macan's AWD system has detected a fault and has disabled the all-wheel drive to protect the drivetrain. The car is still drivable in rear-wheel drive only, but the fault needs to be diagnosed before the AWD system will operate again. Common causes include PTU seal failure, low PTU oil, or an electrical fault in the AWD control system.

What is the PTU on a Porsche Macan and what does it do?

The PTU, or power transfer unit, is the component that distributes drive from the gearbox to both the front and rear axles. It contains its own oil supply sealed by shaft seals. When a seal fails and the oil drains away, the AWD system shuts down and triggers the dashboard warning.

Can the PTU shaft seal be replaced without replacing the whole PTU?

When the shaft seal has failed to the point where the transfer-case fluid has already been lost, replacing the seal alone is usually not sufficient. The unit has already run without adequate lubrication, and the risk of internal damage means a full PTU replacement is the more reliable solution. We diagnose the extent of the damage before recommending which path to take.

My Porsche Macan AWD warning came back after repair. What should I do?

If the AWD warning returns after a PTU has been replaced, the next step is to re-read the fault codes and check whether the fault is PTU-related again or coming from a different part of the AWD system. We will work through the diagnostic process honestly with you, showing you the fault codes and what each step of the investigation involves.

How much does Porsche Macan PTU replacement cost in Singapore?

The cost depends on the unit sourced and any additional work needed alongside it. We quote each item after inspection before any work begins. WhatsApp us your Macan's year and the exact warning message and we can give you an honest indication.
