BMW 218 Gearbox Overhaul: Drivetrain Warning, Burnt Clutch Pack Found, 2 Year / 40,000km Warranty

This BMW 218 came in with a Drivetrain warning on the instrument cluster. We dropped the gearbox, found a badly burnt clutch pack inside, and did a full overhaul including all the oil seals and coolant components. Here is what we found and what we did.

Job completed: September 2026

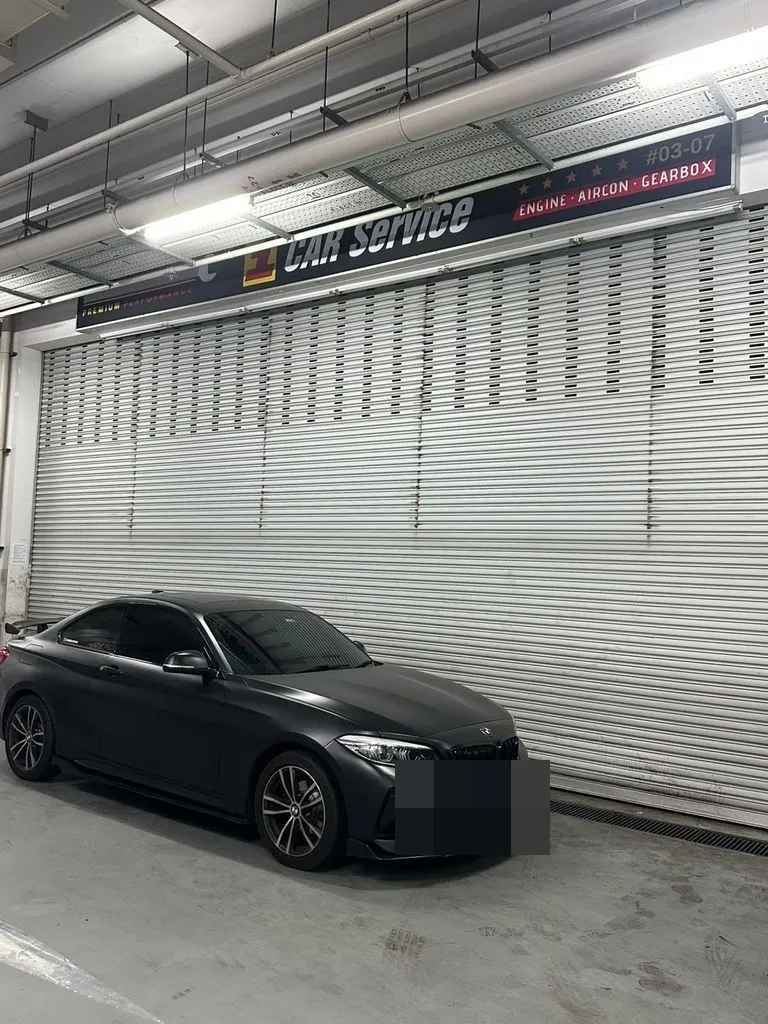

Matte black BMW 218 parked outside our Singapore workshop before gearbox overhaul

Job completed: September 2026. Last updated: October 2026. Written from our workshop job records and photos; technical details are generalised where the records do not confirm them.

CarBMW 218 (2 Series, F22), automatic gearbox, matte black wrap
SymptomDrivetrain warning on the BMW instrument cluster
Fault foundHeavily burnt clutch pack inside the gearbox. Also found: flywheel oil seal leaking, torque converter oil seal kit worn, gearbox oil pump O-ring leaking, thermostat and thermostat cap needing replacement, exhaust manifold gasket leaking
Repair doneFull gearbox overhaul. Burnt clutch pack addressed. All oil seals replaced (flywheel, torque converter, oil pump O-ring). Fresh ATF with new filter. Thermostat and thermostat cap replaced. Exhaust manifold gasket replaced. Coolant topped up, leak stains cleaned
PartsQuality replacement parts
Time takenTimeline confirmed at strip-down
CostPrice not published
Warranty2 years / 40,000km warranty on the gearbox overhaul

What the owner reported

The owner of this BMW 218 saw a Drivetrain warning on the instrument cluster. The warning said the car could continue driving, but drivetrain warnings on a BMW 218 are not something to ignore. The owner dropped the key at our workshop and we got the car in for inspection.

A Drivetrain warning on a BMW 218 can come from the gearbox, the driveshaft, the differential, or sensors on any of those components. The only way to know which is to diagnose the car properly before quoting any work.

The car

This BMW 218 is a 2 Series from the F22 generation. It runs an automatic gearbox, confirmed by the auto transmission fluid and filter service included in the job. The gearbox is the ZF 8HP50 eight-speed Steptronic (BMW designation GA8HP50Z), a conventional torque-converter automatic.

Inside an automatic gearbox are multiple clutch packs. Each pack handles a set of gear ratios. When the automatic transmission fluid breaks down or the fluid level drops, the clutch pack friction material overheats and burns. Once the friction material is burnt, the clutch can no longer hold gear pressure cleanly, which triggers the gearbox to report a drivetrain fault to the instrument cluster.

How we diagnosed it

We put the BMW 218 on the lift and connected our BMW-compatible diagnostic system to read the fault codes. The Drivetrain warning pointed us to the gearbox.

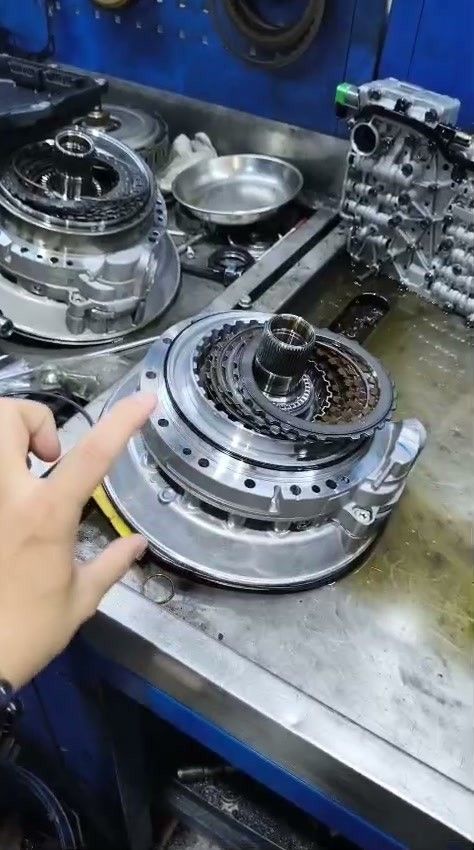

We dropped the gearbox to inspect it properly. With the gearbox on the bench and opened up, we found a heavily burnt clutch pack. The friction discs were darkened and glazed, which is what happens when the clutch material overheats over time. We also found multiple oil seal leaks at the gearbox and coolant leak stains at the thermostat and exhaust manifold gasket.

We sent photos to the owner showing the condition of the clutch pack and the state of the seals, and quoted the full scope of work before any parts were ordered.

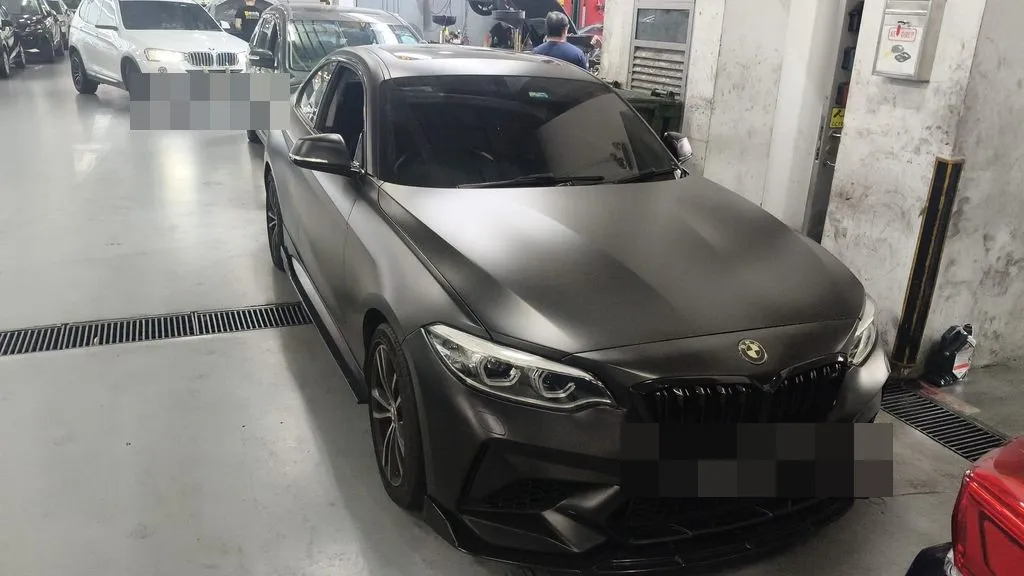

Matte black BMW 218 inside our workshop bay

Why the clutch pack burnt

The clutch pack in an automatic gearbox relies on transmission fluid to cool and lubricate the friction surfaces. When that fluid breaks down or becomes contaminated, the clutch material starts to run hot. Over time the friction discs burn, glaze over, and lose their ability to grip cleanly under pressure.

The burnt state of the clutch pack in this BMW 218, visible in the photos we sent the owner, shows this had been building for a while. The Drivetrain warning was the system reporting what the clutch could no longer hide.

What we did

We carried out a full gearbox overhaul with all the associated seal and coolant work in one visit.

Gearbox work:

  • Dropped the gearbox from the car.
  • Stripped and inspected all internal components.
  • Addressed the burnt clutch pack.
  • Replaced the flywheel oil seal.
  • Replaced the torque converter oil seal kit.
  • Replaced the gearbox oil pump O-ring.
  • Refilled with fresh Auto Transmission Fluid and fitted a new ATF filter with gasket.
  • Rebuilt and reinstalled the gearbox.

Coolant and sealing work:

  • Replaced the thermostat and thermostat cap.
  • Replaced the exhaust manifold gasket.
  • Topped up coolant and cleaned oil and coolant leak stains.
  • Topped up engine oil.

After the work was done we ran the BMW through basic system setting.

The gearbox overhaul carries a 2 year / 40,000km warranty.

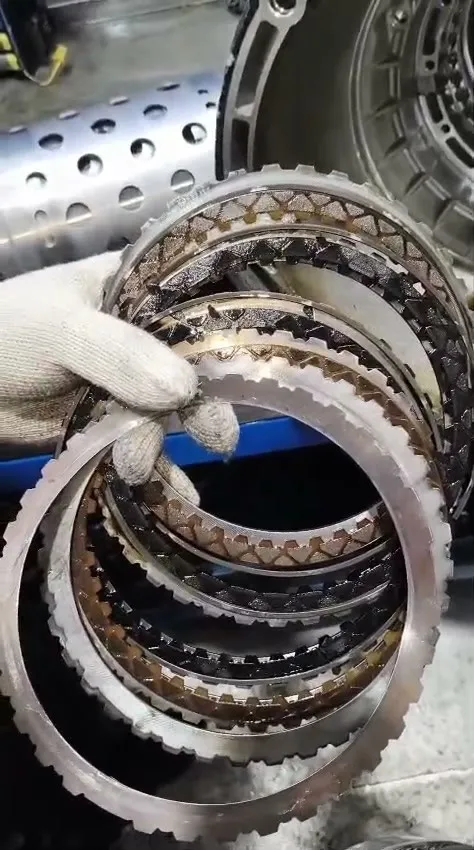

Burnt and glazed clutch friction discs removed from the BMW 218 gearbox during overhaul, showing heavy heat damage

Before and after

Before

  • Drivetrain warning on the BMW 218 instrument cluster
  • Heavily burnt and glazed clutch pack inside the gearbox
  • Flywheel oil seal leaking
  • Torque converter oil seal kit worn
  • Gearbox oil pump O-ring leaking
  • Thermostat and thermostat cap needing replacement
  • Exhaust manifold gasket leaking
  • Oil and coolant leak stains

After

  • Gearbox overhauled, basic system setting completed
  • Gearbox fully overhauled with burnt clutch pack addressed
  • All oil seals replaced: flywheel, torque converter, oil pump O-ring
  • Fresh ATF with new filter installed
  • Thermostat and thermostat cap replaced
  • Exhaust manifold gasket replaced
  • Coolant topped up, leak stains cleaned
  • 2 year / 40,000km warranty on the gearbox overhaul

What does a BMW 218 gearbox overhaul cost in Singapore?

The cost of a BMW 218 gearbox overhaul depends on what the inspection finds inside. On this car the scope included addressing a burnt clutch pack, replacing multiple oil seals, fresh ATF with a new filter, and thermostat and coolant work alongside the gearbox drop.

We quote after inspection, once we know exactly what is worn. We do not guess and we do not fit parts speculatively. WhatsApp us your car's details and symptoms for an honest indication before any commitment.

How to keep a BMW 218 automatic gearbox in good shape

Automatic transmission fluid is not a sealed-for-life fluid, no matter what the service manual may suggest. Heat and kilometres degrade the fluid, and degraded fluid is the main reason clutch packs burn out early.

Changing the ATF on a regular schedule, and not waiting for a warning light to appear, is the most practical way to extend the life of the gearbox.

If the gearbox starts to show any hesitation on gear changes, an unusual shudder, or a warning on the dash, get it checked early. A fluid and filter change at the first sign of degradation costs a fraction of a full overhaul.

About the workshop

This BMW 218 (gearbox overhaul) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For BMW, we use dealer-level ISTA diagnostics. The work is backed by our 2-year, 40,000km warranty. We hold a 4.9★ rating from 1,836+ Google reviews.

When to get your BMW 218 gearbox checked

BMW 218 Drivetrain warning or gearbox concern? Get it checked before it gets worse.

WhatsApp us your BMW model and what the dashboard is showing. We will tell you what is likely wrong and the cost before any work begins. A full gearbox overhaul carries a 2 year / 40,000km warranty.

WhatsApp us - free gearbox check

BMW 218 gearbox overhaul: common questions

How much does a BMW 218 gearbox overhaul cost in Singapore?

The cost depends on what the gearbox inspection finds. On this BMW 218, the job included addressing a burnt clutch pack, replacing multiple oil seals (flywheel, torque converter, oil pump O-ring), fresh ATF with a new filter, and thermostat and exhaust manifold gasket work. We quote the full scope after inspection, before any parts are ordered, so you know exactly what you are paying for. The gearbox overhaul carries a 2 year / 40,000km warranty.

What causes a BMW 218 Drivetrain warning?

A Drivetrain warning on a BMW 218 can come from several sources: the gearbox, the driveshaft, the differential, or sensors on any of those components. On this car, the cause was a burnt clutch pack inside the gearbox, combined with multiple oil seal leaks. The only way to know the exact cause is to put the car on a BMW-compatible diagnostic system and read the fault codes, then inspect the components the codes point to.

Is it worth overhauling a BMW 218 gearbox instead of replacing it?

In most cases, yes. A proper gearbox overhaul replaces the worn internal parts (clutch packs, seals, gaskets, fluid) while keeping the original gearbox casing and hard components that are still in good condition. This costs considerably less than a full gearbox replacement. We strip the unit, inspect everything, and tell you exactly what is worn before any work is committed to. If the gearbox housing or shafts are damaged beyond what an overhaul can address, we will say so.

Do you have experience with BMW 218 gearbox work?

Yes. We use BMW-compatible diagnostic tools to read fault codes and run the system setting after gearbox work. We have serviced and overhauled BMW automatic gearboxes across the range, and have the tooling and experience the work requires.
