This BMW 5 Series F10 came in with a coolant leak and an automatic gearbox that had not been serviced in a long time. Here is how we found the fault and sorted both jobs in one visit.
Job completed: September 2026
| Car | BMW 5 Series F10 |
|---|---|
| Symptom | Coolant leak from the engine bay, automatic gearbox overdue for service |
| Fault found | Leaking coolant hose connector, evidenced by dried coolant residue at the leak point |
| Repair done | Replaced the coolant hoses and expansion tank, serviced the automatic gearbox with a new pan, integrated filter and fresh ATF |
| Parts | Quality replacement parts throughout |
| Time taken | Timeline confirmed after inspection |
| Cost | Quoted item by item after inspection |
| Warranty | No workmanship warranty on gearbox service or routine maintenance |
The owner brought the BMW 5 Series in for two things: a known coolant leak somewhere in the engine bay, and an automatic gearbox that was long overdue for a service.

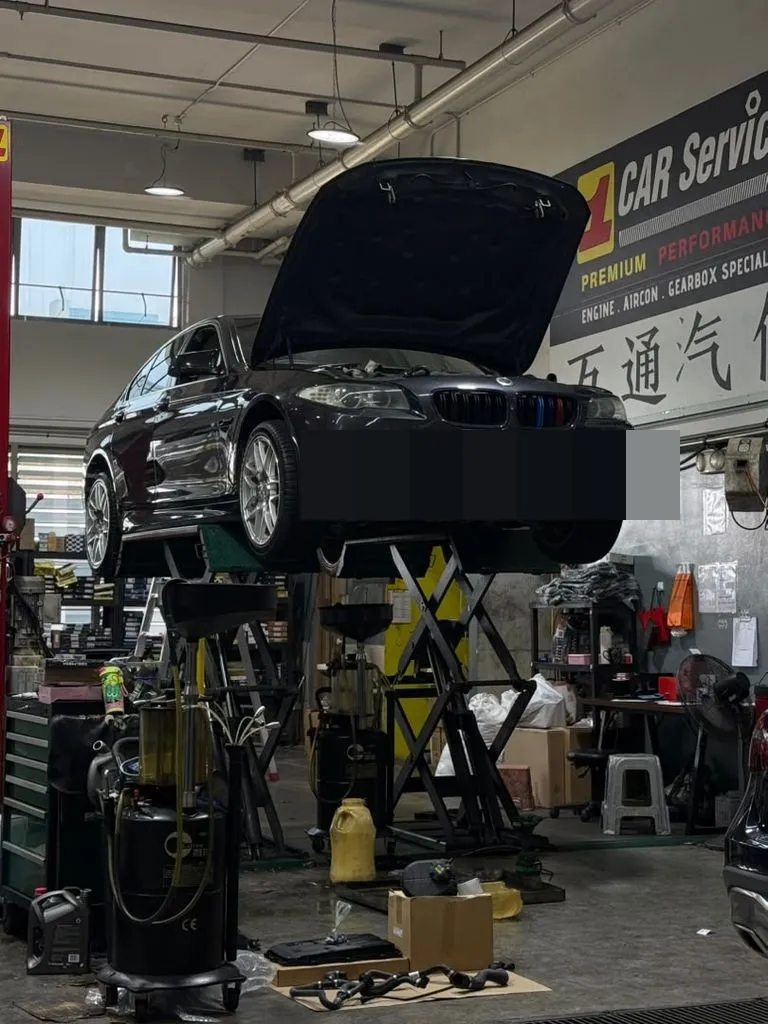

The owner wanted both jobs done properly in one visit rather than coming back. We lifted the car, opened the bonnet and worked through both systems.
The BMW 5 Series F10 is a four-door executive saloon. This example is fitted with the colour-accented grille, identifiable by the M-colour stripes on the kidney grille. The cooling system on the F10 uses plastic hose connectors that become brittle with age, and the automatic gearbox requires periodic fluid and filter changes to maintain smooth shift quality and protect the internal components.
On older F10 5 Series, neglecting the gearbox service allows the old ATF to degrade, and the filter to become restricted. Catching a coolant hose leak early avoids overheating damage.

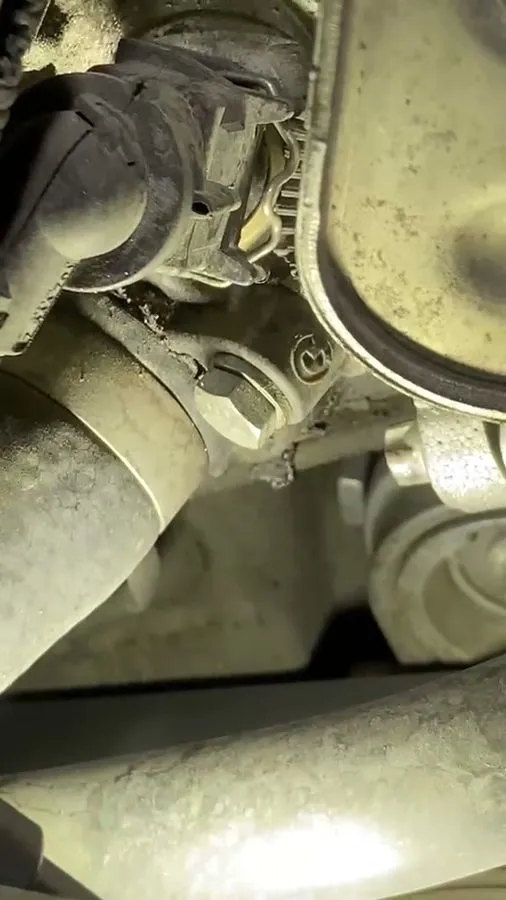

We opened the bonnet and inspected the coolant system. At the hose connector we found clear evidence of the leak: a build-up of dried coolant residue at the joint where coolant had been seeping out and evaporating.
The dried residue pinpointed the exact leak location without any guesswork. We showed the owner the deposits at the connector before quoting the repair.

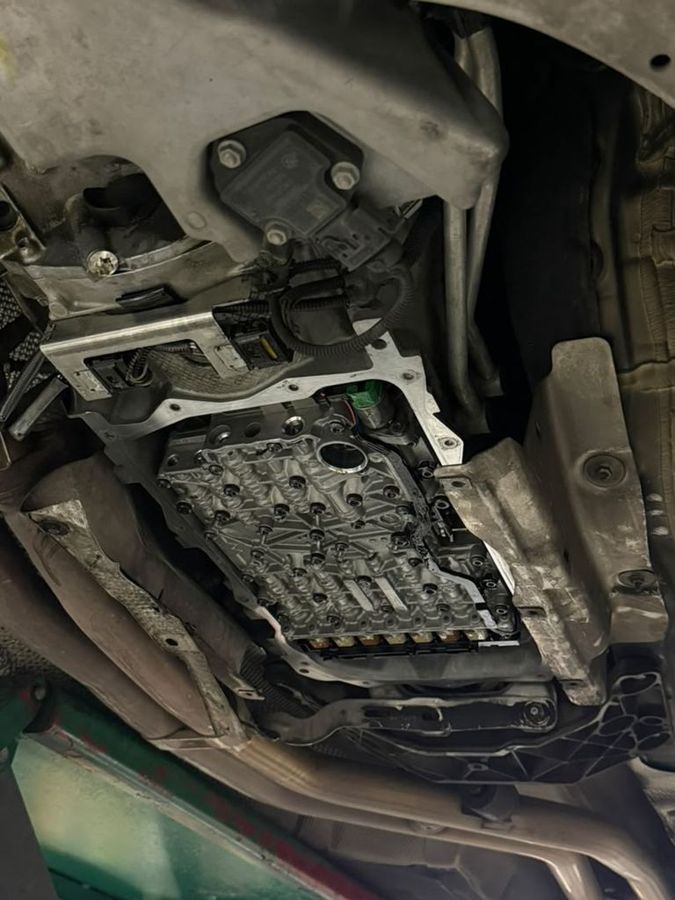

For the gearbox, we lifted the car and inspected underneath. The old ATF pan was removed to assess the condition of the fluid and filter.
The plastic hose connectors and hoses on the F10 5 Series are wear items that harden and crack with age and heat cycling. When the connector seal starts to weep, coolant escapes slowly. The water evaporates and the residue is left behind, which is exactly what we found on this car.
Left alone, a slow weep becomes a larger leak. In a worst case, a coolant hose failure leads to a sudden loss of coolant and engine overheating, which can cause serious engine damage. Catching the dried residue early, as on this car, means a straightforward hose and connector replacement rather than an engine repair.

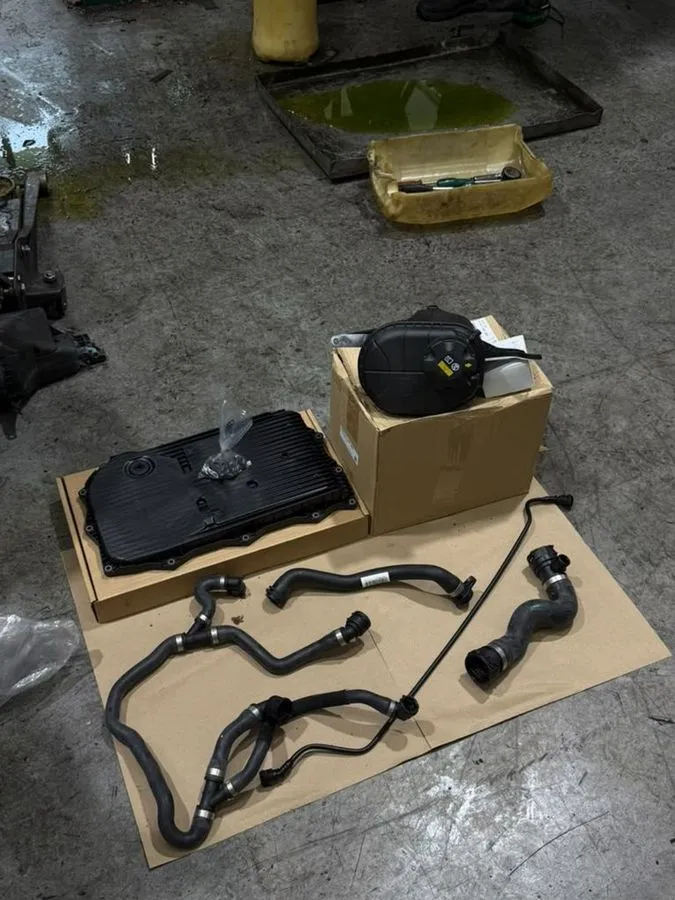

We completed both jobs in one workshop visit.
Coolant system:
Automatic gearbox service:
We also performed a battery health check at the same time.
From our team's record of this job. Number plates are pixelated.
The cost depends on the extent of the coolant hose replacement needed and the specific gearbox service package. We inspect the car first, identify exactly what is required, and give you a clear quote before any work begins.
We do not guess from outside the car. Lift the car, check underneath, quote item by item.
Check the coolant level in the expansion tank regularly. If the level keeps dropping without an obvious external leak, it is worth having the hoses and connections inspected. White mineral deposits around a hose connector or at the expansion tank cap are a clear sign of a slow weep.
For the automatic gearbox, BMW does not always specify a service interval but the ATF does degrade over time. If the car has not had a gearbox service within the last several years, it is worth having it done, especially on an older F10.
This BMW 5 Series F10 (Coolant hose replacement, expansion tank replacement, automatic gearbox service) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For BMW, we use dealer-level ISTA diagnostics. We hold a 4.9★ rating from 1,831+ Google reviews.
WhatsApp us your BMW model and what you are noticing. We will inspect the coolant system and check the gearbox, and tell you exactly what needs doing before any work begins. We use BMW ISTA diagnostic tools to read the car properly.
It depends on how many hoses need replacing and whether the expansion tank needs changing too. We inspect the cooling system first and give you a clear quote before any work begins.
Common signs are a dropping coolant level in the expansion tank, a sweet smell from the engine bay after driving, or dried residue around a hose connector. On this BMW F10 we found clear dried coolant residue at the hose connector, which pinpointed the leak immediately.
BMW does not always publish a fixed service interval for the automatic gearbox, but the ATF does degrade over time. On high-mileage or older F10s that have not had a gearbox service, it is a good idea to have the pan, filter and fluid changed.
Yes. A small hose weep stays manageable if caught early, but if coolant loss continues and the engine overheats, it can cause head gasket failure or more serious engine damage. Catching the dried residue early, as on this car, means a simple hose replacement rather than an engine repair.
Yes. We use BMW ISTA diagnostic tools to read the car's systems, check for stored faults, and confirm the repair is complete. We scan the car after all work is done before handing it back.
