This BMW 5 Series came in with oil leaks from several points and suspension arms that had worn through. We found five separate faults, quoted each item transparently, and sorted them all in one workshop visit.
Job completed: August 2026
| Car | BMW 5 Series |
|---|---|
| Symptom | Oil leak visible under the car. Handling felt less precise over bumps. |
| Fault found | Multiple oil leak sources: valve cover gasket, fuel pump seal, two camshaft sensor seals, engine oil sump seal and auto oil sump seal. Front suspension control arm, lower arm, linkage and stabilizer bar bush all worn. |

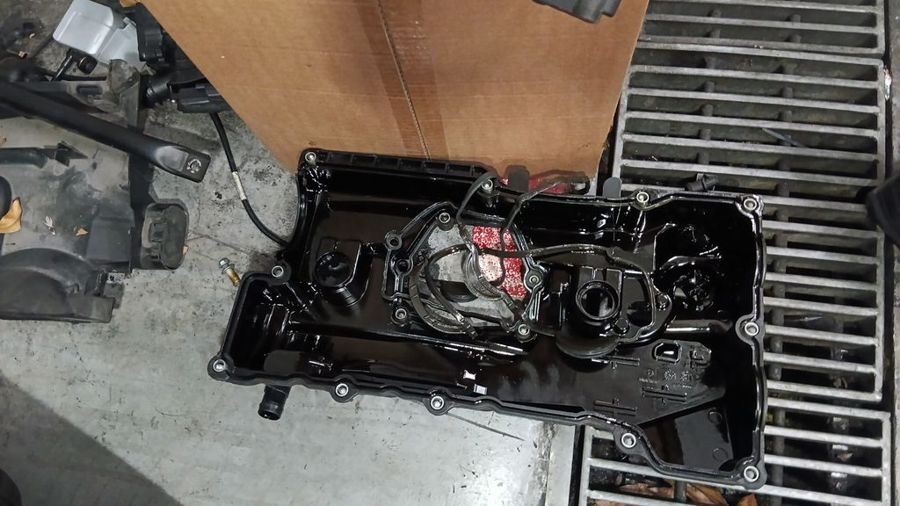

| Repair done | Replaced valve cover assembly, fuel pump with seal, both camshaft sensors, engine oil sump, auto oil sump, front control arm, front lower arm, front linkage and stabilizer bar bush. |
| Parts | Quality and OEM-grade parts throughout |
| Time taken | Timeline confirmed when you book |
| Cost | Quoted item by item after inspection. Contact us for a current assessment. |
| Warranty | Contact us for warranty details on the specific parts replaced |
The owner brought in the BMW 5 Series with oil staining appearing under the car and a feeling that the handling had become less settled over bumps. Nothing dramatic, but things that had gradually got worse.
The owner asked us to lift the car, find every fault, and give a clear quote for each item before any work started. That is exactly what we did.
The BMW 5 Series is a large executive saloon. Like most continental cars of this age, the seals, gaskets and rubber bushings in the engine and suspension are wear items that need attention at some point. When several reach the end of their life at the same time, a comprehensive inspection followed by one thorough workshop visit is more efficient than doing them one at a time.

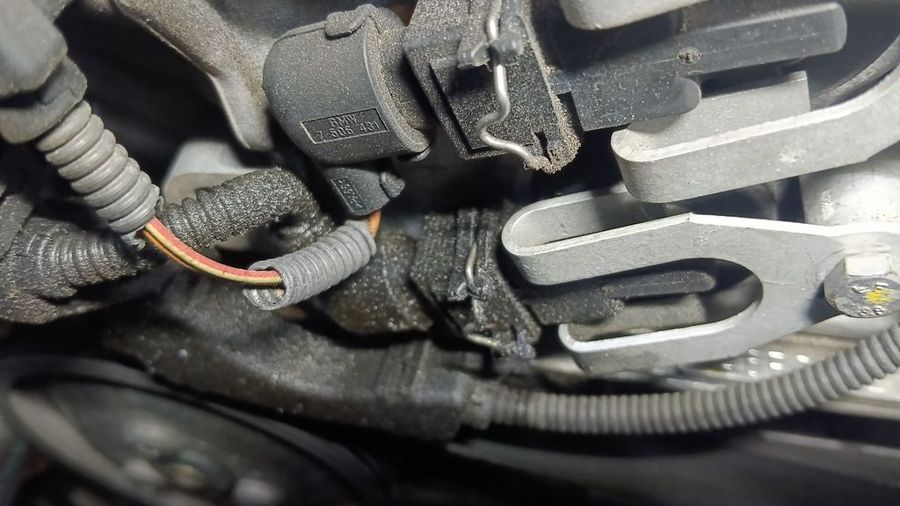

We connected ISTA diagnostic tools and scanned the car for stored fault codes. Two camshaft sensor faults were stored, consistent with leaking sensors allowing oil to contaminate the sensor body.

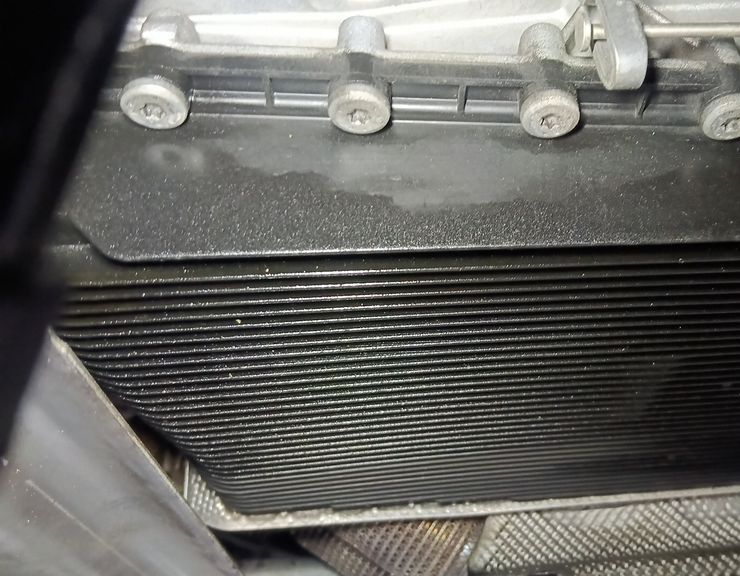

We then lifted the car and inspected every oil leak point. We found five separate sources:

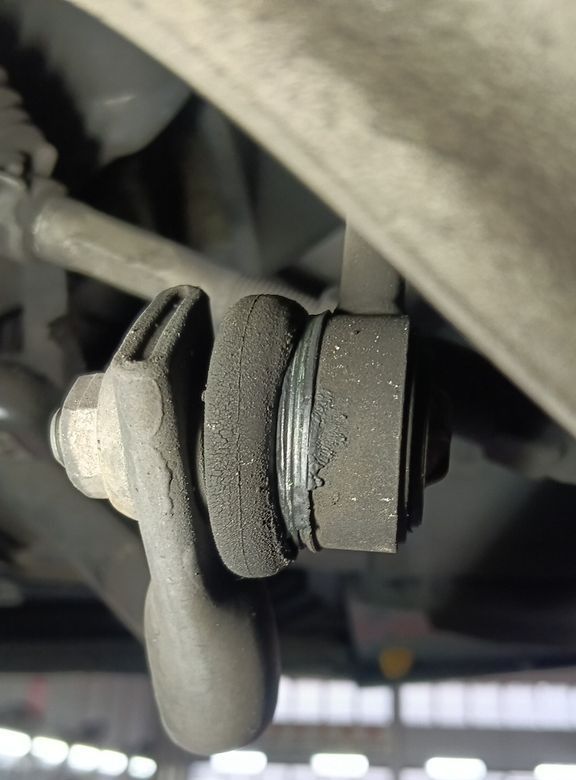

We also checked the undercarriage. The front control arm, lower arm, linkage and stabilizer bar bush were all worn and needed replacing.
We showed the owner each worn part and quoted each item separately before any work began.
Rubber seals and gaskets throughout the engine have a finite lifespan. On a car that has accumulated years of use in Singapore's climate, heat and humidity accelerate the ageing of these components. A seal that might last longer in a cooler climate hardens and cracks faster here.
When one seal starts to fail, others at a similar age are usually close behind. Finding all the leak points in one inspection and fixing them together saves the owner time and repeated workshop visits.
We addressed all five oil leak sources and the suspension in one visit.
The cost of this repair depended on the number of parts involved. We found five oil leak sources and worn suspension arms, so the quote covered each item separately.
We lift and inspect before quoting. You know exactly what you are paying for before we pick up a spanner. Parts like the valve cover assembly, fuel pump, camshaft sensors and suspension arms are all genuine or OEM-grade replacements.
An oil stain under the car where you park is always worth investigating promptly. A small seal leak caught early is a minor repair. Left to spread, oil can reach belts, sensors and other components and create a much larger job.
If you notice a slight hesitation from the engine or a camshaft-related warning light, get the sensors checked. Oil contamination of camshaft sensors is a common and fixable fault on older BMWs.
For suspension, a rough or unsettled feel over bumps, or any clunking from the front end, is a sign that the arms and bushings are wearing. These are safety-critical components and worth checking if the car does not feel as planted as it should.
This BMW 5 Series (Valve cover replacement, fuel pump seal, camshaft sensors, engine oil sump, auto oil sump, front suspension arms) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For BMW, we use dealer-level ISTA diagnostics. We hold a 4.9★ rating from 1,775+ Google reviews.
WhatsApp us your car model and what it is doing. We will use ISTA diagnostic tools to scan the car, lift it and check every fault before quoting. The diagnosis is free.
It depends on the model. The valve cover itself is one item, but on a comprehensive repair like this one we also address any other leak points found at the same time. We quote item by item after the inspection.
Seals and gaskets throughout the engine age at a similar rate. When one fails, others at the same age are usually close behind. Singapore's heat accelerates this process. Finding all the leak points in one inspection and fixing them together is more efficient than doing them piecemeal.
Yes. We use ISTA diagnostic tools, the same system used by BMW dealers, to scan the car before and after any work. This is how we confirmed the camshaft sensor faults on this 5 Series.
On a job covering multiple components like this one, we confirm the timeline after the inspection once we know the full scope of work. We do not rush jobs that involve multiple components.
That depends on the car's overall condition. We will be honest with you about what we find. If the rest of the car is sound, fixing the oil leaks and suspension is a sensible investment compared with the cost of a replacement.
