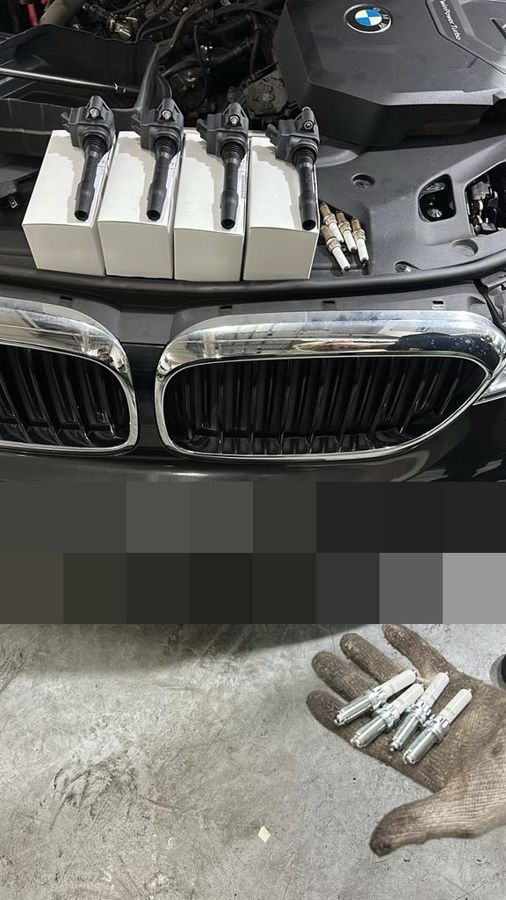

This BMW 5 Series G30 came in after the owner noticed a rough idle. We removed the spark plugs and found severely burnt electrodes. We replaced all four plugs with quality NGK units, swapped all four ignition coils, and replaced the valve cover and gasket.
Job completed: September 2026
| Car | BMW 5 Series (G30) |
|---|---|
| Symptom | Rough idle |
| Fault found | Severely burnt spark plugs and a leaking valve cover gasket |
| Repair done | Replaced all four spark plugs with quality NGK units, all four ignition coils, and the valve cover with gasket. Road tested before handover. |
| Parts | Quality NGK spark plugs, new BMW valve cover |
| Time taken | Not recorded |
| Cost | Not recorded |
| Warranty | Road tested before handover |
The owner brought in a BMW 5 Series G30 with a rough idle. The customer followed up several times asking for updates, which tells you how much this was bothering them.
A rough idle on a modern BMW usually points to the ignition system: spark plugs, coils, or both. When the valve cover gasket is also due, both faults often appear together on higher-mileage examples because both items age at a similar rate.

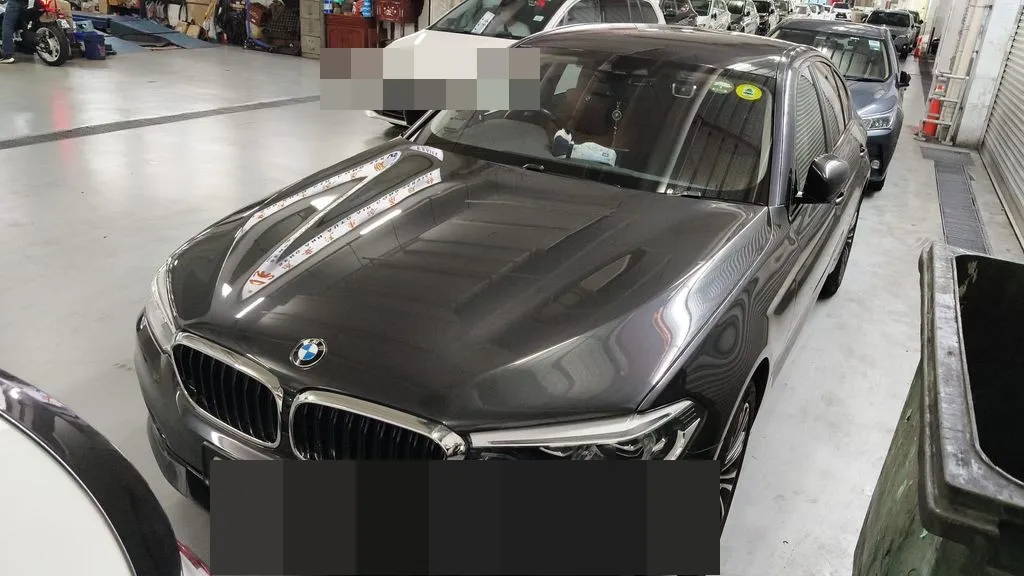

The car is a BMW 5 Series from the G30 generation, finished in dark grey. The G30 uses BMW's TwinPower Turbo engines and relies on a coil-on-plug ignition system: each cylinder has its own spark plug and its own ignition coil sitting directly on top of it.
This setup gives precise control over ignition timing but it means when a plug or coil degrades, you feel it immediately as a misfire or rough running. Spark plugs and ignition coils have a service life. On a BMW that has been driven hard or has gone beyond its change interval, they wear at the same rate, which is why it makes sense to do all four at once.
We started by connecting our diagnostic tools to read any stored fault codes, then removed the spark plugs to inspect them directly. We also used a borescope to look inside the cylinders through the spark plug holes.

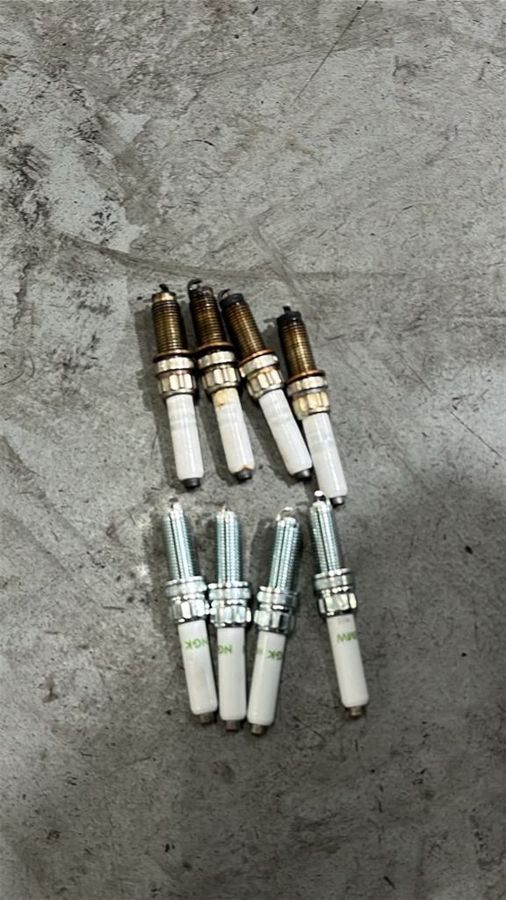

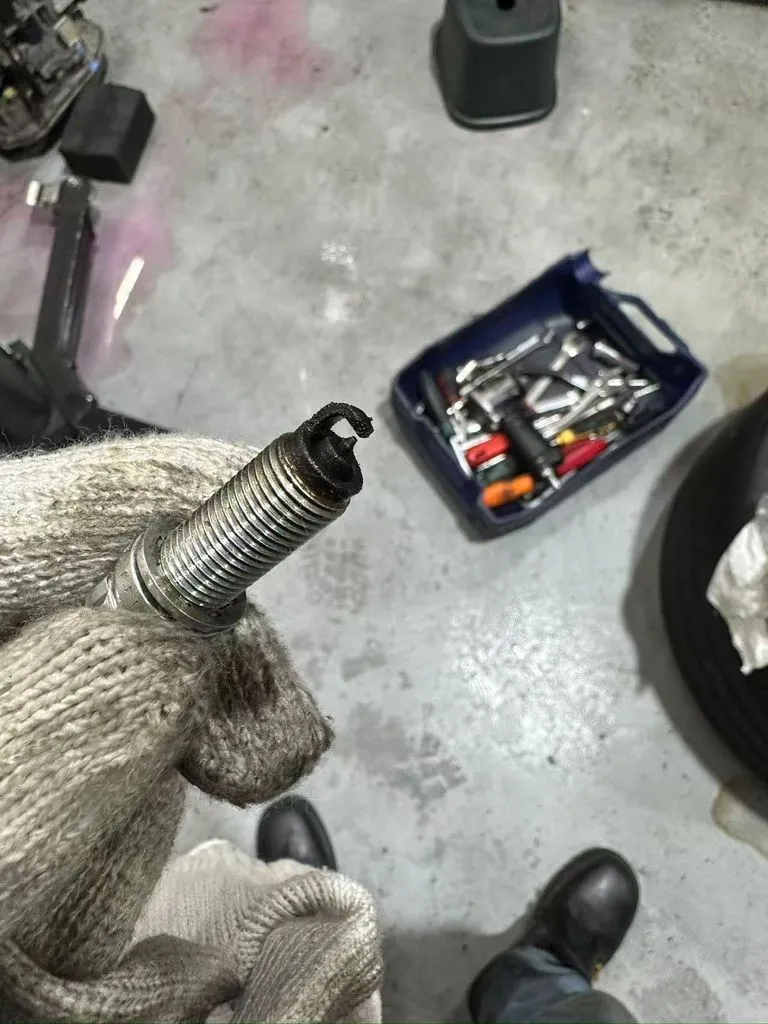

The removed plugs told the story immediately: the electrodes were completely destroyed, burnt black and covered in carbon deposits. The tips had eroded well beyond their usable life. We showed the owner the plug condition and the borescope footage before quoting. There was no guesswork involved.
Spark plugs have a finite life. On a BMW with a TwinPower Turbo engine, the plugs run under higher cylinder pressures and temperatures than a naturally aspirated car. When plugs are run past their service life, the electrode wears away and the spark gap opens up. A wider gap demands more voltage, strains the ignition coil, and produces a weaker, less consistent spark.
A weak spark leaves fuel partially unburnt, which causes a rough idle and poor running. The carbon deposits build up on the plug and inside the cylinder. On the valve cover side, the rubber gasket hardens and shrinks with heat cycling over the years, and small cracks let oil seep out past the gasket seal.
In Singapore's heat, both processes are faster. The combination of plugs, coils and valve cover gasket all reaching end of life around the same time is common on BMWs that have not had the ignition service done on schedule.
Once the owner approved the work, we carried it out in full rather than leaving any worn part behind.
From our team's record of this job. Number plates are pixelated.
The cost for this job covers four spark plugs, four ignition coils and a valve cover with gasket, plus the labour to remove and refit everything correctly. The exact figure depends on the engine variant and whether you replace just the plugs or include the coils and valve cover at the same time.
Doing plugs, coils and the valve cover together in one visit saves on labour compared to coming back for each item separately. If you are already in for plugs and the coils or valve cover are showing their age, it makes sense to complete it in one job.
Spark plugs on a turbocharged BMW should be changed on schedule, not stretched. An extended change interval is false economy: the cost of a full plug and coil set is a fraction of what a misfiring cylinder can do to an engine over time.
For the valve cover, the gasket is rubber and it will eventually harden and crack from heat cycling. There is no way to prevent this entirely, but catching the early oil smell and dealing with it promptly stops oil from reaching hot exhaust components and turning a simple gasket job into a bigger cleanup.
If your BMW is running rough, idling unevenly, or you can smell oil from under the bonnet, have it checked. A borescope inspection takes minutes and shows exactly what is happening inside the cylinders without any guesswork.
This BMW 5 Series (Spark plug and valve cover replacement) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For BMW, we use dealer-level ISTA diagnostics. We hold a 4.9★ rating from 1,817+ Google reviews.
WhatsApp us your BMW model, year, mileage and a short description of what you are noticing. We will tell you what is likely going on and what it will cost before any work begins. Every repair is road tested before you collect.
The cost depends on the engine variant and whether you replace just the plugs or include the ignition coils at the same time. Doing plugs and coils together in one visit is more cost-effective than returning separately for each item. WhatsApp us your BMW model and year and we will give you a clear number.
Common signs are a rough or uneven idle, hesitation when accelerating, a misfire warning light on the dash, or the car simply feeling less responsive than usual. If your plugs are overdue by mileage or have never been changed, it is worth having them inspected. A borescope check shows the plug condition without pulling everything apart first.

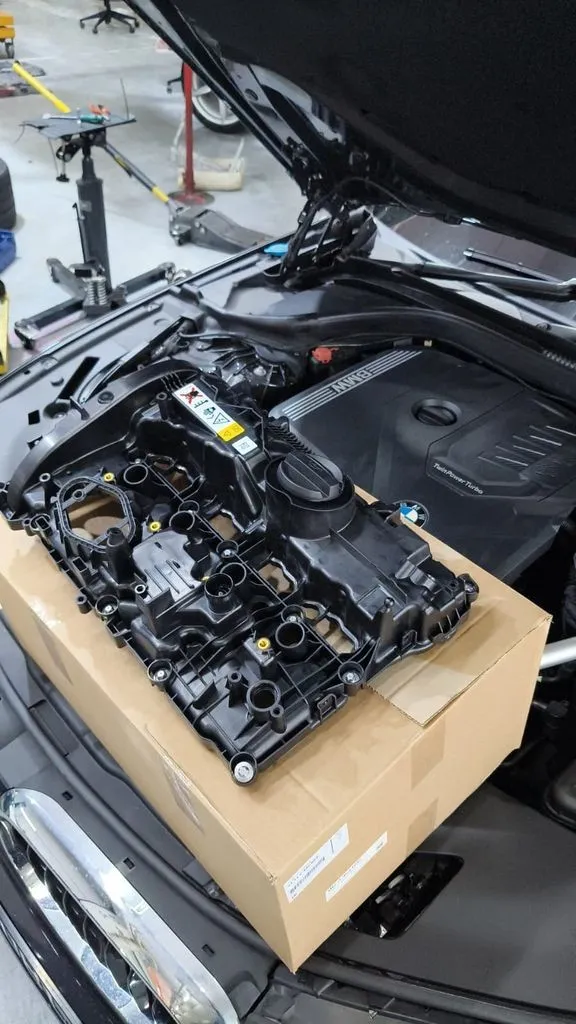

The valve cover gasket is rubber. Over years of heat cycling, it hardens, shrinks and develops small cracks. Oil then seeps out past the gasket, which you often smell before you see it, especially when the engine is warm. On this BMW 5 Series we replaced the valve cover and gasket together to give a fresh seal.
Yes. We use ISTA, the BMW dealer-level diagnostic system, to read fault codes and check the engine control units on BMW vehicles. For this job we also removed the spark plugs for direct inspection and used a borescope to check inside the cylinders.
