This VW Golf GTI was towed to our workshop after the manual gearbox failed. Draining the oil revealed steel bearing balls on the magnetic sump plug, a clear sign of bearing failure inside. We stripped the gearbox, found a cracked shift bracket and worn internals, rebuilt it with new parts, and replaced the CV driveshaft too. Here is what we found and what we did.
Job completed: September 2026
| Car | Volkswagen Golf GTI (manual gearbox) |
|---|---|
| Symptom | Gearbox failed completely; car towed to workshop |
| Fault found | Bearing ball failure inside the manual gearbox; steel balls and metallic paste collected on the magnetic sump plug. Cracked shift bracket found on strip-down |
| Repair done | Full manual gearbox overhaul with new parts, CV driveshaft replaced, fuel injector O-ring changed |
| Parts | OEM-grade overhaul parts |
| Time taken | Confirmed after strip-down |
| Cost | $3,580 nett |
| Warranty | 2 years or 40,000km, whichever comes first |

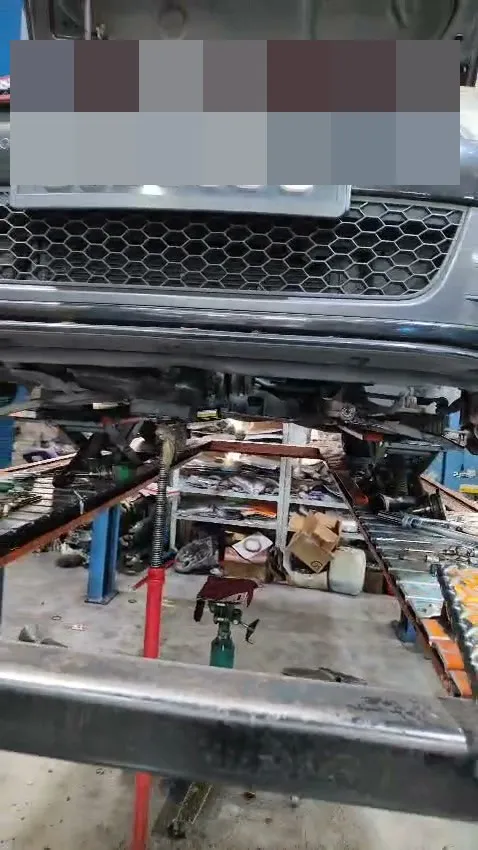

The owner contacted us because the Golf GTI had stopped driving. The gearbox had given up entirely, and the car had to be towed to our workshop. When a manual gearbox fails without warning like that, it usually means something has broken inside, not just worn out slowly. The GTI needed a proper strip-down to find out what had gone wrong.
The VW Golf GTI is one of the most popular hot hatches in Singapore. With a turbocharged petrol engine and a manual gearbox, it is a car that gets driven hard and rewards the driver for it. The manual transmission on the GTI is an enthusiast-spec unit, designed to handle the engine's output through quick, direct gear changes.
Manual gearboxes are generally robust, but they do wear over time. The bearings, shift forks and synchronisers all take load with every gear change. When a bearing fails, the metal debris it releases circulates through the gearbox oil and causes rapid damage to other components. A car driven far enough with a bearing in failure can end up with widespread damage throughout the gearbox internals.
After the car came in on a tow, we drained the manual gearbox oil and inspected the magnetic sump plug. It had collected steel bearing balls and a coating of metallic paste debris. That is a definitive sign of bearing failure inside the gearbox: the balls had fragmented out of their race and were circulating through the oil.

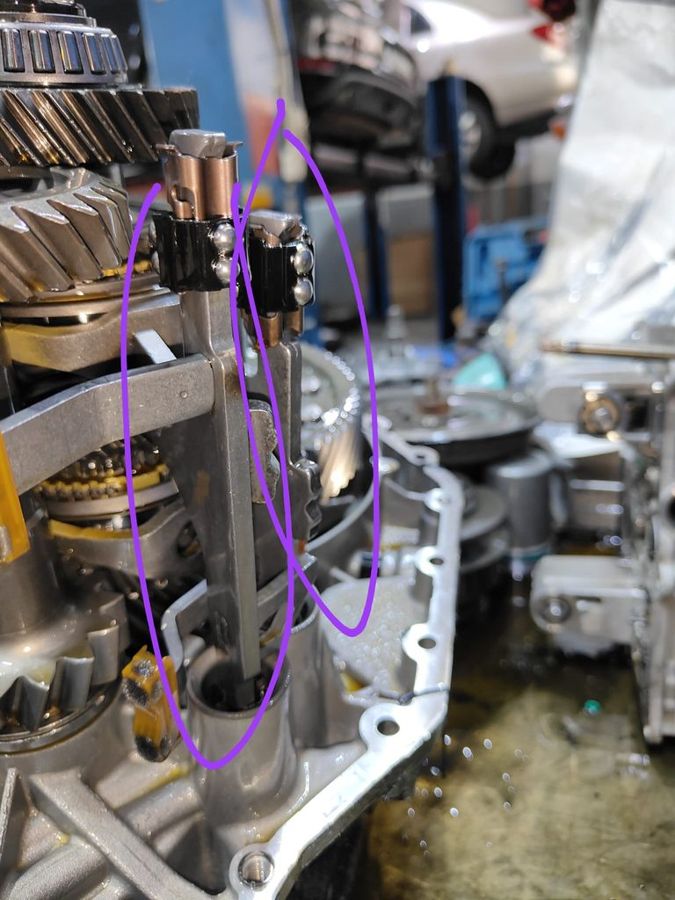

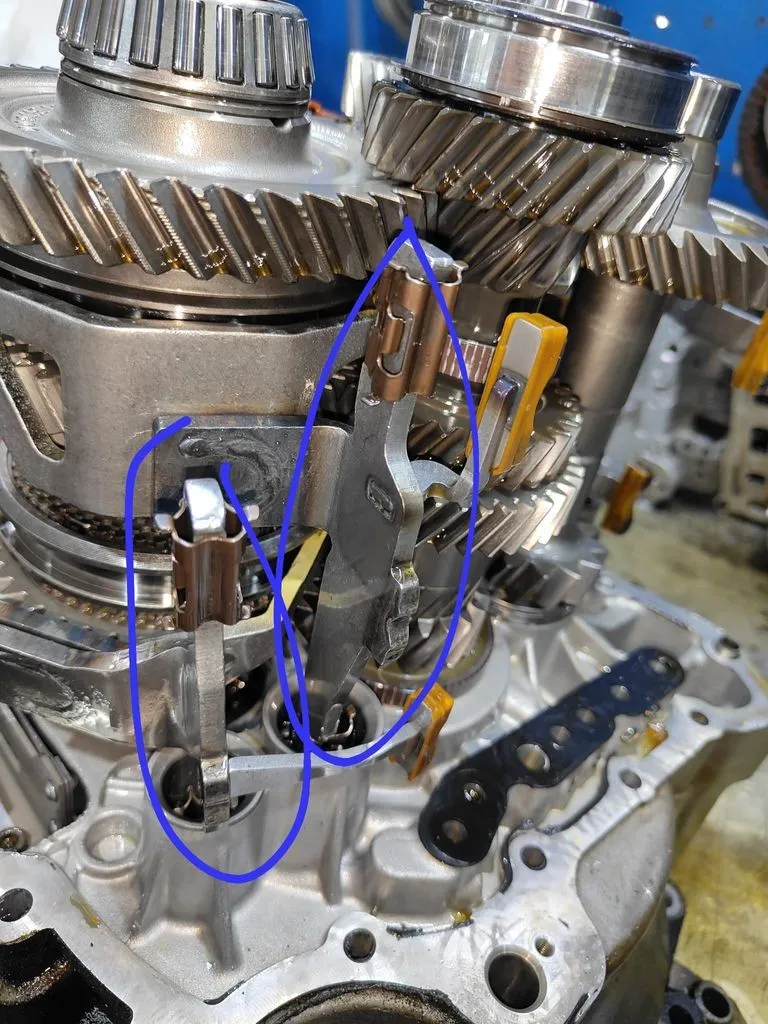

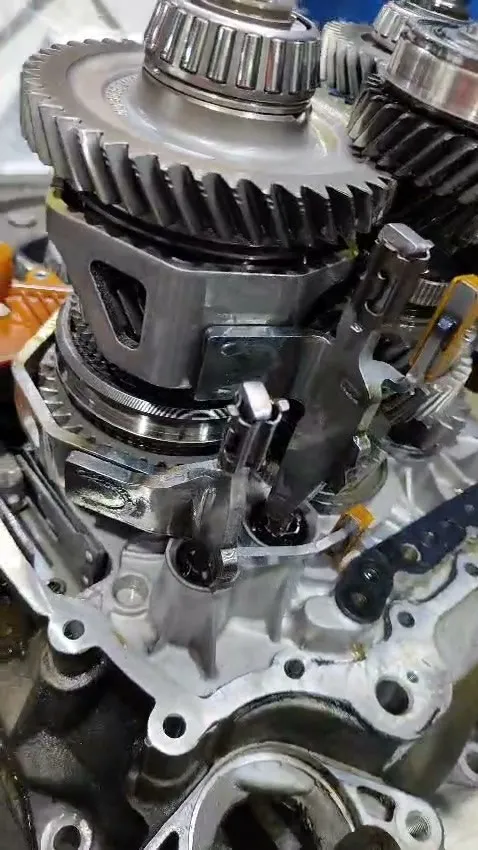

We stripped the gearbox fully to assess the damage. Inside, we found the shift bracket cracked. A cracked shift bracket means the gear-selector mechanism can no longer move the shift forks reliably. On a car that had stopped driving, this was consistent with what the owner reported.

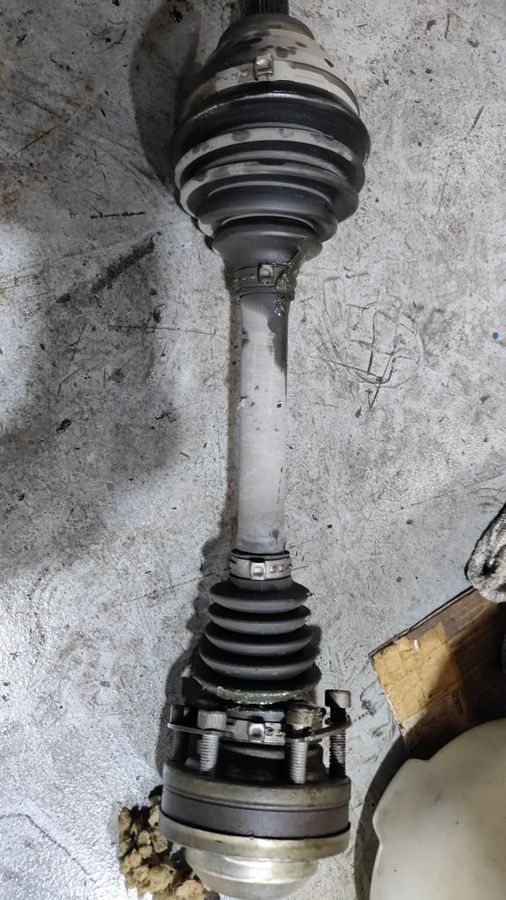

The CV driveshaft also needed replacing. With the gearbox out, we checked the driveshaft condition and found it had to come out too. We also changed the fuel injector O-ring while the car was in, addressing every issue in one visit.
Bearing failure in a manual gearbox usually comes down to one of two causes: degraded oil that no longer protects the bearing surfaces, or a bearing that has simply reached the end of its service life under sustained load. When a bearing fails, the steel balls fragment out of the race and begin circulating through the oil. The metallic debris accelerates wear on every other surface the oil reaches.
A cracked shift bracket is a separate failure, but it is often found together with bearing damage because the two share the same environment: a gearbox under mechanical stress. A cracked bracket makes precise gear selection impossible and can lock out gears entirely, which is what had happened to this GTI.
Catching bearing wear early, through regular gearbox oil changes and attention to any grumbling noise under load, gives the best chance of avoiding a full overhaul. Once the bearing has fragmented and contaminated the oil, the damage is widespread and a rebuild is the only proper fix.
We quoted every item before starting and only proceeded after approval.

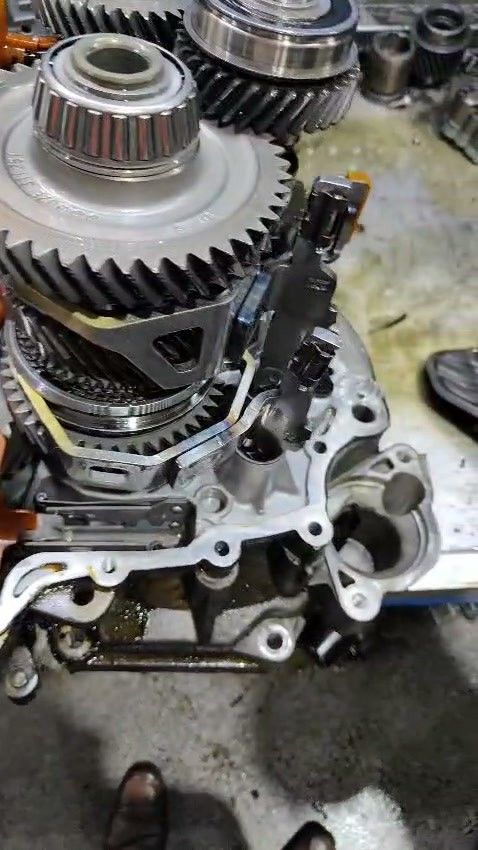

After the rebuild, the gearbox was refilled with the correct manual transmission fluid and the car was road tested before handover.
From our team's record of this job. Number plates are pixelated.
This Golf GTI gearbox overhaul came to $3,580 nett. That covered the full strip-down, the bearing replacement, the new shift bracket and internals, the CV driveshaft, and the fuel injector O-ring, all in one visit.
Manual gearbox overhaul prices vary by what the strip-down reveals. A gearbox with only bearing damage sits at a different scope from one where multiple components have to be replaced. We quote every item after the strip-down, before any parts are ordered, so you know exactly what you are approving. The 2-year / 40,000km workmanship warranty applies to the gearbox overhaul.
Manual gearbox oil does not need changing as often as engine oil, but it does degrade with heat and mechanical wear. Changing it on schedule keeps the bearings and synchros in better condition and extends gearbox life. If you hear any grumbling or whining noise under load, or if gear changes feel notchy or stiff, have it checked early. A bearing caught before it fragments is a straightforward repair. One that has been running in failure and contaminating the oil with debris is a full overhaul.
For a car like the Golf GTI that gets driven enthusiastically, checking the gearbox oil at every major service interval is a sensible habit.
This Volkswagen Golf GTI (Manual gearbox overhaul) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For Volkswagen, we use dealer-level ODIS diagnostics. The work is backed by our 2-year, 40,000km warranty. We hold a 4.9★ rating from 1,817+ Google reviews.
WhatsApp us your car model and what you are feeling. We will inspect it, show you what we find, and quote every item before any work begins. Every gearbox overhaul is backed by a 2-year / 40,000km workmanship warranty.
This Golf GTI gearbox overhaul came to $3,580 nett, covering the full strip-down, bearing and shift bracket replacement, CV driveshaft and fuel injector O-ring. The price for any car depends on what the strip-down finds, so we quote every item after inspection before work begins. The 2-year / 40,000km workmanship warranty is included.
Steel bearing balls in the gearbox oil, collected on the magnetic sump plug, mean a bearing inside the gearbox has fragmented. The balls break free from their race and circulate through the oil, causing rapid wear to other internal components. Once a bearing has failed this way, a full gearbox overhaul is the correct fix. Topping up the oil and continuing to drive risks further damage.
The timeline depends on the extent of the damage found during strip-down and parts availability. We confirm the full scope and timeline after the gearbox is stripped and we have assessed all components. We only proceed after you approve the quote.
Yes. We work on VW Golf GTI manual gearboxes regularly and have the tools and parts knowledge for these transmissions. This Golf GTI came in on a tow with a complete gearbox failure and left with a full overhaul, a new CV driveshaft and a 2-year / 40,000km workmanship warranty.
