Volkswagen Sharan Coolant Leak: How We Traced the Leaks and Renewed the Cooling System

The owner booked the Sharan in for servicing, nothing dramatic, just the routine oil, filter and checks. While the car was up, our technician noticed coolant leaking. That is exactly the kind of thing a proper service should catch before it strands you.

The owner had a fair ask. Was it a pipe leaking or the tank leaking, and what would it cost to put right. He wanted to use original parts and he did not want to overpay. So we checked the whole cooling system properly and gave a clear, itemised quote before touching anything.

We did not just top up the coolant and send it off. We pressure tested the cooling system and traced where it was losing coolant, and checked the car on VW's ODIS diagnostics for any related fault.

The picture was clear once we looked properly. This was not one leak. The radiator was weeping, both the top and bottom radiator hoses were leaking, the expansion tank and its cap and hoses were leaking, and the heater hoses had gone too. The thermostat and water pump were also seeping. On an ageing cooling system, once one part weeps the neighbours are usually close behind.

We walked the owner through every item and quoted firmly before any work began, so there were no surprises later.

We fixed the cooling system as a set rather than chasing one leak at a time.

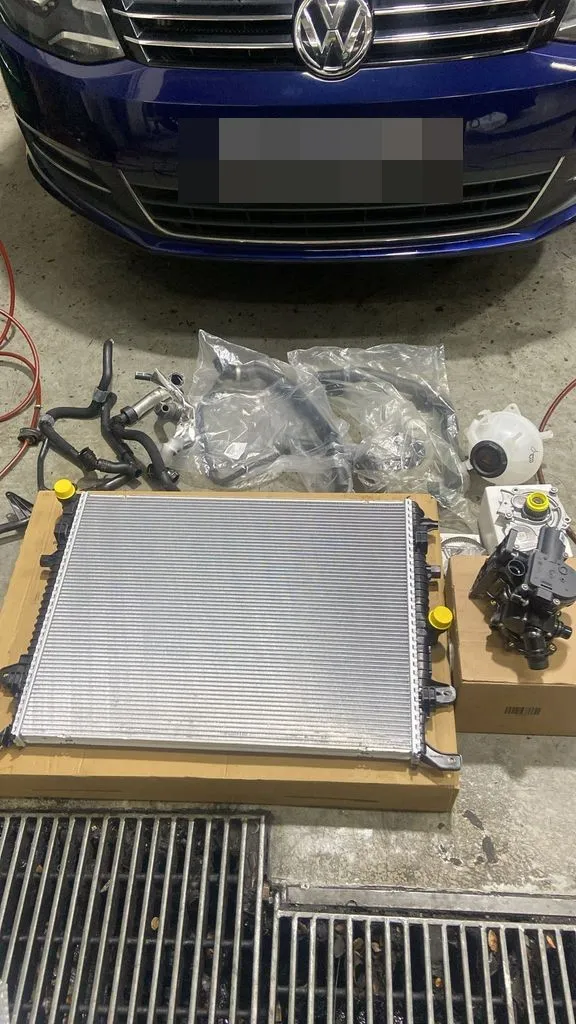

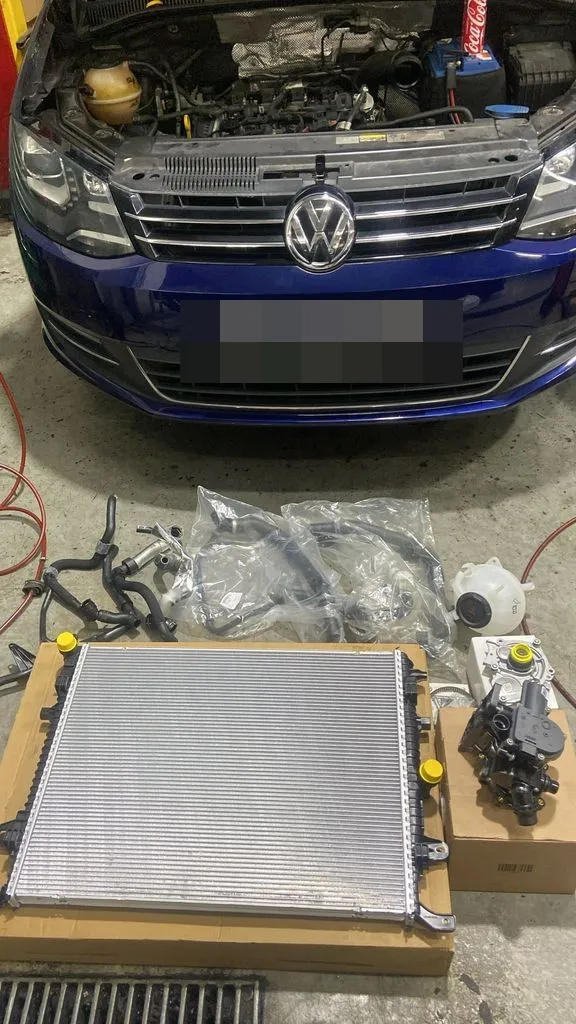

• Replaced the radiator, the top and bottom radiator hoses and the mid pipe.
• Replaced the expansion tank, its cap, and its small and bottom hoses.

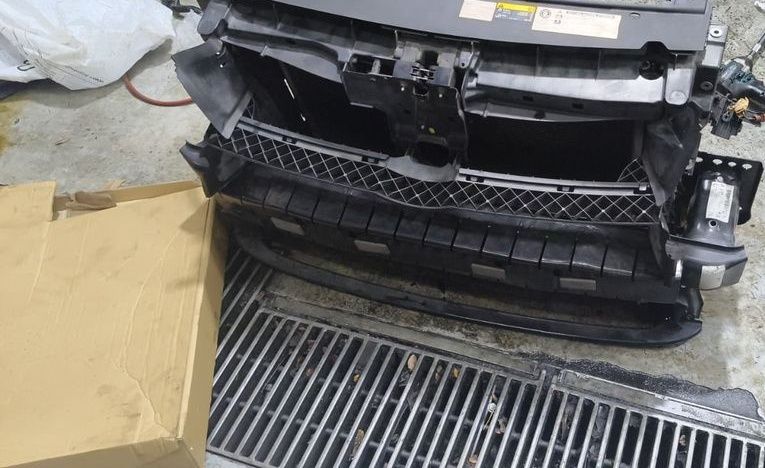

• Replaced the leaking heater hoses, including the two more we found once the front was apart.
• Replaced the thermostat and water pump assembly with its joint and belt, plus the water-pump hose.
• Refilled with the correct coolant, then pressure tested and road tested to confirm no more leaks.

All the cooling parts were original / OEM, as the owner asked. While the car was in we also completed the due servicing, engine oil and filter, spark plugs, a transmission oil change, a throttle body clean and fresh brake fluid. The car came back with a dry cooling system and held pressure on the test.

What a full cooling system repair costs depends on how many parts are leaking and whether original parts are used, so we quote after the pressure test and teardown show the full picture. On this Sharan the work covered the radiator, the top and bottom hoses, the expansion tank with its cap and hoses, the heater hoses, the thermostat and water pump, the water-pump hose and the mid pipe, all original / OEM.

What moves the price is how far the ageing has spread. A single hose caught early sits at the lower end. A cooling system that is leaking in several places, like this one, needs more parts to fix it once and properly. This is why we pressure test and check the whole system first, then quote for exactly what is leaking rather than guessing.

This Volkswagen Sharan (Coolant leak repair and radiator replacement) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For Volkswagen, we use dealer-level ODIS diagnostics. We hold a 4.9★ rating from 1,775+ Google reviews.
