Hyundai Elantra Engine Mount Replacement in Singapore: Vibration Fixed, Full Service Done

A Hyundai Elantra AD came in with a rattling and vibration from the engine. We found worn engine and gearbox mounts and did a complete major service alongside the mount replacement. The engine went quiet.

Job completed: July 2026

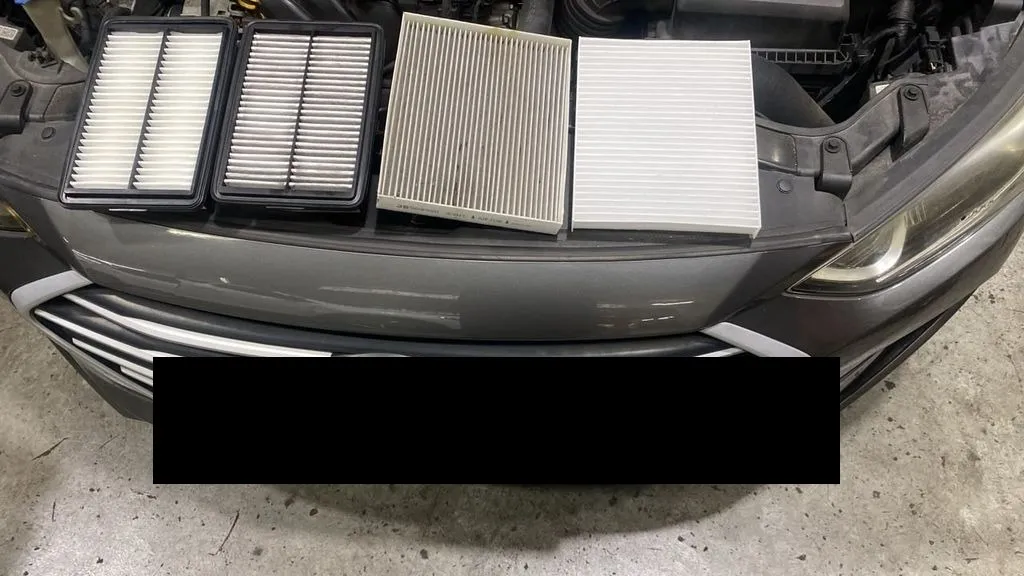

Old versus new engine air filter and cabin filter from a Hyundai Elantra, laid out on the bonnet at our Singapore workshop

Job completed: July 2026. Last updated: August 2026. Written from our workshop job records and photos; technical details are generalised where the records do not confirm them.

CarHyundai Elantra AD 1.6
SymptomRattling and vibration from the engine compartment
Fault foundWorn engine and gearbox mounts, plus all service items overdue
Repair doneEngine and gearbox mount set replaced, major service completed including oil, filters, spark plugs, ATF and battery
PartsOEM-grade parts throughout
Time takenTimeline confirmed when you book
CostQuoted and approved before work began
WarrantyRoad tested before handover

What the owner reported

The owner brought in a Hyundai Elantra AD with a rattling sound and a vibration that had been getting worse. The vibration was most noticeable at idle and when pulling away, and the engine compartment noise had reached the point where it was hard to ignore.

The owner wanted the car properly checked rather than guessed at. With the Elantra due for a service as well, the visit was a good opportunity to deal with the vibration and get everything up to date in a single visit.

Worn engine mount on a Hyundai Elantra inspected at our Singapore workshop, showing deterioration

The car

The Hyundai Elantra AD is a well-regarded compact saloon with a 1.6-litre naturally aspirated petrol engine. It is a practical, reliable car when properly maintained, and one of the more common Hyundais on Singapore roads.

Like all cars, the Elantra has engine and gearbox mounts that are rubber-bonded components. These mounts hold the engine and gearbox in place and absorb the constant vibration of the drivetrain so that the driver and passengers do not feel it directly. Over time and with heat cycles, the rubber hardens and degrades. When the mounts lose their damping ability, the vibration is transmitted directly into the car body.

What we found on inspection

We carried out a test drive to confirm the vibration, then put the car on the lift for a full inspection. The engine and gearbox mounts were visibly deteriorated, with cracking and compression set in the rubber. We showed the owner video footage of the mounts moving under load, which made the fault clear without any ambiguity.

At the same time, we ran through the service schedule. The engine oil was overdue. The air filter and cabin filter were dirty, as shown clearly when laid out next to fresh replacements. The spark plugs were worn. The ATF needed changing. The battery tested weak.

All findings were quoted separately and the owner approved the full scope before we started.

Engine mount being replaced on a Hyundai Elantra at our Singapore workshop, showing the worn unit removed

Why Hyundai Elantra engine mounts fail over time

Engine and gearbox mounts are rubber components that work constantly. Every time the engine fires, every acceleration, every gear change, puts load through the mounts. Singapore's heat accelerates the breakdown of the rubber compound: the material hardens, loses its flexibility, and can develop cracks over time.

When the mounts can no longer absorb the engine's movement properly, the vibration travels directly into the car body instead of being damped. This is what the owner was feeling. It tends to be worst at idle when the engine is rocking on its mounts, and under light load when the engine is running at low revs.

The service items are a separate but complementary story. Old engine oil and dirty air filters make the engine work harder, which adds more load to already tired mounts. Doing the service alongside the mount replacement gives the car the best chance of running quietly for a long time after the repair.

What we did

We worked through the full approved scope in the right order.

  • Replaced the engine and gearbox mount set.
  • Changed the engine oil (Shell Helix Ultra 5W40) and oil filter.
  • Replaced the engine air filter and the cabin air filter, showing the owner the old versus new difference.

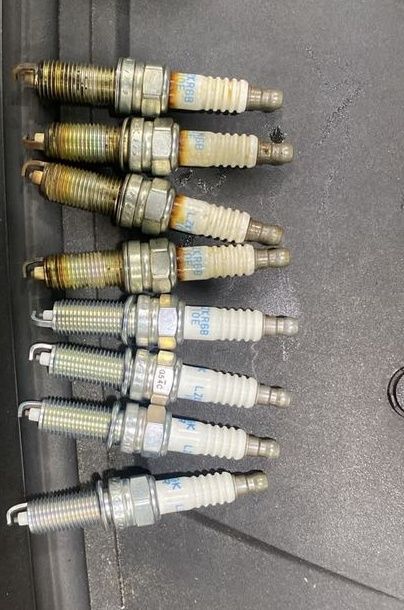

  • Replaced all four spark plugs.
  • Changed the ATF (automatic transmission fluid).
  • Replaced the battery.
  • Road tested the car to confirm the vibration was gone and the car drove cleanly before handover.

The owners waited at the workshop while the work was done and collected the car once everything was ready. The engine went quiet.

Hyundai Elantra after a completed engine mount replacement and major service at our Singapore workshop

Before and after

Before

  • Rattling and vibration from the engine compartment
  • Worn engine and gearbox mounts no longer damping drivetrain movement
  • Engine oil, filters and spark plugs all overdue
  • ATF old and battery testing weak

After

  • New engine and gearbox mount set fitted, vibration gone
  • Engine now quiet at idle and under load
  • Full service complete: fresh oil, clean filters, new spark plugs
  • ATF changed, battery replaced, car road tested and handed back

What a Hyundai Elantra engine mount and service job costs in Singapore

What an engine and gearbox mount replacement with a full major service costs depends on the scope of the service items, so we quote each item before starting.

The mount set itself is a moderate cost item. When the spark plugs, ATF, battery and filters are added alongside, the total grows but the car gets a thorough sort-out in one visit. We quote every item separately so you see exactly what you are paying for.

How to keep the Elantra's engine running quietly

Service the car on schedule. Old engine oil makes the engine run less cleanly and adds load to the mounts with every gear change. Dirty air filters reduce airflow and make the engine work harder. A proper service at the right intervals is the simplest way to protect the mounts from extra wear.

Pay attention to vibration. A new vibration at idle or under light load is worth getting checked before it gets worse. Engine mounts are a straightforward job when caught at the vibration stage. Left until the mount collapses completely, the engine rocks far more freely and can stress surrounding components.

For ATF, do not wait for a shifting problem. Change the automatic transmission fluid at the intervals in the service schedule or at the workshop's recommendation. Old ATF roughens the shifts and warms the transmission unnecessarily.

About the workshop

This Hyundai Elantra (Engine mount replacement and major service) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. We hold a 4.9★ rating from 1,775+ Google reviews.

Signs your Hyundai Elantra engine mounts need attention

Engine vibration or rattling? Get it properly diagnosed first.

WhatsApp us your car model and what you are noticing. We inspect it, show you what we find, and quote before touching anything. Every car is road tested before you collect.

WhatsApp us - engine vibration check

Hyundai Elantra engine mounts: common questions

How do I know if my Hyundai Elantra engine mounts are worn?

The clearest sign is a vibration or rattle from the engine compartment, especially at idle and under light load. A clunk when engaging drive or reverse is another common sign. Our team can show you video of the mount movement on the lift so you can see the fault clearly before any decision is made.

How much does a Hyundai Elantra engine mount replacement cost in Singapore?

It depends on the scope of the service items done alongside the mounts, so we quote each item before starting. We quote every item separately and only proceed with what you approve.

Can I drive with worn engine mounts?

A car with worn mounts is driveable, but the vibration will get progressively worse and the excess engine movement can stress surrounding components like the gear linkage, coolant hoses and electrical connections. Getting it sorted when the vibration first appears is the right approach.

Why change the ATF during an Elantra service?

The automatic transmission fluid on an Elantra ages with heat and use. Old ATF produces slightly rougher shifts and raises the operating temperature of the transmission. At higher mileage, an ATF change is a straightforward step that protects the automatic gearbox and restores smooth shifting.

How long does an Elantra engine mount and service job take?

A mount replacement with a full major service typically takes half a day to a full day. We road test before handover; the car leaves once everything checks out.
