Mercedes E350e Plug-In Hybrid Charging Unit: What Failed and How We Fixed It

This Mercedes-Benz E350e W213 plug-in hybrid came in with a charging system fault. The on-board charger control unit had failed. We replaced it through the boot. At least 6 months warranty on the repair.

Job completed: July 2026

Silver Mercedes-Benz E350e W213 plug-in hybrid at our Sin Ming workshop in Singapore

Job completed: July 2026. Last updated: August 2026. Written from our workshop job records and photos; technical details are generalised where the records do not confirm them.

CarMercedes-Benz E350e W213 plug-in hybrid saloon
SymptomCharging system fault warning; car would not charge from the AC wall box
Fault foundFailed on-board charger (OBC) control unit
Repair doneOBC control unit replaced through boot access; HV cables inspected and refitted
PartsOEM-grade on-board charger control unit
Time takenTimeline confirmed when you book
CostQuoted once the replacement unit was sourced
WarrantyAt least 6 months on the electrical repair

What the owner noticed

The owner got home and plugged in the E350e as usual. Nothing happened. The charging indicator did not light up and the battery showed no sign of charging after an hour. On the dashboard, a fault message pointed to the charging system.

The E350e is a plug-in hybrid: you can drive it on petrol alone, but the whole point of owning a PHEV is to charge it overnight and run the first 40 to 50km on electricity. With the charging system down, that cost-saving benefit disappears entirely and the car becomes an expensive conventional petrol car.

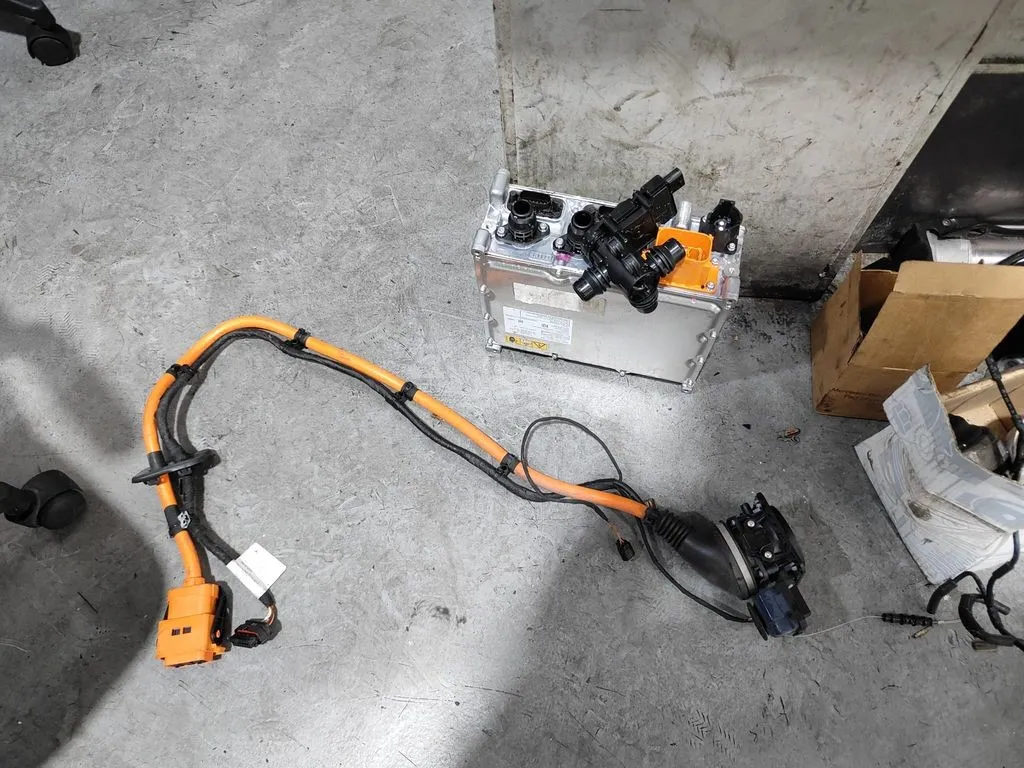

Mercedes-Benz E350e on-board charger control unit and high-voltage cables, removed for replacement at 1 Car Service Singapore

The E350e plug-in system and how it works

The Mercedes-Benz E350e W213 pairs a 2.0-litre turbocharged petrol engine with an electric motor fed by a high-voltage battery pack. The battery sits under the boot floor. The on-board charger (OBC) converts incoming AC power from the wall socket into DC to charge the high-voltage battery. It is essentially the bridge between your home charger and the car's battery pack.

When the OBC fails, AC charging stops entirely. The car still runs on petrol because the combustion engine is independent of the charger, but the battery cannot be topped up from the wall. The hybrid drive system may also show reduced functionality depending on the state of charge.

Silver Mercedes-Benz E350e W213 at our workshop in Singapore, brought in for charging system fault diagnosis

How we diagnosed the fault

We connected our XENTRY dealer-level diagnostic system to the E350e and ran a full high-voltage system scan. The fault codes pointed clearly to the on-board charger control unit: a component failure, not a wiring or connector issue.

The OBC is accessed through the boot floor. We removed the boot liner, located the unit, and confirmed the diagnosis against the fault codes: the control board inside the charger had failed. It was not a relay, not a fuse, and not a simple connector problem. The unit itself needed replacing.

Mercedes E350e boot floor open during on-board charger control unit replacement at our Singapore workshop

Why on-board chargers fail on PHEVs

The OBC in a PHEV runs current through it every time the car charges. In a Singapore household where the owner plugs in nightly, that is 365 cycles a year. Heat, humidity, and repeated thermal cycling stress the internal components over time. Component degradation on the control board is the most common failure mode.

This is not unique to Mercedes. Any PHEV with regular home charging will eventually have OBC wear. The E350e's OBC is housed in a protected location under the boot floor which shields it from road debris but does not prevent internal component fatigue over years of use.

What we did

We replaced the failed on-board charger control unit through the boot floor access.

  • Removed the boot floor liner and trim to access the HV system.
  • Isolated the high-voltage system before handling any HV components.
  • Disconnected the AC input connectors and HV DC output cables.
  • Removed the failed OBC control unit.

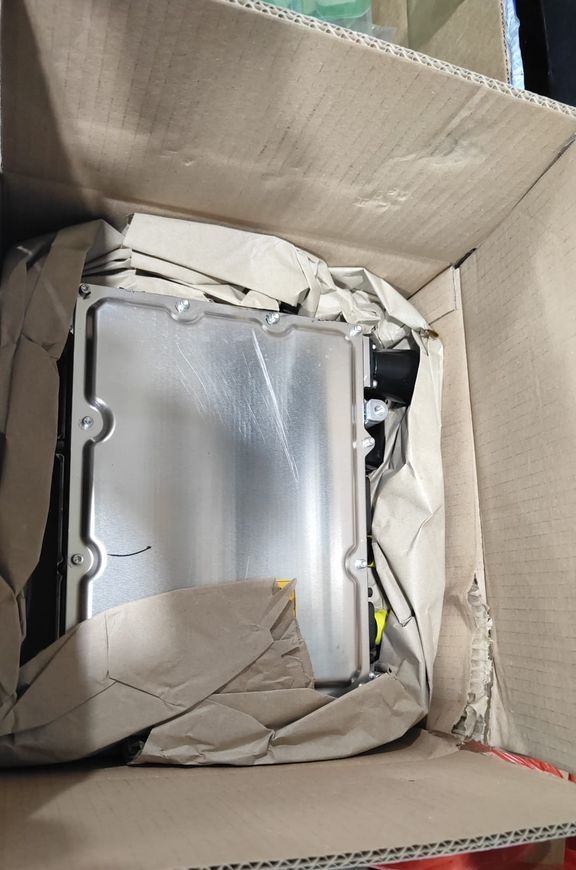

  • Fitted the replacement OBC control unit.
  • Reconnected the HV cables and AC input connectors; checked all connections were secure.
  • Cleared fault codes with XENTRY and ran a charging system function test.
  • Confirmed the car accepted a charge from the AC wall box.

The job carries at least 6 months warranty on the repair. The owner can plug in and charge as normal.

Before and after the OBC replacement

Before

  • Charging system fault on dashboard
  • AC wall-box charging not working
  • PHEV battery not topping up overnight
  • Running purely on petrol, losing the EV cost advantage

After

  • OBC control unit replaced, fault codes cleared
  • AC charging function restored
  • Battery charges overnight as normal
  • At least 6 months warranty on the repair

What an E350e OBC replacement costs in Singapore

What an on-board charger replacement costs depends on part availability and specification, so we quote once the unit is sourced. OBC units for PHEVs are not common-shelf items; lead time from Mercedes or aftermarket suppliers varies.

The alternative is to drive the car without the charging function, which means paying petrol prices on a car with a battery in the floor. Over a year of daily commuting, that difference in running cost usually exceeds the repair cost many times over.

We quote before we start and do not begin work without your approval.

Getting the most from your E350e plug-in system

The OBC is a wear item in a high-mileage PHEV. A few things extend its life:

  • Use a proper AC wall box (Mode 3 charging) rather than a domestic three-pin plug via a long extension cable. Voltage fluctuations from an undersized feed stress the OBC more.
  • If the car shows a charging fault or the charge time suddenly increases, investigate promptly. A partial OBC fault that is ignored can cause full failure and in some cases affect nearby HV wiring.
  • Keep the boot area dry. Water ingress around the boot seal can reach the OBC housing over time.

PHEV charging systems do not require specific scheduled maintenance beyond keeping the connections clean. The first sign of trouble is usually a fault code or a change in charging behaviour.

About the workshop

This Mercedes-Benz E350e (Plug-in hybrid on-board charger control unit replacement) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For Mercedes-Benz, we use dealer-level XENTRY diagnostics. The work is backed by a warranty of at least 6 months. We hold a 4.9★ rating from 1,775+ Google reviews.

Signs your E350e charging system needs attention

E350e charging fault or hybrid warning?

WhatsApp us what fault code or warning light you are seeing on the E350e. We will tell you honestly what it likely needs and quote before any work begins. Electrical and hybrid faults are our everyday work.

WhatsApp us, free honest advice

Mercedes E350e charging system: common questions

How much does it cost to fix the charging system on a Mercedes E350e in Singapore?

It depends on part availability and the specification of the replacement unit, and whether any associated HV wiring needs attention, so we quote once the unit is sourced. We quote before starting any work.

Can you diagnose Mercedes E350e hybrid faults outside the authorised dealer?

Yes. We use dealer-level Mercedes XENTRY diagnostics which reads the same fault codes and HV system data as the authorised dealer. A PHEV charging fault scan is a standard diagnostic procedure at our workshop.

Is a plug-in hybrid charging repair covered under warranty?

The repair we carry out on the OBC unit is backed by at least 6 months workshop warranty. The manufacturer's original vehicle warranty covers factory defects for the warranty period; once that expires, an independent workshop backs its work with its own warranty; ours is at least 6 months on this repair.

Why does my Mercedes E350e only charge slowly or not at all?

Slow or failed charging on an E350e usually points to one of three things: a fault in the on-board charger (OBC) unit, a fault in the AC charging cable or inlet, or an issue with the wall box or supply. We diagnose with XENTRY to isolate which part of the charging chain has failed before replacing anything.
