This Porsche threw a PDK gearbox fault and an overheating warning on a longer drive. Here is how we tracked it from a leaking oil pan through the cooling path to the valve body, and fixed it with original Porsche parts.
Job completed: June 2026
| Car | Porsche with the PDK dual-clutch gearbox |
|---|---|
| Symptom | Gearbox fault warning of possible loss of reverse, then an overheating warning after a long drive |
| Fault found | PDK oil leaking from a worn oil pan, and a valve body temperature sensor reporting wrongly; the coolant changeover valves were renewed during the staged diagnosis |
| Repair done | Replaced the oil pan and PDK fluid, did a clutch adaptation, replaced the coolant changeover valves, then removed and replaced the valve body |
| Parts | Original Porsche oil pan and valve body; new coolant changeover valves |
| Time taken | Staged diagnosis and repair, tested after each step |
| Cost | Depends on what is found, we quote before any work begins |
| Warranty | Road tested before handover, temperatures back to normal |

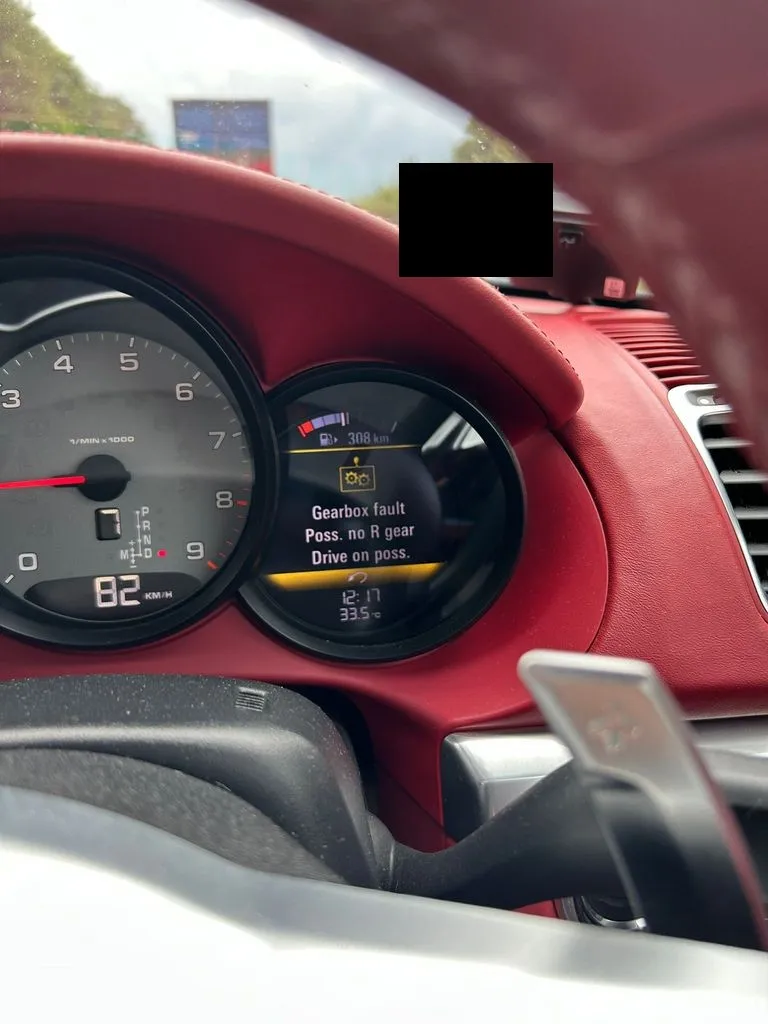

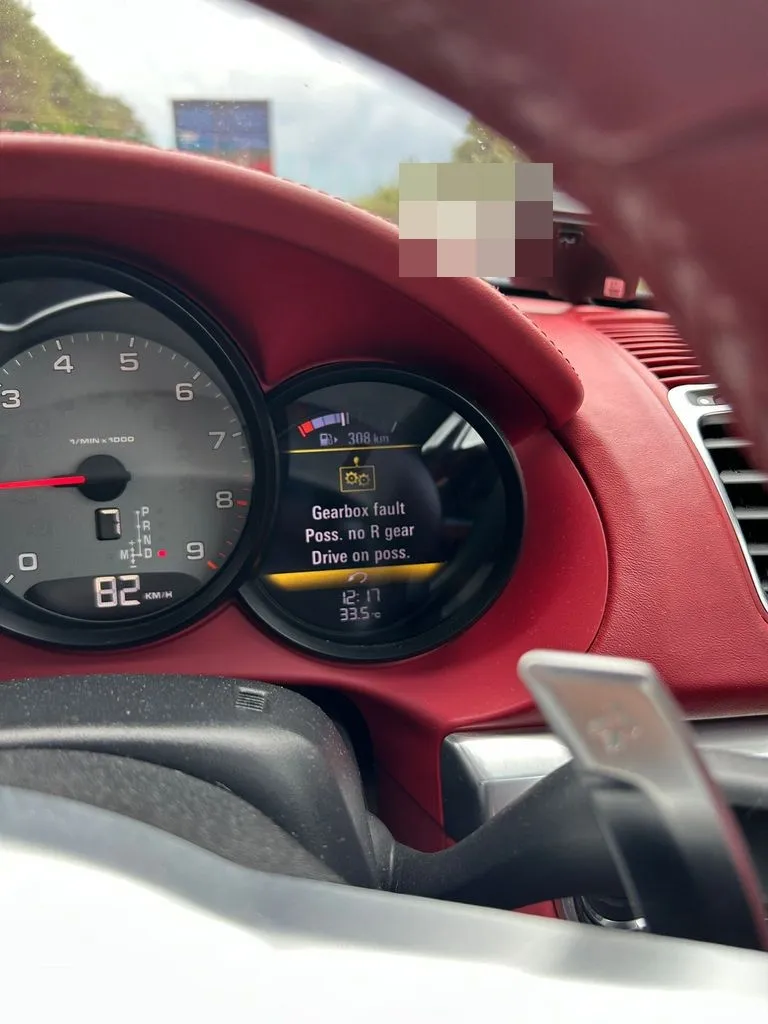

The owner was on a long drive when the trouble started: a gearbox fault flashed up on the dash, the kind that warns of a possible loss of reverse gear with drive still available.
Then the PDK began overheating, and the overheating kept returning on longer drives. The clue was clear: the PDK was getting hot and protecting itself. The owner suspected the gearbox fluid was low, possibly from a small leak at the oil pan, and asked us to investigate before spending money.
This is a Porsche running the PDK, Porsche's dual-clutch gearbox. A PDK is quick and direct, but it is also tightly packaged and it relies on its own transmission fluid to keep cool. The fluid passes through a heat exchanger so the gearbox can shed heat into the cooling system.
That cooling path is the part most owners never think about. Coolant changeover valves feed the PDK heat exchanger, and a temperature sensor at the valve body tells the gearbox how hot it is running. If the fluid is low, or those valves stick, or that sensor reads wrong, the PDK cannot manage its own heat and it throws an overheat fault to protect the clutches. In Singapore heat and stop-start traffic, PDK temperatures climb fast, so any weak link in that chain shows up quickly.
This one took patience. We worked it in stages, because an overheating PDK can have more than one cause stacked on top of each other.

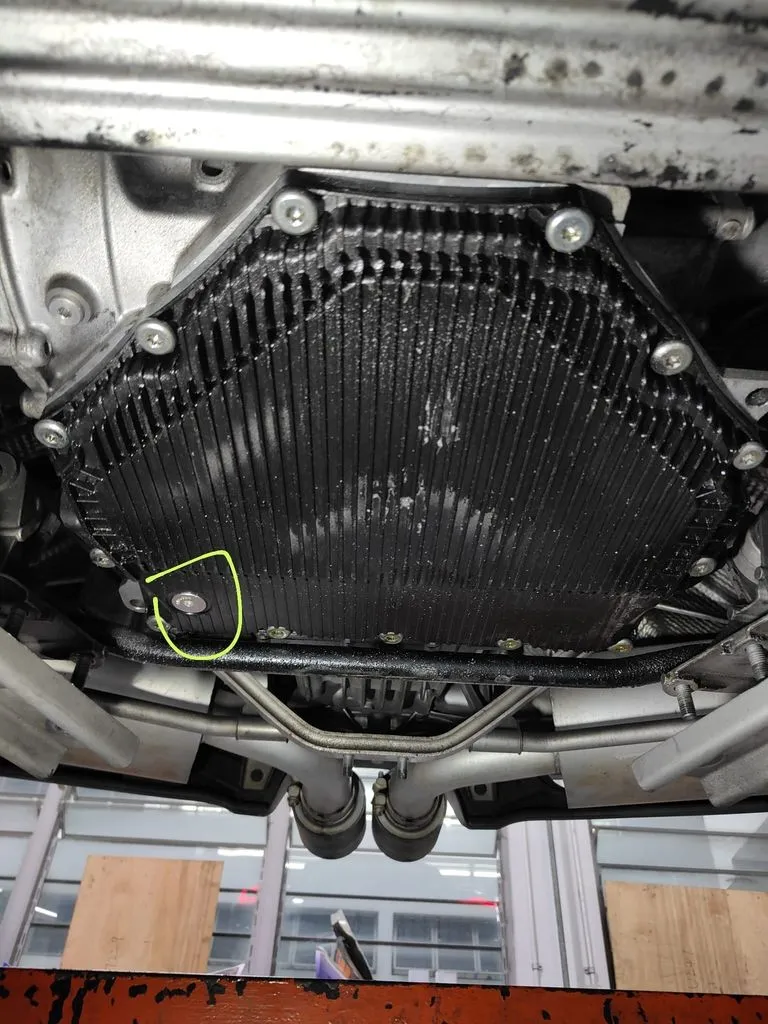

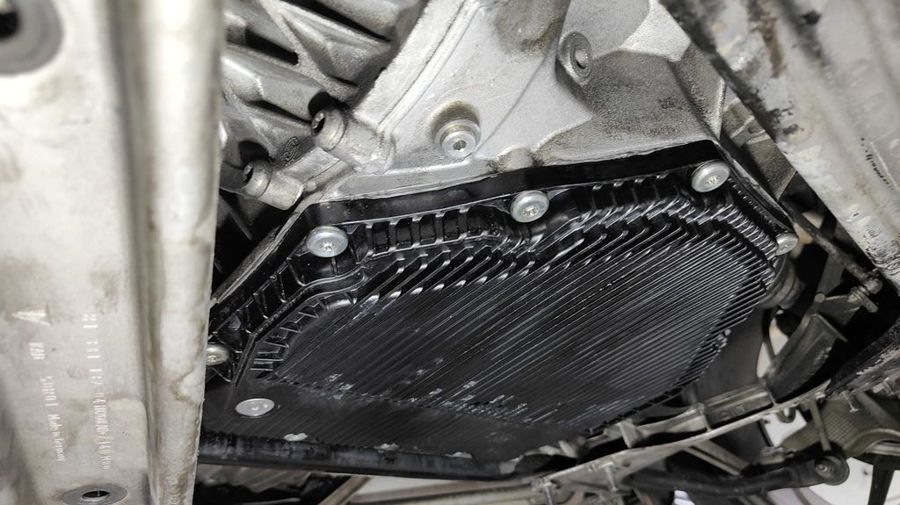

First, the fluid. We put the car on the hoist and found the auto oil pan was worn and weeping PDK gearbox oil. A leaking pan loses fluid, and low fluid alone can make a PDK run hot. We replaced the pan, refilled with fresh PDK transmission fluid, and ran a clutch adaptation so the gearbox could relearn its clutch points.

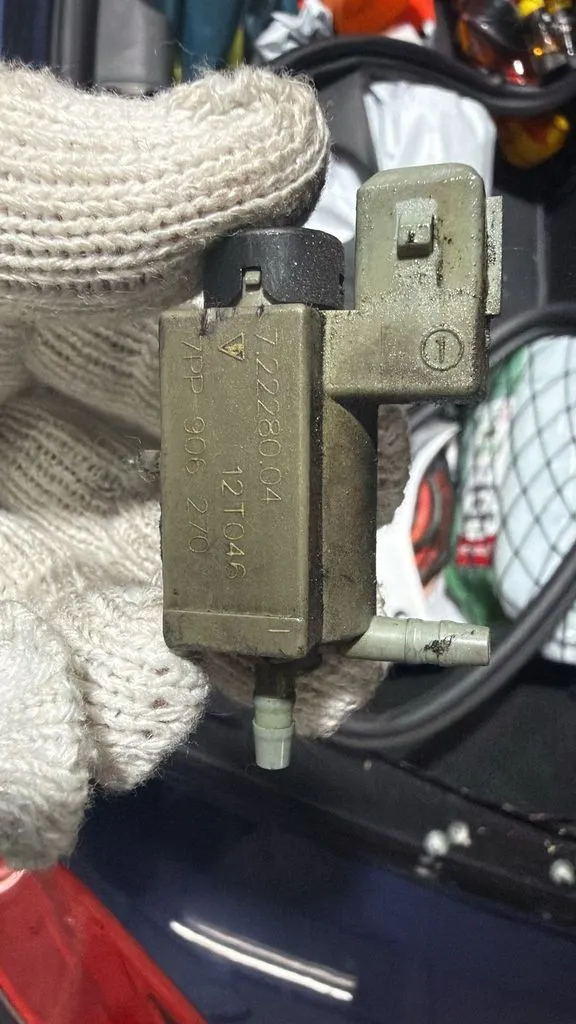

The overheating came back. Reading the live data with a scan tool showed the PDK temperature at around 99 degrees, so the cooling path came next in the staged checks: the two coolant changeover valves feeding the PDK heat exchanger were renewed. The car still overheated, and the remaining fault was traced to the temperature sensor, which sits in the valve body. With the fluid fresh and the cooling path renewed, a sensor reporting the wrong temperature was the remaining cause, so the valve body came out.
A PDK dual-clutch gearbox is cooled by its own transmission fluid running through a heat exchanger. As long as the fluid is at the right level and the cooling path works, the gearbox stays in its happy temperature range. Take away any part of that and heat builds up with nowhere to go.
Here the diagnosis ran in stages. The worn oil pan let fluid weep out, so the level dropped and the gearbox ran warmer than it should. The coolant changeover valves that feed the heat exchanger were renewed so the heat path was known good. The fault that remained was the temperature sensor at the valve body reading wrong, so the gearbox could not trust its own readings. Singapore heat and constant stop-start traffic push PDK temperatures up at the best of times, so while the fault stayed unresolved the overheating kept coming back.
We fixed it in the same order we found it, testing after each step rather than throwing parts at the car.
We kept the owner updated with photos of the leaking pan and the original parts as they went in. The car was road tested before handover and the temperatures held steady.
There is no flat price for a PDK overheating repair, because several different faults can produce the same symptom, so we quote stage by stage as the diagnosis narrows it down.
What moves the price is how far the fault chain goes. A leaking oil pan with fresh fluid and a clutch adaptation sits at the lower end. Add coolant changeover valves and the price rises. A valve body, which carries the temperature sensor, is the bigger item. This is exactly why we diagnose in stages, test after each step, and quote before each stage begins.
Watch your PDK fluid and act on the first overheating warning. A gearbox overheating message is not something to drive through. If you keep going with a hot gearbox, the clutches and internals take the punishment, and a fluid-level problem can turn into a much bigger repair.
Keep the PDK fluid level and condition checked, especially if you ever spot oil spots under the car, which can mean a weeping oil pan. In our heat, the cooling path matters as much as the fluid itself. If a gearbox fault or an overheat message shows up, have it read on a scan tool early. Catching a leaking pan or a failing valve before the gearbox cooks itself is always the cheaper path.
This Porsche (PDK gearbox overheating repair) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For Porsche, we use dealer-level PIWIS diagnostics. We hold a 4.9★ rating from 1,775+ Google reviews.
WhatsApp us your car model, year, mileage and a photo of the dash message. We'll tell you what's likely wrong and what it costs before any work begins. Every repair is road tested before you collect.
It depends on what is causing the overheating, because more than one part can be involved. The scope can cover things like the oil pan and fluid, the coolant changeover valves, or the valve body, and each carries its own cost. We diagnose in stages and quote before each stage begins.
A PDK is cooled by its own fluid through a heat exchanger. Low fluid, sticking coolant changeover valves, or a temperature sensor reading wrong can all stop the gearbox shedding heat. In Singapore heat and stop-start traffic the temperature climbs fast, so an overheat fault may only show after a longer drive.
Yes. The fluid both lubricates and cools the PDK. If the level drops, for example from a weeping oil pan, the gearbox runs hotter and can throw an overheat fault. On this car a leaking pan was part of the problem, but it was not the whole story, which is why we tested after the refill.
The valve body controls the PDK's hydraulics, and a transmission temperature sensor sits inside it. After we proved the fluid and the coolant valves were good and the overheating remained, a sensor reporting the wrong temperature was the cause, so the valve body was removed and replaced with an original Porsche unit.
We worked this one in stages and tested after each step rather than guessing, so it takes as long as the fault demands. A single-cause fault can be quicker. We confirm the timeline once we have read the gearbox and traced the actual source.
