This BMW X4 came in for a scheduled timing kit replacement and a slow cold start that needed tracing. During the job we found two oil leak sources the owner did not know about. Here is what we fixed, and what it cost.
Job completed: August 2026
| Car | BMW X4 at 82,000km |
|---|---|
| Symptom | Slow lag on cold starts, timing kit flagged as due |
| Fault found | Timing kit due for replacement, cam position magnets leaking oil through degraded o-rings, valve cover seeping oil |
| Repair done | Replaced the full timing kit, renewed cam magnet o-rings and fitted a new valve cover set |
| Parts | OEM-grade replacement parts |
| Time taken | Several days |
| Cost | $3,749.60 with GST, itemised and approved before work began |
| Warranty | Road tested before handover |
The owner had been watching the mileage knowing the timing kit was coming due. At 82,000km the car had previously been serviced with us at 73,000km, so we had the history. When the car was dropped off, the owner also mentioned that the last couple of days had brought a new symptom: a sluggish lag on cold starts, the kind where the engine cranks a half-beat longer than it should. We noted it for investigation.

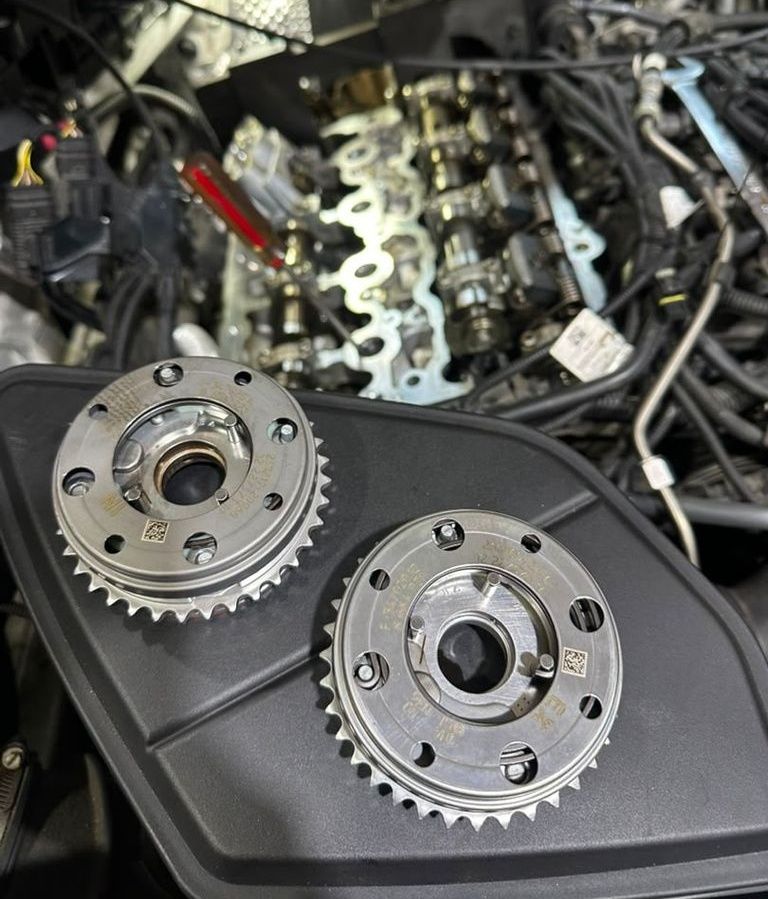

The BMW X4 is a performance crossover with an engine that uses a chain-driven timing system to keep the camshafts in sync with the crankshaft. Unlike a timing belt, the chain and its tensioners are designed to last, but not indefinitely. The cam magnets are solenoid valves that control variable valve timing by directing oil pressure. They sit against the engine block and are sealed with rubber o-rings. When those o-rings degrade, oil seeps out from the magnet mounting point, typically showing up as a film of oil on the engine block. The valve cover is the large plastic or alloy cap that seals the top of the engine. When its gasket hardens and shrinks, oil weeps from the seam.
We connected ISTA, the BMW dealer-level diagnostic system, at drop-off and checked for any stored fault codes related to the timing system. The start-lag complaint was consistent with the timing system being at the limit of its service life, where chain stretch or tensioner fatigue causes a slightly delayed build of oil pressure on a cold start.

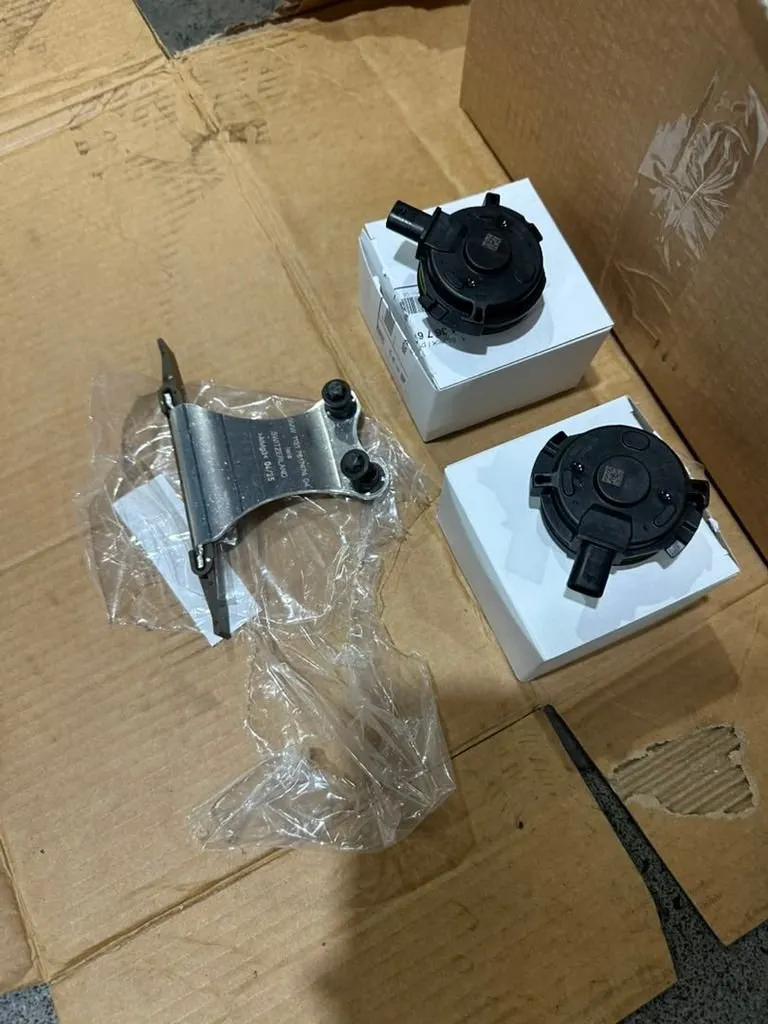

Once the valve cover was off for the timing work, we found the cam position magnets were seeping oil around their o-rings. The o-rings had hardened and shrunk with age and heat cycling, breaking the seal. The valve cover gasket itself was also seeping. Both were quoted to the owner before proceeding.

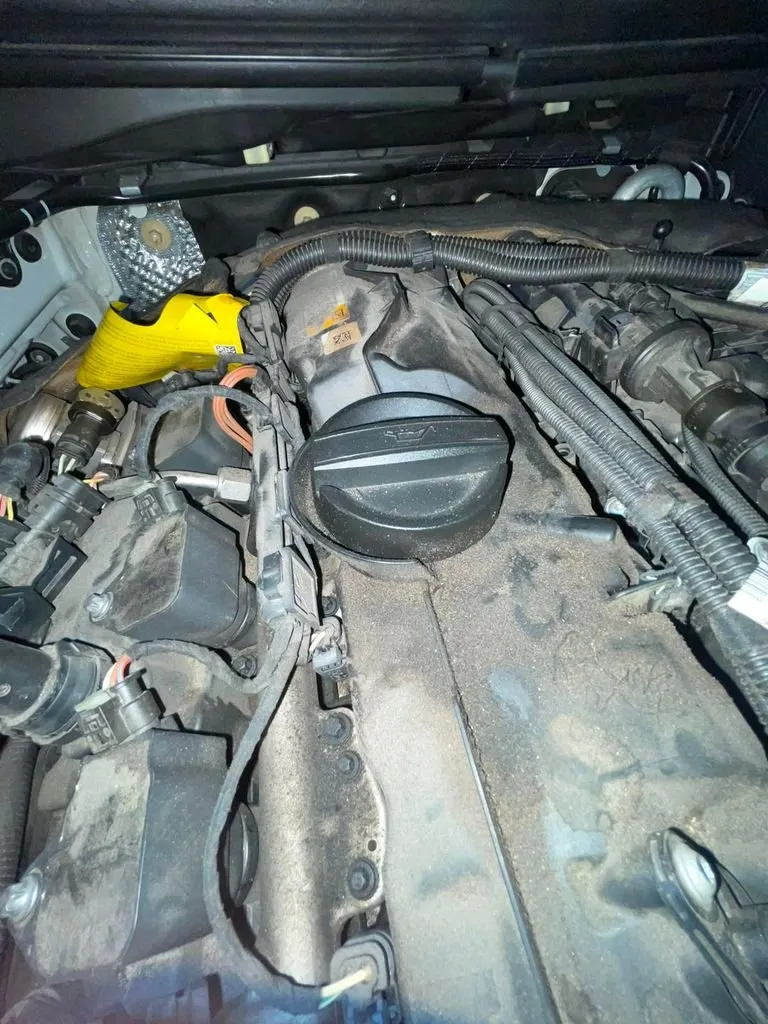

On most BMW engines with variable valve timing, the timing kit, cam magnets and valve cover are connected by both geography and age. The timing components are accessed by removing the valve cover. Once it is off, the cam magnets are visible and exposed for inspection. Finding the o-rings in poor condition at this stage is not a surprise; they age with heat cycling and will need replacing eventually regardless.
Doing these jobs together at the same labour opening saves significant time. Pulling the valve cover twice, once for timing and once for the magnets, doubles the labour. Doing them in a single session keeps the bill lower than it would be across two separate visits.

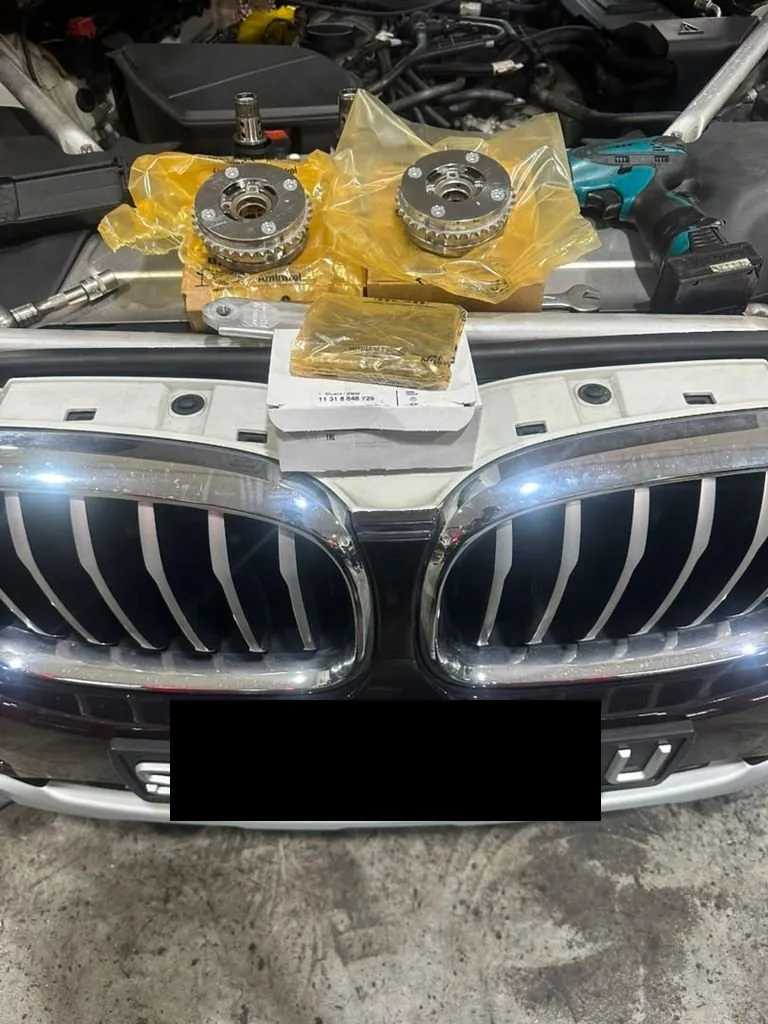

Once the valve cover was removed, we replaced the following:

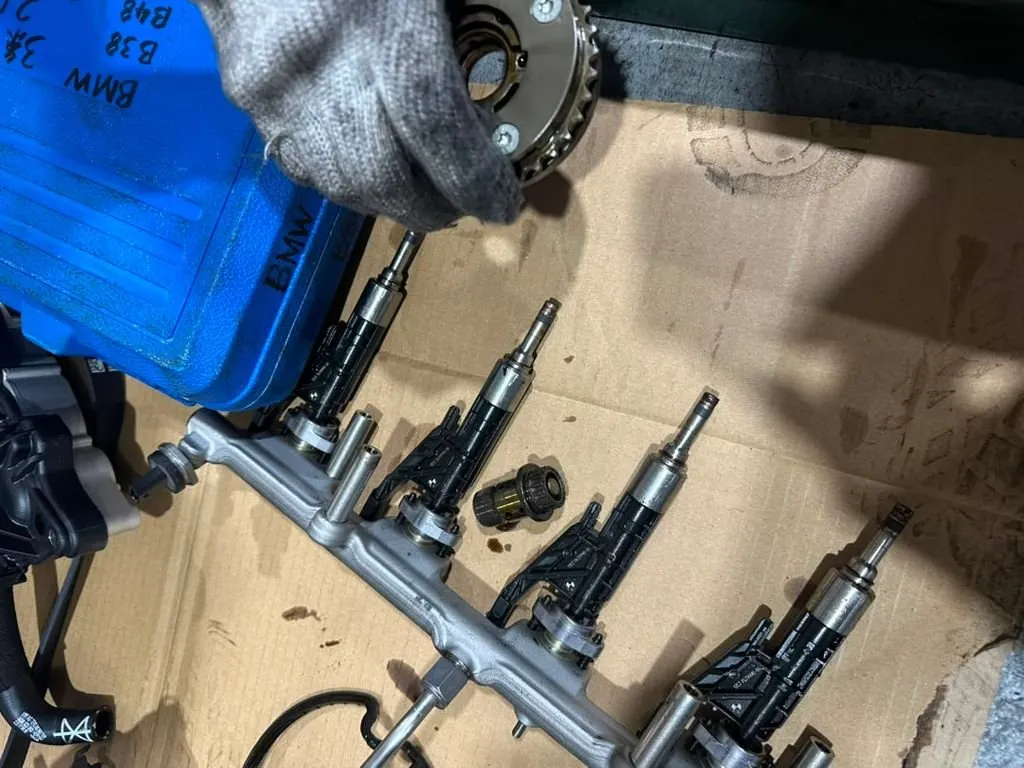

The fuel injectors were flagged as a keep-in-view item but were not approved for this visit. The owner's decision was to do the timing and oil leak work now and revisit the injectors separately. We cleared the fault codes on ISTA after the repair, ran the engine and checked for any remaining leaks. The start-lag on cold crank was gone. The car was road tested before handover.
On this X4 the final invoice was $3,749.60 with GST. The breakdown: timing kit set $1,950, labour $580, cam magnets with o-rings (two pieces) $290, valve cover set $620. The total before GST was $3,440.
Timing kit jobs vary in cost depending on the engine. What is consistent is that catching oil leaks at the same time as the timing work saves labour. The cam magnets and valve cover were found during the same job opening, and doing them together avoided a second valve cover removal later. Every item was quoted and approved before work began.
Have the timing system inspected at major service intervals. A start-lag on a cold morning is a useful early signal. Oil weeping from the valve cover or cam magnet area shows up as a film on the engine block or a faint burning smell when the engine is hot. These are worth catching early, before an oil leak causes secondary damage to sensors or belts nearby. Keeping the oil level topped and changed on schedule also reduces wear on the timing chain tensioners.
This BMW X4 (Timing kit replacement, cam magnet and valve cover repair) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For BMW, we use dealer-level ISTA diagnostics. We hold a 4.9★ rating from 1,769+ Google reviews.
WhatsApp us your car model and mileage. We will connect ISTA, check the timing system and any related oil leaks, and quote every item clearly before work begins.
On this X4 the timing kit set and labour came to $2,530 before GST. With the cam magnet o-rings and valve cover also done in the same opening, the total was $3,749.60 with GST. Cost varies by engine. We quote each item and only do what is approved.
There is no fixed interval published by BMW for chain-driven timing systems, but most workshops inspect the chain and tensioners from around 80,000km onwards, or if any start-lag, rattling or timing-related fault codes appear. This X4 was at 82,000km when the kit was replaced.
A slow cold start, where the engine cranks slightly longer than normal before catching, can point to several causes. On this X4 it was related to the timing system being at the limit of its service life. A worn chain or fatigued tensioner can affect oil pressure buildup on a cold start. ISTA diagnostics helped confirm the timing system as the likely cause.
Yes. We use ISTA, the BMW dealer-level diagnostic system, to read fault codes, check live data and verify repairs. It is the correct tool for clearing timing-related codes and confirming the variable valve timing system is working correctly after the repair.
The cam magnets are accessible from outside the engine without full valve cover removal, but on this job the valve cover was already off for the timing work. Doing both in the same session avoids a second cover removal and reduces total labour cost. If the magnets are the only issue, they can sometimes be done without full cover removal.
Yes. We connect ISTA, the BMW dealer-level diagnostic system, use OEM-grade parts, and document the work. You get dealer-level tools and careful work, with clear itemised pricing and personal attention. Every item on this job was quoted and approved before we started.
