This BMW X4 came in for a thorough going-through. All four brake discs and pads were worn through, the valve cover was leaking and the spark plugs needed replacing. We also found a rear shock absorber showing signs of leaking. Everything that needed fixing was quoted transparently and sorted in one visit.
Job completed: August 2026
| Car | BMW X4 |
|---|---|
| Symptom | Brakes worn, oil leak from valve cover area, spark plugs overdue |
| Fault found | All four brake discs and pads worn through. Valve cover leaking oil. Spark plugs at end of service life. Rear shock absorber showing signs of leaking. |
| Repair done | Full 4-wheel brake overhaul (all discs and pads). Valve cover replaced. Spark plugs replaced. Rear absorber condition noted and reported to owner. |
| Parts | Quality and OEM-grade parts throughout |
| Time taken | Timeline confirmed when you book |
| Cost | Quoted item by item after inspection. Contact us for a current assessment. |
| Warranty | Contact us for warranty details on the specific parts replaced |
The BMW X4 owner wanted a thorough inspection. The car had been in regular use and several items were approaching or past the point where they needed attention. The brakes had been feeling less sharp, there was a hint of oil in the engine bay, and the spark plugs had not been changed in some time.
The owner asked us to go through the car, tell them everything that needed doing, and give a full quote before any work started.
The BMW X4 is a crossover coupe that combines SUV practicality with a lower, sportier roofline. Its braking system is one of the most safety-critical areas on any car: the brakes must work reliably every time, across all four wheels, whether stopping from motorway speed or in slow traffic.
The valve cover on a BMW engine seals the top of the engine and keeps oil inside where it belongs. A leaking valve cover lets oil drip onto hot engine components, creates a burning smell and, if left long enough, can reach belts and sensors.
We connected ISTA diagnostic tools and scanned the car for stored fault codes. We then lifted the car and did a full inspection.
The front and rear brake discs were worn below their minimum thickness. The pads on all four corners were also worn through. A full 4-wheel overhaul was needed.

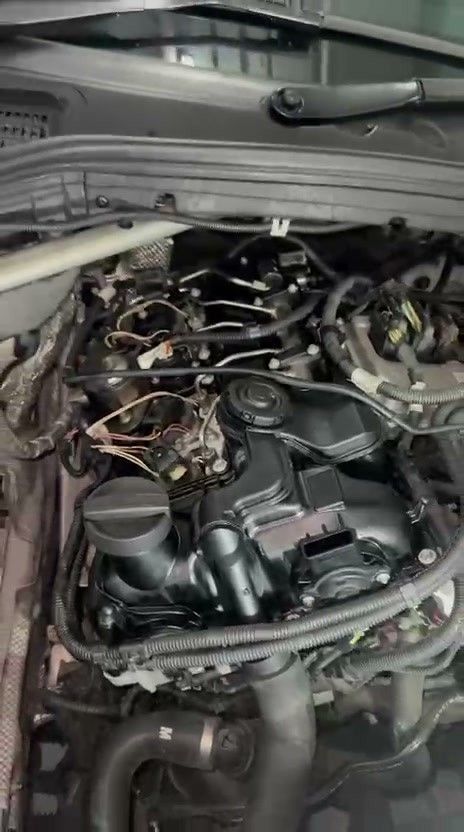

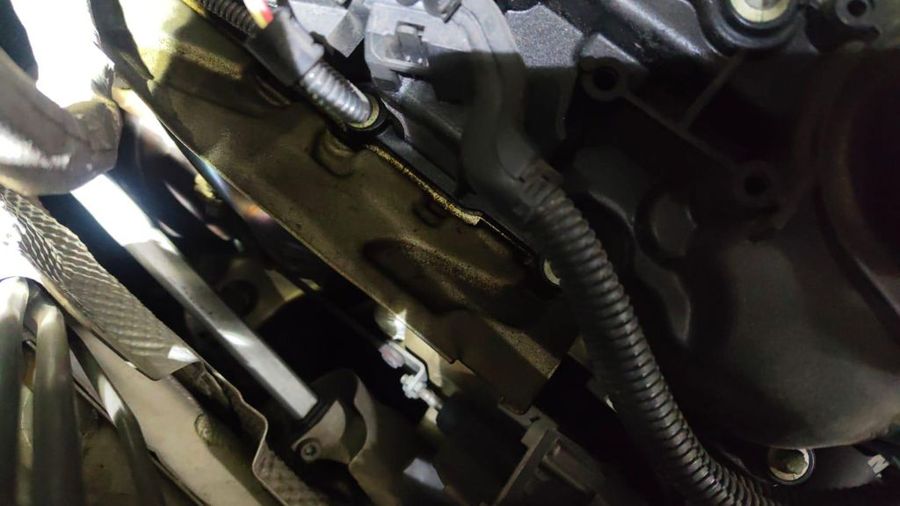

The valve cover was leaking. We compared the old and new covers during the repair and the difference was clear: the old cover had deteriorated sealing surfaces that were no longer holding oil in.
The spark plugs were overdue and showed wear consistent with their age.
We also noted the rear shock absorber was showing signs of leaking. We reported this to the owner as an item to address at the next visit.
Brake pads and discs are direct wear items. When a BMW X4 is used in Singapore's stop-start traffic, the brakes work harder per kilometre than on a highway. At the point where the pads are worn, the discs are usually also worn beyond their safe minimum thickness, which is why replacing all four corners together gives the best braking performance and avoids having to do the job again shortly after.
The valve cover is a rubber and composite component that is subject to constant heat cycles from the engine. Over years of use, the sealing surfaces harden and crack. A slight leak that is barely visible at one service can grow noticeably by the next if it is not addressed.
We carried out the full scope of work agreed before we began.
The cost of a full 4-wheel brake overhaul depends on the BMW model and the parts required. On the X4, replacing all four discs and pads in one go is the right approach once the discs are worn: doing it in two separate front and rear visits costs more in total labour than doing everything together.
Valve cover replacement cost depends on the specific BMW engine. We quote item by item after the inspection, with a full breakdown before any work starts.
Brake wear on a BMW X4 depends heavily on how the car is driven. In Singapore's stop-start traffic, brakes wear faster than the mileage alone might suggest. We recommend having the brake disc thickness measured at every service and the pad depth checked at every oil change. When the discs reach minimum thickness, plan for a 4-wheel overhaul.
For the valve cover, the first sign is usually a faint oil smell from the engine bay or a very slight oil stain on the top of the engine. Catching it at that stage makes the repair straightforward.
Shock absorbers on an older BMW X4 are worth inspecting at each major service. A leaking shock does not fail suddenly, but it progressively reduces ride and handling quality and can accelerate tyre wear.
This BMW X4 (4-wheel brake overhaul, valve cover replacement, spark plugs, suspension inspection) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For BMW, we use dealer-level ISTA diagnostics. We hold a 4.9★ rating from 1,775+ Google reviews.
WhatsApp us your BMW model and what you are seeing. We will connect ISTA diagnostic tools, lift the car and give you an honest, itemised quote before any work begins.
It depends on the specific model and which discs and pads are needed. Replacing all four corners in one visit is more efficient than splitting it front and rear. WhatsApp us your car details and we will give you a current quote.
When the discs are worn to minimum thickness, replacing all four corners together gives you the best and most consistent braking performance. Mixing new and old disc thicknesses can affect brake balance.
A faint oil smell from the engine bay is the first sign. If you look at the top of the engine and see a greasy film or oil residue, the valve cover seal may be failing. We check this at every inspection.
Yes. We use ISTA, the BMW dealer diagnostic system, to scan the car before and after any repair. This is how we confirmed all fault codes were clear after the brake and valve cover work on this X4.
A leaking shock absorber progressively loses its damping ability. It does not fail suddenly, but over time the ride and handling quality drop and tyre wear can increase. We recommend addressing it at your next service rather than leaving it indefinitely.
