This BMW 216 made noise when driving. Our team advised new front suspension parts for the noise, and the inspection also found engine and gearbox mounts that had sunk and were leaking, an engine oil leak and a cracked driveshaft boot leaking grease. Every item was quoted line by line and approved before it was done. Final bill: $6,500 nett with GST.
Job completed: August 2026
| Car | BMW 216 |
|---|---|
| Symptom | Noise when driving |

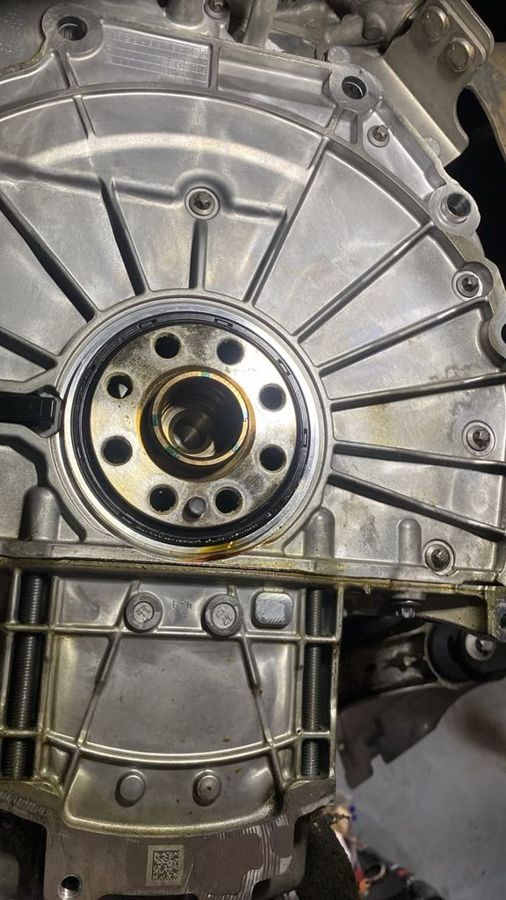

| Fault found | Noise when driving, with front lower arms, linkages, stabilizer bar bushes and rear linkages advised for replacement; engine and gearbox mounts sunk and leaking; engine oil leak at the timing cover and flywheel side; a cracked driveshaft boot leaking grease; one faulty rear parking sensor |

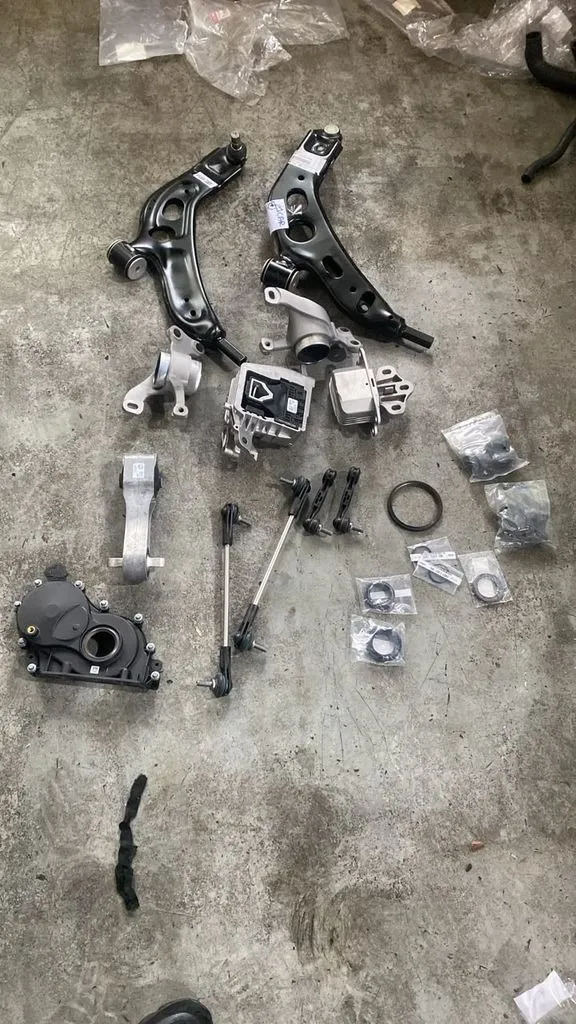

| Repair done | Replaced front lower arms with ball joints and bushes, front and rear linkages and front stabilizer bar bushes; wheel alignment; replaced the engine and gearbox mount set; replaced the timing cover and the flywheel, torque converter and driveshaft oil seals; replaced both front inner driveshaft boots with CV joints; replaced one rear parking sensor |
| Parts | Original parts, as quoted |
| Time taken | Quoted at 3 days of downtime |
| Cost | $6,500 nett with GST for the full scope, itemised, with each item approved before it was done. |
| Warranty | No warranty term for this job; every item quoted and approved first |
The owner noticed noise from the car when driving. There was also a parking sensor problem, and the owner believed a front sensor was the faulty one.
Noise is easy to live with for a while. But suspension noise can come from the parts that hold the wheels in place, and a car on the hoist can show more than the driver can hear.
This BMW 216 has driveshafts to the front wheels, and that matters for this job: the inner driveshaft boots and CV joints sit close to the suspension parts we were already replacing.
Our team listed every finding and recommendation for the owner:
For the parking sensor, the computer diagnosis showed a fault on the rear sensors only, not the front. We told the owner we would settle the rear first and go step by step. Removing the rear bumper confirmed one of the four rear sensors was faulty, so only that one was replaced.
Suspension joints and bushes, rubber mounts, oil seals and driveshaft boots are all parts that age with heat and mileage, and on one car they can come due around the same time.
The owner saw each group with its reason and its price, and chose to do everything in one visit.
Front suspension:
Mounts and leaks:
The timing cover work needed the engine oil drained. Our technician advised fresh oil, but offered to reuse the existing oil. The owner had just had the car serviced, so we reused it and topped it up as the owner asked.
Parking sensor:
After collection, the owner told us the front suspension was perfect, but the rear still made a squishing sound over humps. The owner brought the car back later in August and our team checked the rear. Afterwards, the owner told us the problem was solved.
From our team's record of this job. Number plates are pixelated.
Every line was quoted before GST and approved before that work was done:
The final bill came to $6,500 nett with GST.
The owner saw each group separately, with the reason for it. That is how you should be quoted: you can see exactly what each part of the bill is for.
Ask for an underside check at every service. Oil on the mounts, a wet patch around the engine and gearbox join, or a split driveshaft boot can often be seen on the hoist before they fail.

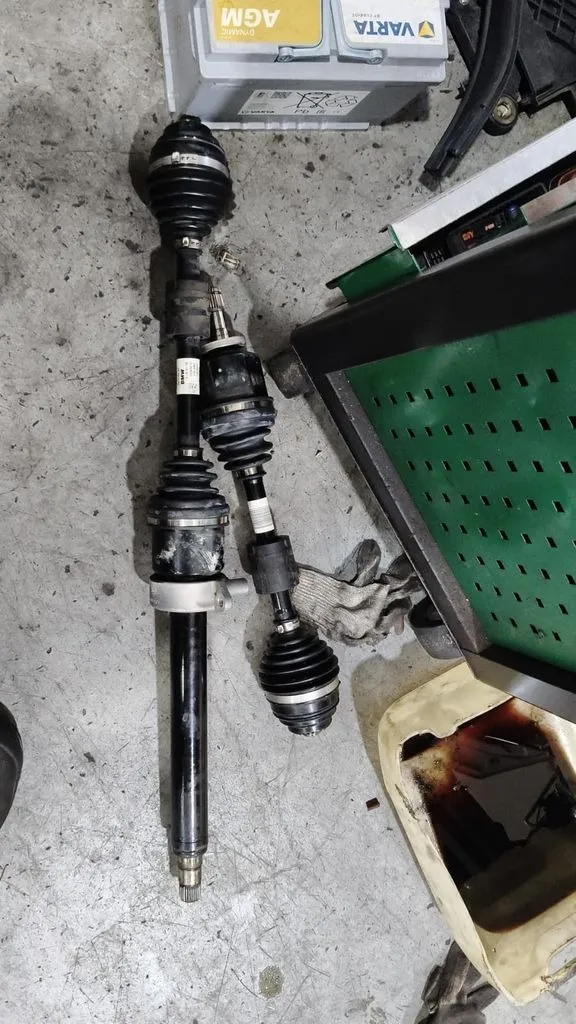

A split boot is the one to act on quickly. Once the grease is out and dirt gets in, the CV joint can wear, and a boot replacement can turn into a CV joint replacement. A new noise over humps is also worth a check before it spreads to the parts around it.
This BMW 216 (front suspension repair, engine and gearbox mount replacement, engine oil seal and driveshaft boot repair) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For BMW, we use dealer-level ISTA diagnostics. We hold a 4.9★ rating from 1,836+ Google reviews.
WhatsApp us your BMW model and what you are hearing. We inspect on the hoist, list every worn or leaking part with its price, and you choose what goes ahead.
On this car, the front lower arms, front and rear linkages, front stabilizer bar bushes, alignment and labour came to $1,660 before GST. The whole visit, including mounts, oil seals, driveshaft boots and a parking sensor, was $6,500 nett with GST. We inspect and quote every line for your car first.
For work like this, what matters is seeing each part, its price and the reason for it before you agree. This owner got that list and approved it. After a return visit for a rear noise over humps, the owner told us the problem was solved and they were very happy with the outcome.
This full scope was quoted at 3 days of downtime. We confirm the timeline for your car when you book.
Yes. We use ISTA, the dealer-level diagnostic system for BMW. On this car, the computer diagnosis is what showed the parking sensor fault was at the rear, not the front.
