This Subaru came in with automatic gearbox problems. We stripped the gearbox completely, replaced the worn clutch packs, solenoids and filter, rebuilt it properly, and backed the work with our 2 years / 40,000 km warranty.
Job completed: October 2026
| Car | Subaru |
|---|---|
| Symptom | Automatic gearbox faults requiring a full overhaul |
| Fault found | Worn clutch packs, degraded solenoids and dirty ATF and filter in the automatic gearbox |
| Repair done | Full gearbox strip-down: removed gearbox from car, disassembled completely, replaced clutch packs, solenoids, ATF filter and bearings, reassembled and refilled with fresh ATF. Front brake pads and discs also replaced. |
| Parts | Quality overhaul parts and ATF throughout |
| Time taken | Timeline confirmed after inspection and strip-down |
| Cost | Quoted after inspection and strip-down |
| Warranty | 2 years / 40,000 km on the full gearbox overhaul |
The owner brought the Subaru in with automatic gearbox issues that needed a proper fix, not a band-aid. The gearbox needed a full overhaul rather than just a fluid change.
The owner also wanted the front brakes checked, and asked our team to disconnect the side mirror to address an intermittent noise. We lifted the car and got to work.
The Subaru's automatic gearbox is a hydraulically controlled unit that uses multiple clutch packs, solenoids and a valve body to select and hold gears. Inside, friction-faced clutch discs press against steel plates under hydraulic pressure to engage each gear ratio.
When the clutch packs wear, the friction material degrades and the gearbox loses its ability to hold a gear cleanly. Solenoids control the hydraulic pressure and shift timing. When they degrade or stick, shift quality drops and the gearbox can behave erratically. A full overhaul replaces all the wear items inside the unit rather than patching individual symptoms.

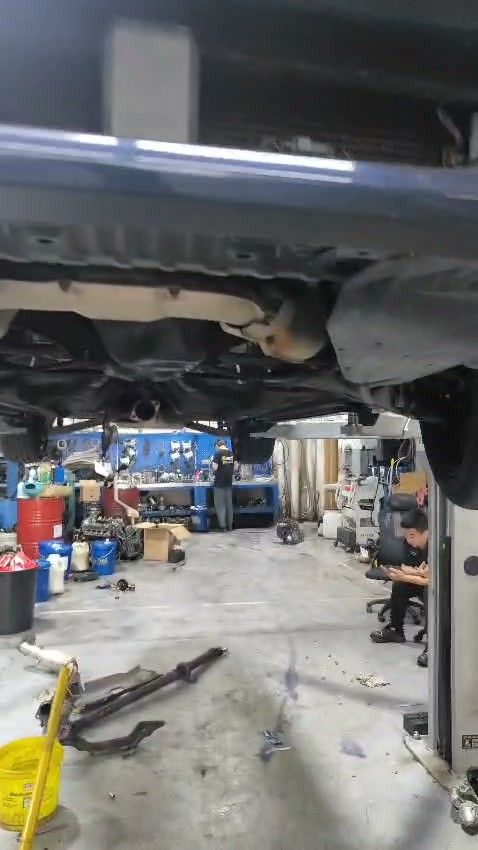

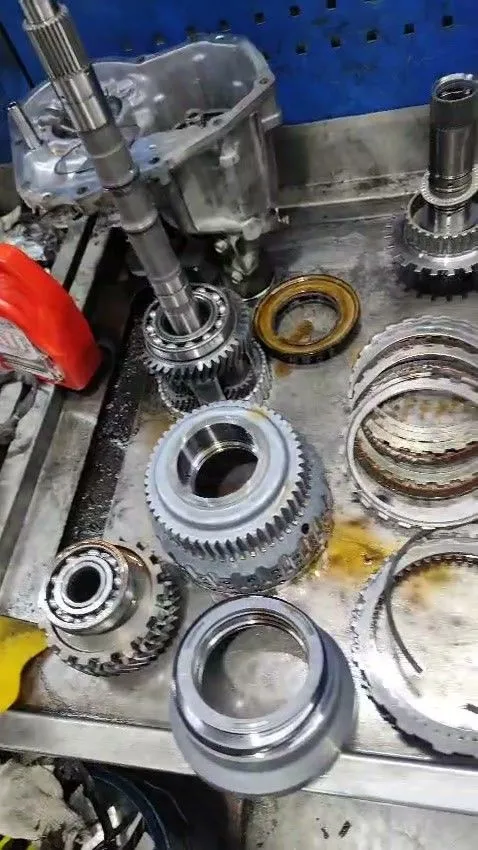

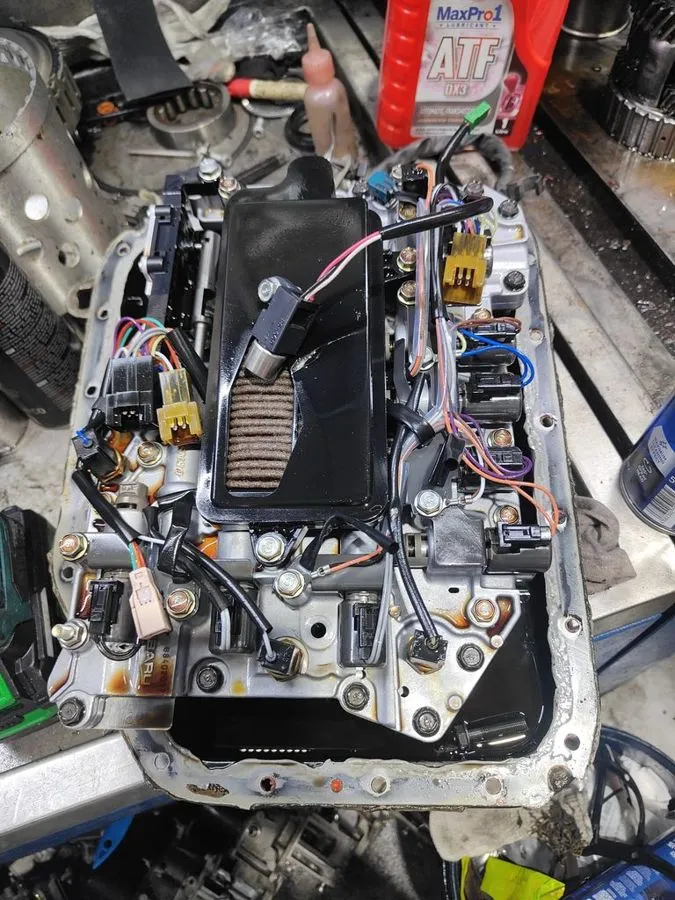

We lifted the car and removed the gearbox for a full inspection. Once on the workbench we opened the unit completely, removing the valve body and exposing the solenoid assembly, wiring harness and ATF filter.
Inside we found worn clutch packs, degraded solenoids and an ATF filter that was past its service life. The condition of the components confirmed that a full overhaul was the right call, not a partial repair.

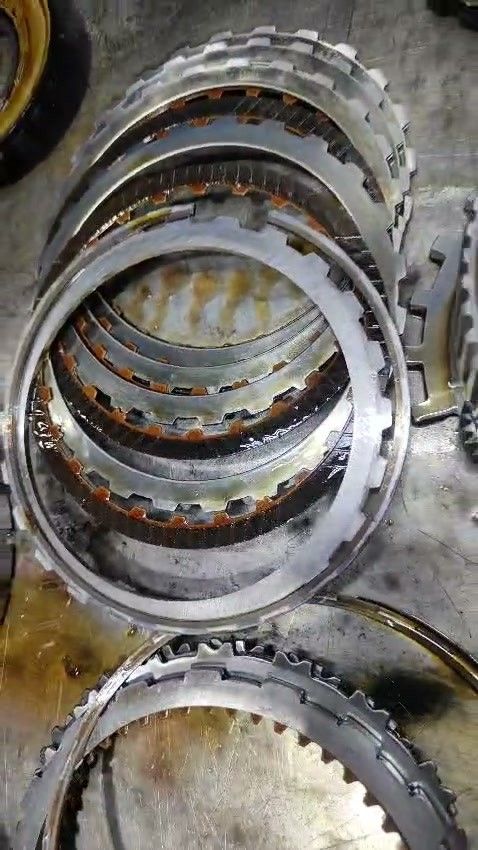

Automatic gearbox clutch packs wear gradually over time. The friction material on the clutch discs thins out, reducing the clamping force that holds each gear. Once the material is worn, no amount of fresh ATF will restore the clutch pack's ability to hold cleanly.
Solenoids suffer from varnish deposits and wear in the solenoid bore as the ATF breaks down. They begin to stick, which causes inconsistent hydraulic pressure and erratic shifts.
A fluid change at this stage helps maintain what is left but does not fix worn clutch packs or sticky solenoids. A full overhaul, which replaces all the friction material, solenoids, filter and bearings, restores the gearbox to a known-good condition.
Full gearbox overhaul:
We also replaced the front brake pads and discs, and attended to the side mirror at the owner's request.
From our team's record of this job. Number plates are pixelated.
A full gearbox overhaul is priced after we inspect the unit and confirm exactly what needs replacing. We do not guess from outside the car. We lift and inspect first, then quote clearly before work begins.
The overhaul is backed by our 2 years / 40,000 km warranty on the gearbox. WhatsApp us your car details and we will give you a more specific guide.
Regular ATF changes help extend the life of an automatic gearbox. Fresh ATF maintains the hydraulic properties needed for clean shifts and reduces varnish build-up on the solenoids.
If you notice any change in shift quality, such as hesitation between gears, a slight slip when pulling away, or jerking on the overrun, have the gearbox checked promptly. Catching wear early means a simpler repair. Leaving it until the gearbox fails completely usually means a full overhaul at minimum.
This Subaru (Full automatic gearbox overhaul) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. The work is backed by our 2-year, 40,000km warranty. We hold a 4.9★ rating from 1,831+ Google reviews.
WhatsApp us your Subaru model and what it is doing. We will lift the car, check the gearbox, and give you a clear diagnosis before any work begins. A full overhaul comes with a 2 years / 40,000 km warranty.
The cost depends on the specific Subaru model and the condition of the gearbox internals once stripped. We inspect and strip the unit first, then give you a clear quote before committing to the work. WhatsApp us your car details for a more specific guide.
Our full gearbox overhaul is backed by a 2 years / 40,000 km warranty. That covers a complete strip-down and rebuild, not a partial repair or fluid change.
Sometimes. If only one component has failed and the rest of the gearbox is in good condition, a targeted repair may be possible. On this Subaru the clutch packs and solenoids were both worn, which called for a full overhaul. We always inspect and advise honestly before recommending a repair path.
We confirm the timeline after inspection and let the owner know before work begins.
A service changes the ATF and filter. An overhaul is a full strip-down: the gearbox comes out of the car, every internal component is inspected, and worn parts including clutch packs, solenoids and bearings are replaced. A service maintains a healthy gearbox. An overhaul restores a worn or faulty one.
