Volvo V40 Seized Aircon Compressor: Smoke, No Cold Air, and a Full Fix

This red Volvo V40's seized AC compressor was burning through the accessory belt and had stopped cooling the cabin. We replaced the compressor, the condenser, the belt, brake discs and pads all round, and the engine mounts in one visit. At least 6 months warranty on the aircon repair.

Job completed: July 2026

New Volvo V40 aircon compressor and condenser parts laid out before fitting at 1 Car Service Singapore

Job completed: July 2026. Last updated: August 2026. Written from our workshop job records and photos; technical details are generalised where the records do not confirm them.

Car: Volvo V40, red
Symptom: Burning smell from engine bay, no cold air from aircon
Fault found: Seized aircon compressor locking the belt and smoking it
Work done: Compressor, condenser, accessory belt, brake overhaul all round, engine mounts
Warranty: At least 6 months on the aircon repair

Car	Volvo V40
Symptom	Burning smell from engine bay, aircon not cooling, belt squealing
Fault found	Seized aircon compressor locked the accessory belt; condenser also required replacement
Repair done	Replaced compressor, condenser and accessory belt; full brake overhaul all four corners; engine mounts replaced
Parts	Volvo-compatible quality compressor and condenser; OEM-grade brake parts
Time taken	Timeline confirmed when you book
Cost	Quoted after the seized compressor and contamination were confirmed
Warranty	At least 6 months on the aircon repair

What brought the Volvo V40 in

The owner noticed a burning smell from the engine bay and the aircon had stopped cooling. At first, the smell came only when the aircon was switched on. Then it started appearing even with the aircon off. By the time the car reached us, the accessory belt was visibly stressed.

A seized AC compressor is not a subtle fault. When the compressor seizes, the belt that drives it is forced to slip over a locked pulley. Rubber burns against metal, the belt frays, and eventually it snaps. If the belt also drives the alternator or power steering pump, you can lose those too without warning.

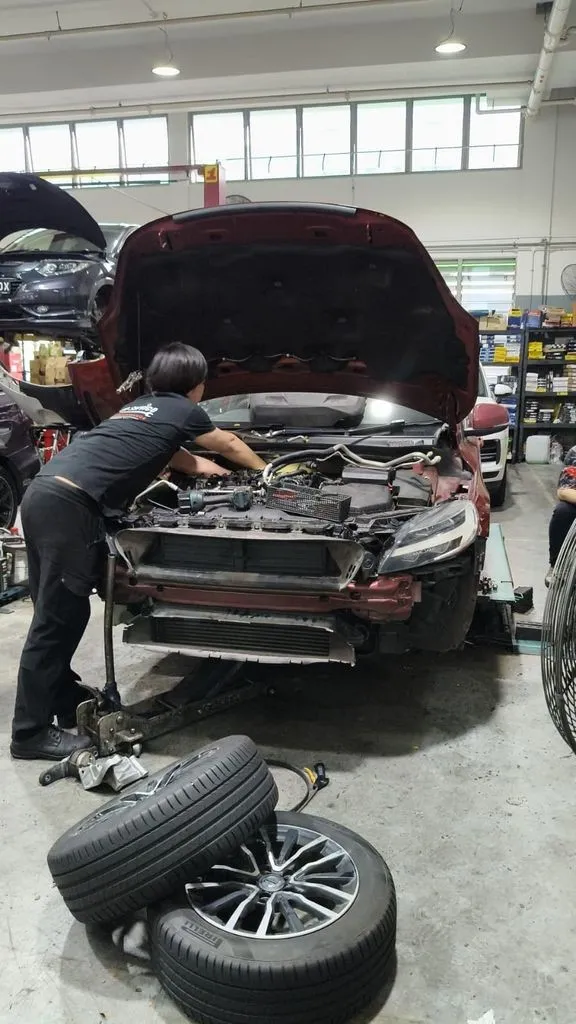

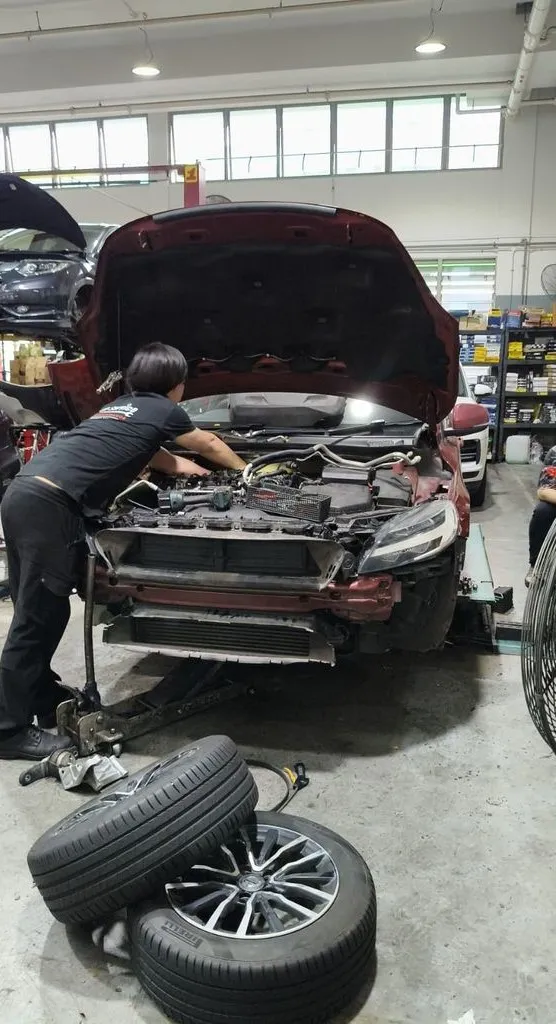

Red Volvo V40 at our Singapore workshop for aircon compressor seizure repair

How the Volvo V40 AC compressor works

The V40's air conditioning system uses an engine-driven compressor. A serpentine belt from the crankshaft drives the compressor pulley. Inside the compressor, a clutch engages and disengages the compression mechanism depending on whether the AC is switched on.

When a compressor seizes internally, the rotating internals stop moving but the pulley keeps being driven by the belt. The result is belt slip, heat, smoke, and eventually belt failure. The condenser, which sits in front of the radiator and dissipates heat from the refrigerant, had also deteriorated and needed replacing at the same time. Replacing the compressor without checking the condenser leaves old debris circulating and can damage the new compressor.

What we found on inspection

We checked the accessory belt, the compressor clutch, and the belt routing. The compressor was seized: the clutch had failed internally and the compressor was locked. The belt showed heat damage consistent with weeks of running against a seized pulley.

We also checked refrigerant pressure. When a compressor seizes, metal debris can circulate into the condenser and refrigerant lines. The condenser had debris contamination and a pinhole leak, so it needed replacing along with the compressor. Fitting a new compressor without flushing the system and replacing a debris-contaminated condenser is the fastest way to kill the new compressor within months.

New Volvo V40 aircon compressor and condenser ready for installation at our Singapore workshop

Why AC compressors seize

AC compressor seizure in Singapore typically happens for one of three reasons: lubrication failure, refrigerant loss, or simply age and heat cycles.

The compressor is lubricated by oil that circulates with the refrigerant. When refrigerant leaks out slowly, the oil level drops with it. A compressor running with insufficient lubrication generates heat at the internal bearings, which eventually causes them to seize. Singapore's year-round heat means the aircon runs more hours per year than in temperate countries, which accelerates wear.

For this V40, the most likely cause was a slow refrigerant leak that had been going unnoticed. The compressor had been running dry for long enough for the bearings to fail.

Everything we did on this visit

We replaced the seized compressor and contaminated condenser, then addressed the other items we found during the inspection.

Aircon system:

Recovered and disposed of the remaining refrigerant properly.
Removed the seized AC compressor.
Flushed the refrigerant lines to remove metal debris.
Fitted a new compressor and condenser.
Replaced the accessory belt.
Recharged the system with fresh refrigerant and tested cooling output.

Brakes:

Measured pad thickness on all four corners: all were due.
Replaced brake discs and pads on all four wheels with OEM-grade parts.

Engine mounts:

Checked and replaced worn engine mounts causing slight vibration at idle.

The car was confirmed cooling properly and road tested before the owner collected it. The aircon repair carries at least 6 months warranty.

Before and after the repair

Before

Burning smell from engine bay when aircon was on
No cold air from the cabin vents
Accessory belt heat-damaged from the seized compressor
Brakes due on all four corners
Engine vibration at idle from worn mounts

After

Seized compressor replaced; system flushed and condenser renewed
Cold air confirmed from all vents
New accessory belt fitted
Full brake overhaul on all four corners done
Engine mounts replaced, idle smooth
At least 6 months warranty on the aircon repair

What a Volvo V40 aircon compressor replacement costs in Singapore

What an AC compressor replacement costs depends on compressor availability, whether the lines need flushing, and how many other items need attention at the same time, so we quote after opening the system.

The cost of ignoring a seized compressor climbs quickly: a snapped belt can leave you stranded, and if the belt also drives the alternator, the battery drains in minutes. Replacing the compressor before the belt snaps keeps the job to one visit.

We quote before we start and do not proceed without your approval.

How to avoid a seized aircon compressor

A few habits keep the AC system in good shape:

Run the aircon for at least 10 minutes every week, even during cooler periods. Regular cycling keeps the internal oil moving and lubricating the seals.
If the aircon suddenly feels less cold, have the refrigerant level checked. Low refrigerant is often the first sign of a slow leak, and catching it early prevents compressor damage.
Listen for new belt squealing. A new squeal when the AC is switched on can mean the compressor clutch is slipping, which shows up before a full seizure.
Have the aircon system inspected annually or at every major service. A refrigerant check and leak test costs little and catches problems before they become expensive.

About the workshop

This Volvo V40 (Seized aircon compressor and condenser replacement) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For Volvo, we use dealer-level VIDA diagnostics. The work is backed by a warranty of at least 6 months. We hold a 4.9★ rating from 1,775+ Google reviews.

Signs your Volvo aircon compressor is failing

Burning or rubbery smell from the engine bay, especially when the aircon is on
Belt squealing that starts or worsens when the aircon is switched on
Aircon suddenly blowing warm or only slightly cool
Grinding or rattling noise from the front of the engine
Visible belt wear, fraying, or cracks when checked
Aircon working only when driving fast, not at idle

Burning smell from the engine bay or no cold air?

WhatsApp us what you are experiencing: which Volvo you drive, what you hear, what you smell, and whether the aircon stopped working suddenly or gradually. We will tell you honestly what the likely fault is and quote before any work starts.

WhatsApp us, free honest advice

Volvo V40 aircon compressor: common questions

How much does a Volvo V40 aircon compressor replacement cost in Singapore?

It depends on compressor availability and the condition of the rest of the AC system, which is why we open and check the system first. We quote before we start.

Does the condenser have to be replaced at the same time as the compressor?

Not always, but when a compressor seizes, it sends metal debris into the refrigerant lines and often into the condenser. A contaminated condenser will damage a new compressor within months. We inspect the condenser whenever we replace a seized compressor, and replace it if contaminated. Skipping this step is a false economy.

How long does an aircon compressor last on a Volvo V40?

Typically 8 to 12 years or around 100,000 to 150,000km in Singapore conditions. The hot and humid climate means the AC runs more hours per year than in cooler countries, which accelerates wear. A slow refrigerant leak that goes undetected shortens compressor life significantly.

Is there a warranty on the aircon compressor replacement?

Yes, we give at least 6 months warranty on the aircon repair including the compressor and condenser replacement.

Can I still drive the car if the aircon compressor is seized?

You can drive with the aircon switched off if the belt is not yet damaged, but the risk is real. A seized compressor can snap the serpentine belt without warning. If the same belt drives the alternator and power steering, you lose both those systems too. We recommend having it inspected and repaired as soon as you notice the burning smell or belt squeal.
