This Audi A3 came in with a gearbox malfunction warning on the dash, though it could still be driven. We confirmed a fault in the DSG's mechatronic unit and fitted a reconditioned unit, coded and tested before handover.
Job completed: June 2026
| Car | Audi A3, DSG / S tronic dual-clutch |
|---|---|
| Symptom | Gearbox malfunction warning on the dash; the car could still be driven |
| Fault found | A fault in the DSG's mechatronic unit, diagnosed and confirmed at our workshop |
| Repair done | Replaced the mechatronic unit with a reconditioned unit, coded and adapted it to the car, then tested the car |
| Parts | Reconditioned mechatronic unit and quality parts |
| Time taken | Timeline confirmed after diagnosis |
| Cost | Confirmed with the owner once the fault was diagnosed, before work began |
| Handover | Reconditioned unit fitted, coded and tested before handover |
The owner messaged us about an Audi A3 showing a gearbox malfunction warning on the dash. The car could still be driven.
The owner wanted to know what the fix was, how long the car would be off the road and what it would cost. The owner also wondered if it could be a sensor or a transmission fluid leak. The ask was simple: find out what was actually wrong, then fix it properly.
The car is an Audi A3 with the DSG dual-clutch gearbox, which Audi badges as S tronic. A DSG is not a normal automatic. It is really two clutches and two gear sets working together, controlled by a part called the mechatronic unit.
The mechatronic unit is the brain of the box. It is an electro-hydraulic module, electronics plus solenoids and valves, that decides which clutch to engage and when, and pushes the oil pressure to make the shift happen. When the mechatronics is healthy, a DSG shifts fast and smooth. When it starts to fail, you can get jerky shifts, hesitation or a gearbox warning light. This owner saw the warning on the dash. The good news is that the gears and clutches themselves are often still fine.
A gearbox malfunction warning can come from several causes: a sensor fault, a fluid problem or the mechatronic unit itself. So we told the owner the car needed a proper diagnosis before we could confirm what needed fixing.
When the car came in, our team diagnosed it and confirmed a fault in the mechatronic unit. The fix was that unit, not a full gearbox overhaul, which is a much smaller and cheaper repair.
We messaged the owner with the finding and the price, and only started work once the owner said to go ahead.
The mechatronic unit is a documented weak point on several DSG and S tronic gearbox families. It packs sensitive electronics, solenoids and valves into one module that runs hot on the gearbox and works constantly. Over the years the electronics and the solenoids wear, and eventually one of them stops doing its job cleanly. That is when you get jerky shifts or a warning light.
Singapore makes it worse. Stop-start traffic means a dual-clutch box is shifting and creeping far more than it would on an open road, and the heat keeps the gearbox hot. Both of those age the mechatronics faster. A mechatronic fault does not always mean the whole gearbox is finished.
The fault was in the mechatronic unit, so the fix was that unit, not the whole gearbox.

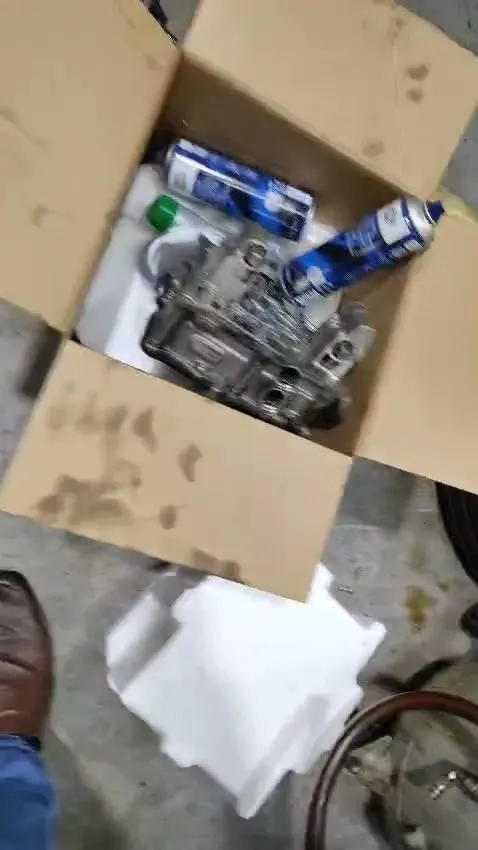

When the job was done we sent the owner a photo and a video of the old unit taken off the car. The reconditioned unit was already fitted. Our team tested the car and reported it good and ready for pickup.
What a DSG mechatronic unit replacement costs depends on the unit used and the car. On this A3 the owner chose a reconditioned unit, and the job went ahead once the fault was confirmed. The price covered the unit, the fluid and the coding.
That is far cheaper than a full new gearbox, which is exactly why diagnosis matters. If diagnosis shows only the mechatronics has failed, you replace the brain, not the whole box. We always diagnose first and confirm the fault before any work begins, so you are not paying for a rebuild you do not need.
A DSG mechatronics fault is not really something you can service away, because the electronics and solenoids wear with age and use. What you can do is keep the transmission oil changed on time, which helps the whole box last.
The more important part is acting early. The first jerky shift or the first time the gearbox warning light flickers on is the moment to get it checked. Caught early, a mechatronics fault is often just the unit, while the gears and clutches are still fine. Keep driving hard on a failing DSG and you risk dragging the clutches into it, which turns a unit replacement into a much bigger repair.
This Audi A3 (DSG gearbox mechatronic unit replacement) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For Audi, we use dealer-level ODIS diagnostics. We hold a 4.9★ rating from 1,836+ Google reviews.
WhatsApp us your car model, year, mileage and a short video of the jerk or warning light. We'll tell you what is likely wrong and what it costs before any work begins.
On this Audi A3 the job covered a reconditioned mechatronic unit with the coding and adaptation. It is far cheaper than a full new gearbox. We diagnose first and confirm the price before any work begins.
The mechatronic unit is the electro-hydraulic brain of a DSG gearbox. It controls the clutches and the shifts using electronics, solenoids and valves. Over the years those parts wear from heat and constant use, a failure pattern documented on several DSG and S tronic gearbox families. When it fails you can get jerky shifts or a gearbox warning light.
No. Very often the gears and clutches are still healthy and only the mechatronic unit has failed. A proper diagnosis tells us which it is. On this Audi A3 the fault was in the mechatronic unit, and replacing that unit was the fix, which is a much smaller repair than a full gearbox.
A new or reconditioned mechatronic unit has to be coded and adapted so it matches your specific car and the gearbox it is fitted to. Without coding the gearbox and the unit will not talk to each other correctly and the shifts will not be right. We code and adapt the unit, then test the car before handover.
On this Audi A3 the job covered the diagnosis, fitting the reconditioned unit, coding and adaptation, and a test of the car. We confirm the timeline once we have diagnosed the car and confirmed the fault.
