BMW 523i Timing Chain Noise: Cam Gear Problem Found, Timing Set Replaced

This BMW 523i was towed in with an engine noise. Our chief mechanic placed the sound at the timing. We opened it up, confirmed a problem with the cam gear, and replaced the timing set with cam gear using original parts.

Job completed: June 2026

The BMW 523i's timing chain and cam gears exposed at our Singapore workshop, with the cam gears marked

Job completed: June 2026. Last updated: October 2026. Written from our workshop job records and photos; technical details are generalised where the records do not confirm them.

CarBMW 523i (inline-six)
SymptomAn engine noise; our chief mechanic placed it at the timing
Fault foundA problem with the cam gear, confirmed once the timing was opened
Repair doneReplaced the timing set with cam gear using original parts, tested it, then serviced the car
PartsOriginal BMW parts
Time takenTimeline confirmed after strip-down
CostQuoted $2,580 before GST
WarrantyNo warranty term for this job; every item quoted and approved first

What the owner reported

The owner's BMW 523i had an engine noise, and the car needed a tow to reach us. It was lowered and had a body kit, so rather than risk it on a normal tow, we arranged the right kind of towing to bring it in safely.

A noise from the timing area is one of those noises you do not want to leave. The timing drive keeps the top and bottom of the engine in sync. If something in there is wearing, the sensible move is to look before it turns into a much bigger and more expensive problem.

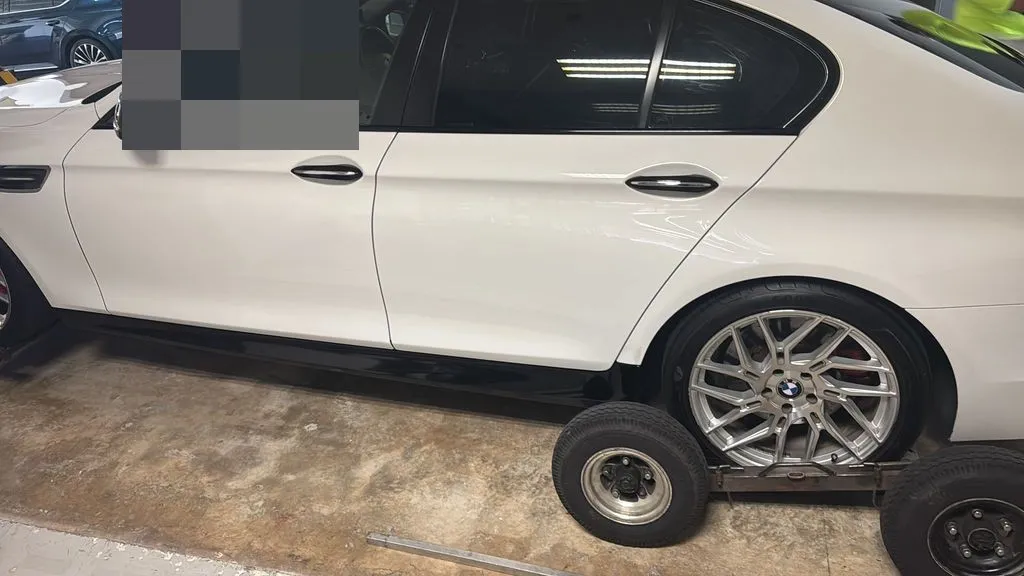

The lowered BMW 523i on wheel dollies for the tow to our workshop

The car

The car is a BMW 523i, a 5 Series with an inline-six petrol engine. This engine uses a timing chain rather than a belt, driven off the crankshaft, turning the camshafts through their sprockets, or cam gears. BMW also runs VANOS variable valve timing on the cams, which adds parts to the timing drive.

A chain is designed to last, but the gears, guides and tensioner around it still wear over the years. When a cam gear wears, the chain no longer runs cleanly on it, and you get a rattle. The noise tends to be loudest on a cold start and around the timing cover.

How we diagnosed it

Our chief mechanic listened to the engine first and placed the noise at the timing. Which parts needed replacing could only be confirmed by dismantling, so we gave the owner a rough budget first and the actual quote only after opening it up.

We then opened the timing and confirmed a problem with the cam gear. We sent the owner a photo and a video of the exposed timing, then checked everything again the next day before quoting the timing set with cam gear.

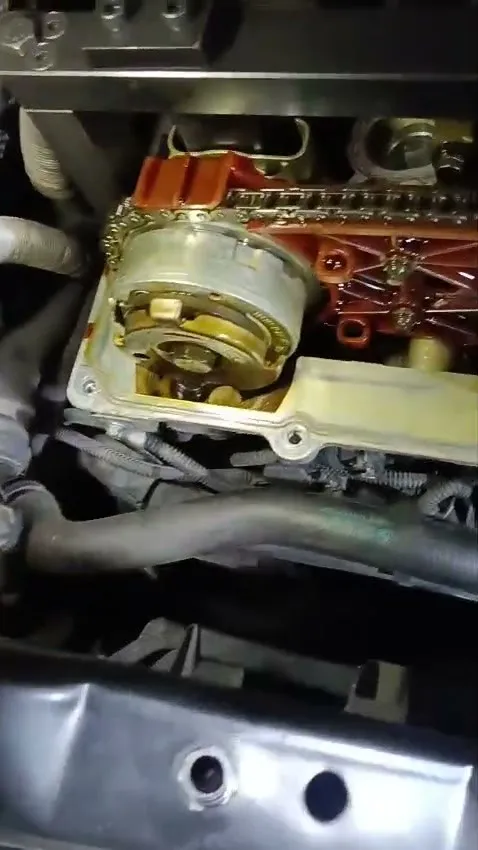

BMW 523i timing chain and a cam gear exposed during diagnosis

Why this happens on a BMW

Timing components wear with age, mileage and heat. On a BMW inline-six, the cam gears, chain guides and tensioner all live in hot oil and run constantly. Over many years and many thousands of kilometres, the gear teeth and the guides wear, and the chain develops a little slack. That slack is what you hear as a rattle.

Singapore conditions do not help. Heat keeps the oil hot, and stop-start traffic means the engine spends a lot of time idling, which is when a worn timing drive rattles most. Keeping to the right oil and oil-change intervals slows this wear, but on a higher-mileage car the timing parts are a known item to inspect when a rattle appears.

What we did

Once the owner approved, we replaced the timing parts properly rather than patching the noise.

  • Replaced the timing set with cam gear, using original BMW parts.
  • Reassembled the timing drive to the correct timing and tension.
  • Tested it after the repair, and the timing was good.

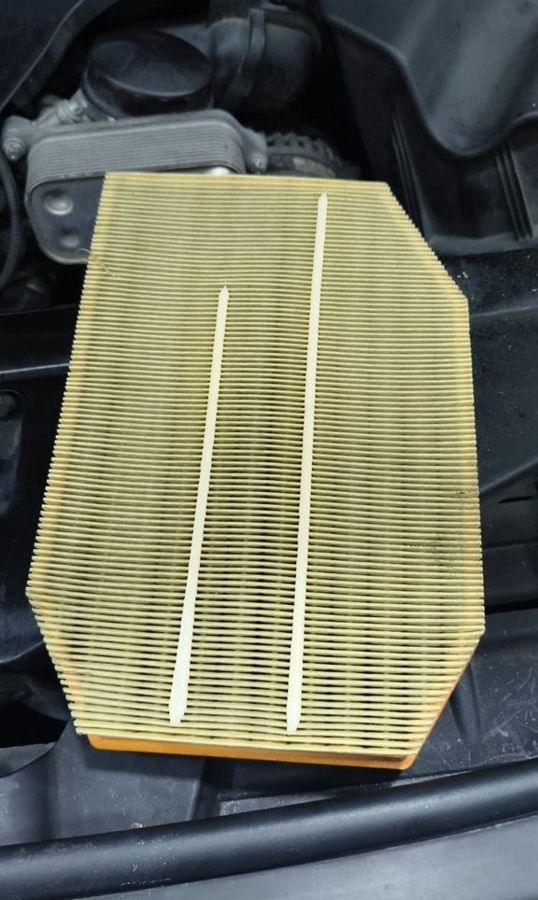

  • Carried out servicing while the car was with us.

We used original parts here, which the owner agreed to. The quote for the timing set with cam gear, original parts and labour was $2,580 before GST.

Before and after

Before

  • Engine noise, placed at the timing by our chief mechanic
  • A problem with the cam gear, confirmed with the timing opened

After

  • Timing set with cam gear renewed with original parts
  • Tested after the repair, timing good
  • Servicing done at the same visit

What a BMW timing chain and cam gear repair costs in Singapore

What a timing chain and cam gear repair costs depends on which timing parts are worn and whether you use original or OEM parts. This job was quoted at $2,580 before GST for the timing set and cam gear with original parts and labour.

What moves the price is how much of the timing drive needs replacing. A single worn cam gear with the chain still good sits at the lower end. If the chain, guides, tensioner and VANOS parts are all worn, the job grows. This is why we open and inspect the timing first, then quote for exactly what is worn, rather than replacing everything by default.

How to avoid a bigger repair

A timing rattle is an early warning worth acting on. Caught early, it is a timing set and gear job. Left alone, a worn chain or gear can jump or fail, and on many engines that means bent valves and a far bigger repair. The cost of looking early is small next to the cost of ignoring it.

The simplest prevention is correct oil and on-time oil changes. The timing chain and its gears rely on clean oil and good oil pressure. Dirty or low oil accelerates wear on the chain, guides and tensioner. If you hear a rattle from the front of the engine, especially on a cold start, have it checked rather than waiting to see if it gets worse.

About the workshop

This BMW 523i (Timing chain and cam gear repair) was handled at 1 Car Service, an independent workshop in Sin Ming AutoCity, Singapore. For BMW, we use dealer-level ISTA diagnostics. We hold a 4.9★ rating from 1,836+ Google reviews.

When to get a timing noise checked

Rattle or ticking from the engine? Get it checked early.

WhatsApp us your car model, year, mileage and a short video with the sound. We'll tell you what is likely making the noise and what it costs before any work begins. Every repair is road tested before you collect.

WhatsApp us - timing noise check

BMW 523i timing noise: common questions

How much does a BMW timing chain and cam gear repair cost in Singapore?

What another car needs depends on which timing parts are worn, so we dismantle and check first. This job was quoted at $2,580 before GST for the timing set and cam gear with original parts and labour. We inspect the timing first and quote for exactly what is worn.

Why does my BMW 523i rattle from the front of the engine?

A rattle from the front of the engine can come from the timing drive, such as a cam gear, a chain guide or the tensioner, but other parts at the front of the engine can make noise too, so it should be inspected. On this 523i, our chief mechanic placed the noise at the timing, and opening it up confirmed a problem with the cam gear.

Is it safe to keep driving with a timing rattle?

It is risky. A worn timing chain or gear can eventually jump or fail, and on many engines that can bend valves and turn a moderate repair into a major one. It is far cheaper to have the rattle checked and the worn timing parts replaced early.

Should I use original or OEM timing parts?

Both can work. On this 523i we quoted original BMW parts, and the owner went ahead with them. Original parts cost more and suit a car you plan to keep. OEM parts made to the same specification cost less. We can quote both, so you can decide what suits the car and how long you plan to keep it.

How long does the repair take?

On this BMW 523i the work included servicing. The time depends on how much of the timing drive is worn and needs replacing. We confirm the timeline once we have opened the timing cover and inspected the parts.
